Description
Description

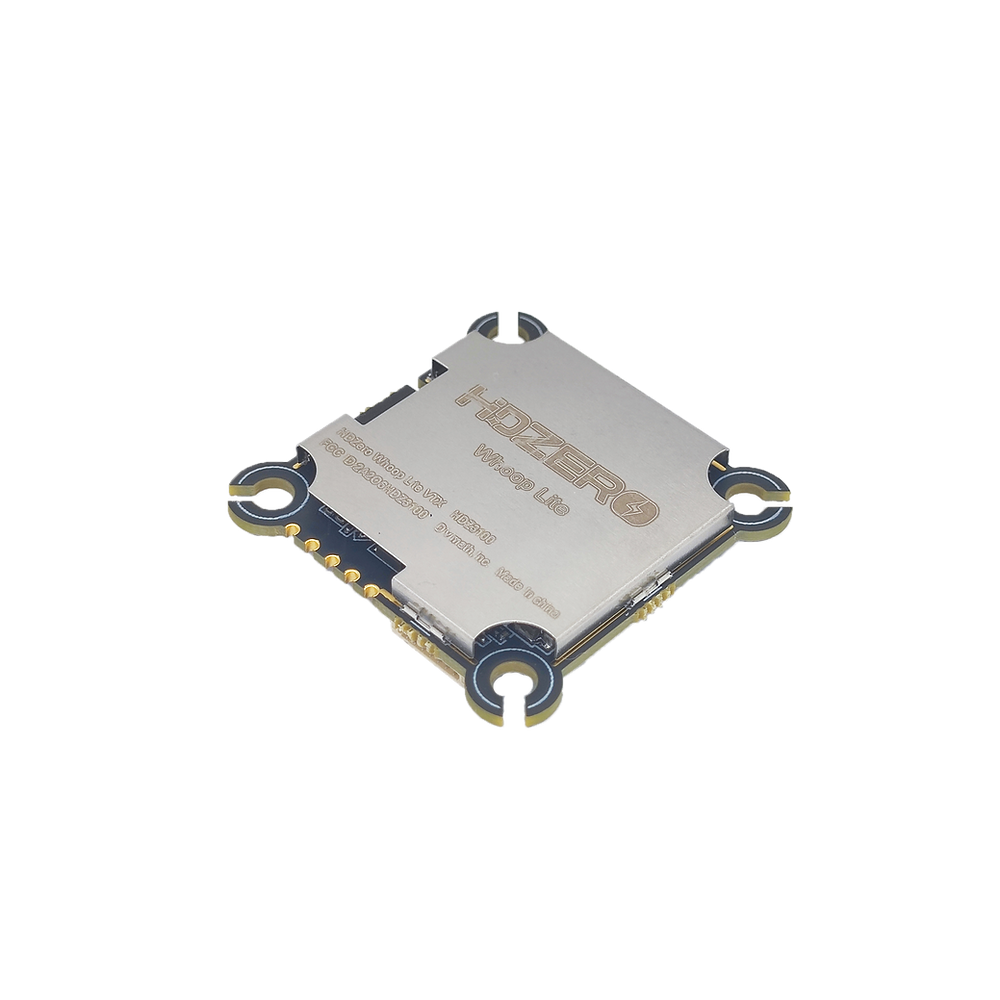

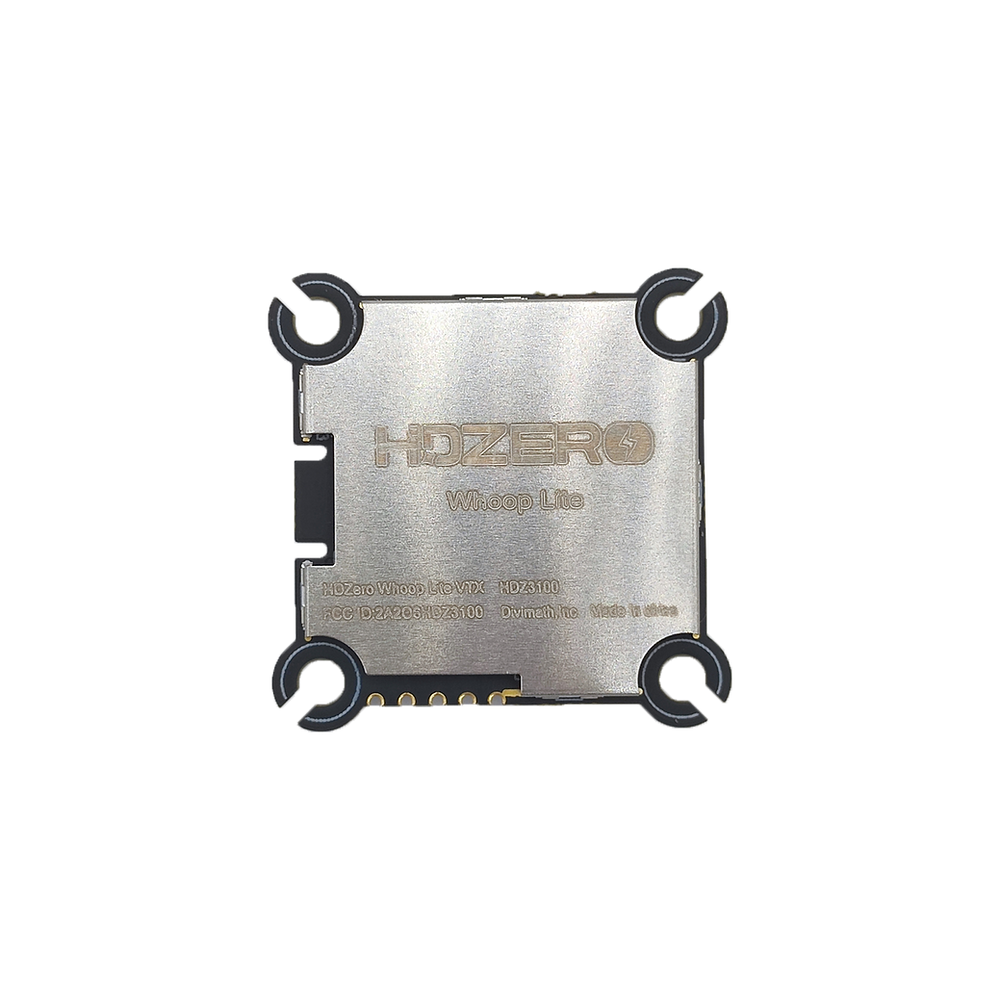

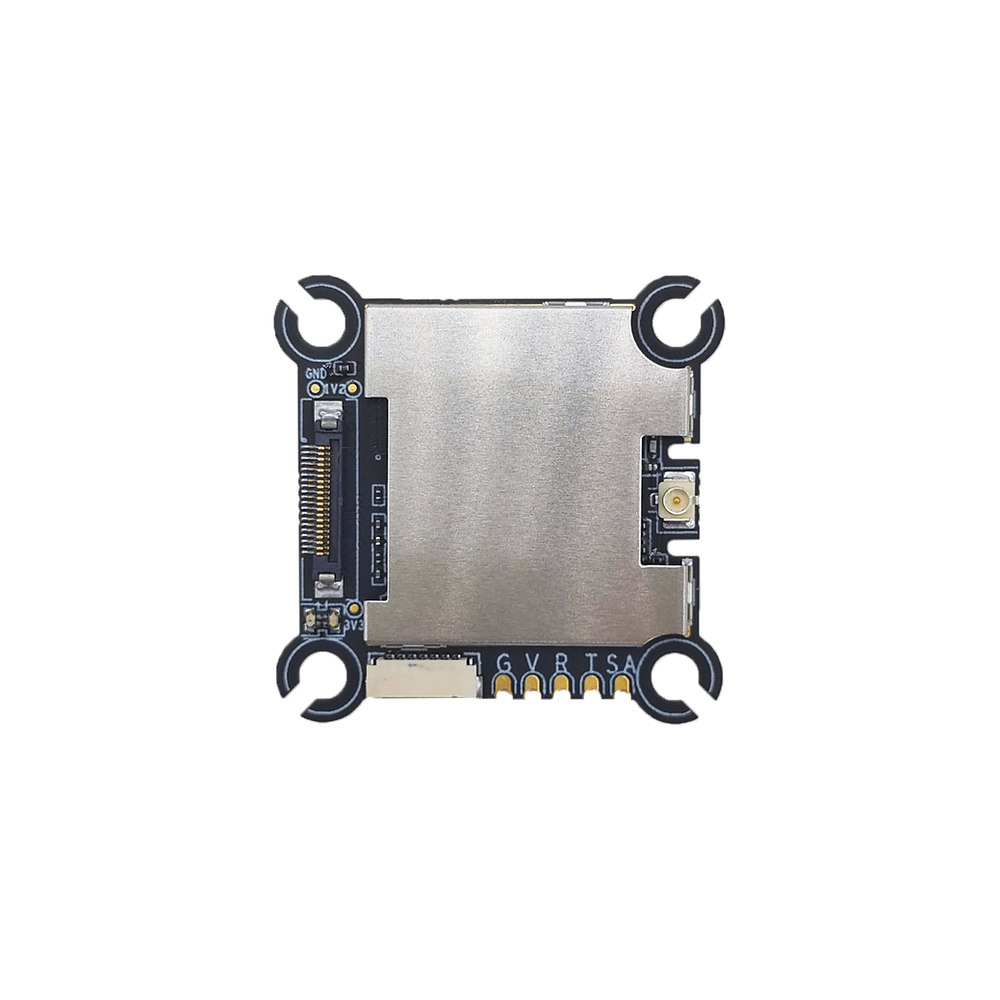

The HDZero Whoop Lite VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw on 5.8GHz. It is designed for racing. It works with the Shark Byte RX5.1 goggle module to receive video.
Specifications
|
Model: |
HDZero Whoop Lite VTX |
|
SKU: |
HDZ3100 |
|
Frequency: |
5.8G |
|
Resolution Default: |
1280*720@60fps |
|
RF power: |
25mw/200mw |
|
RF Connector: |
U.FL |
|
Interface: |
4 lane MIPI CSI YUV422 |
|
Video Connector: |
20 Position 0.30mm Pitch |
|
Size: |
32.4x32.5mm (29x29mm inner) |
|
Weight: |
4.5grames/4mm Thickness (w/o shielding) |
|
Power: |
1000mA@5V |
|
power input |
1S-3S |
|
Mounting: |
25.5x25.2 M2 soft mounting |
Includes
HDZero Whoop Lite VTX * 1
Power/Uart Cable * 5；
Zip ties * 2；
Rubber Grommet (M3 to M2) * 4;
