Description

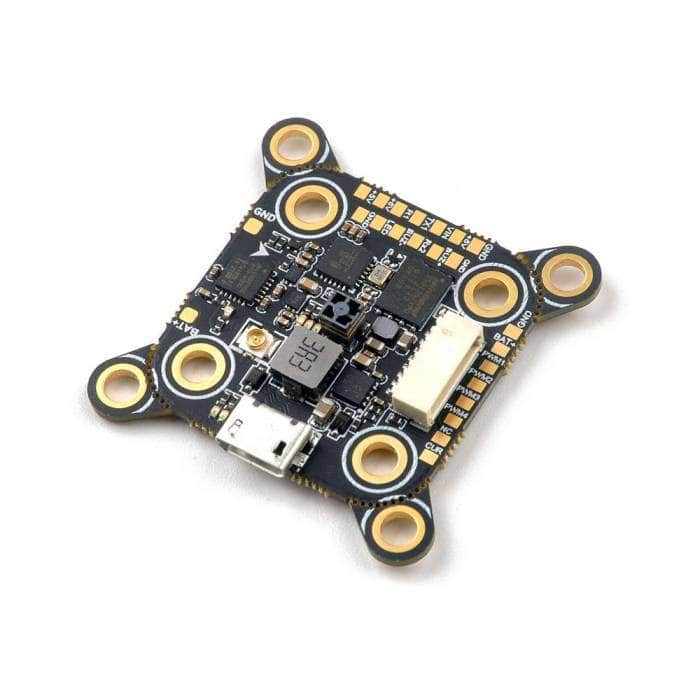

Designed with the help of the ExpressLRS team, the Happymodel Pancake AIO is a true all-in-one flight controller. The Pancake comes with an onboard 2.4GHz ELRS SPI receiver as well as a 5.8GHz OPENVTX. Mounting options include both 30.5mm and 20mm spaced holes. With a price point comparable to most AIOs without a VTX onboard, you're getting more out of your board at a lower cost. It is a great cost-effective FC replacement.
Specifications
-
- Input Voltage: 2-6S battery input

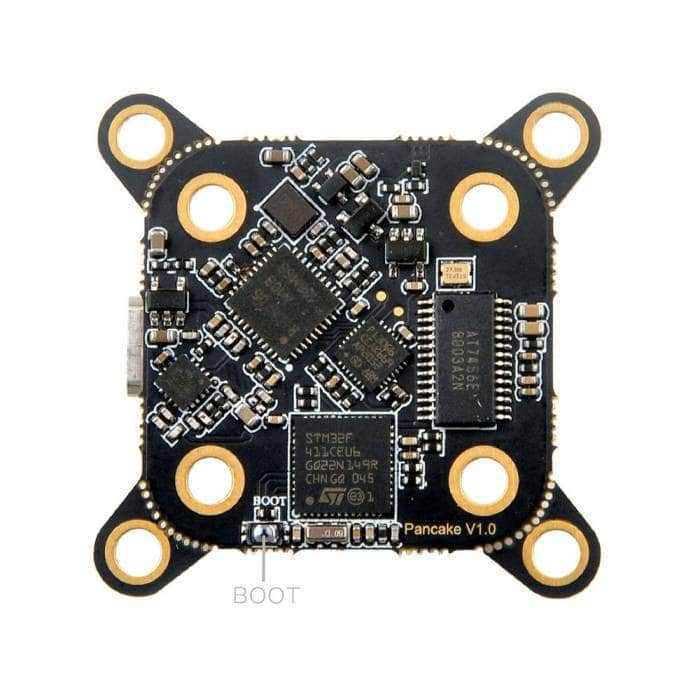

- MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
- Gyro: MPU6000 (SPI connection)
- Max Continuous Current: 12A
- OSD: Yes
- ESC Firmware: F_H_40_REV16_8.HEX
- Mounting Pattern: 20×20mm or 30.5×30.5mm
- Weight: 5.18g
- Firmware: OpenVTX
- Smartaudio v2.1
- PIT Mode support
- RCE Mode support
- Channels: 48ch
- Transmitting Power: 0/RCE/25mw/100mw/400mw
- Power supply: DC 5V
- Current (5v): <650ma (400mw)
- Antenna connector: U.FL
ELRS Version
- Packet Rate: 50Hz/150Hz/250Hz/500Hz
- ELRS Firmware Version: V2.0
- RF Frequency: 2.4GHz
- Antenna: SMD antenna
- Telemetry output Power: <12dBm

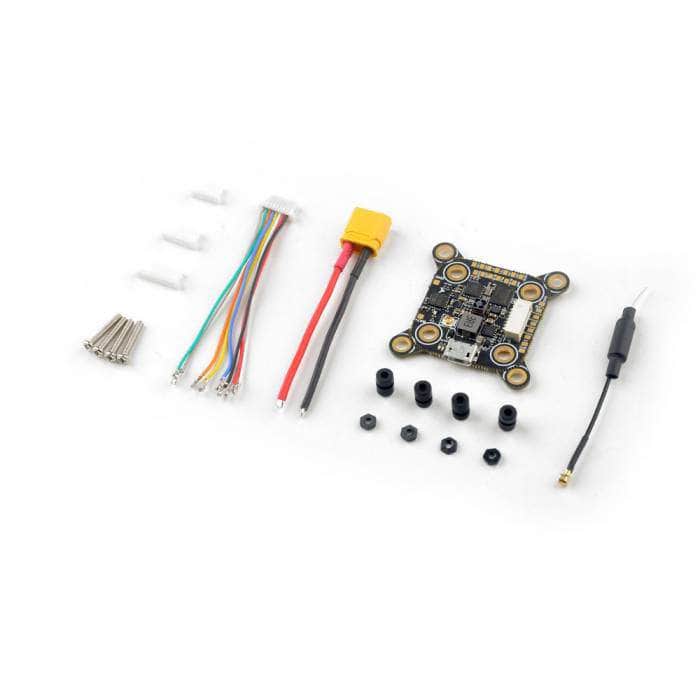

Includes
- 1x Happymodel Pancake 2-6S F4 AIO Whoop Flight Controller w/ ELRS RX & OpenVTX
- 1x XT60 Pigtail
- 1x Mounting Hardware
- 1x U.fl Antenna
- 1x Wiring Harness
