Walksnail Avatar HD Nano Camera / Mini 1S VTX Kit

WALKSNAILSKU: WG000341

Price:
Sale price$99.90 USD

Description

About this product

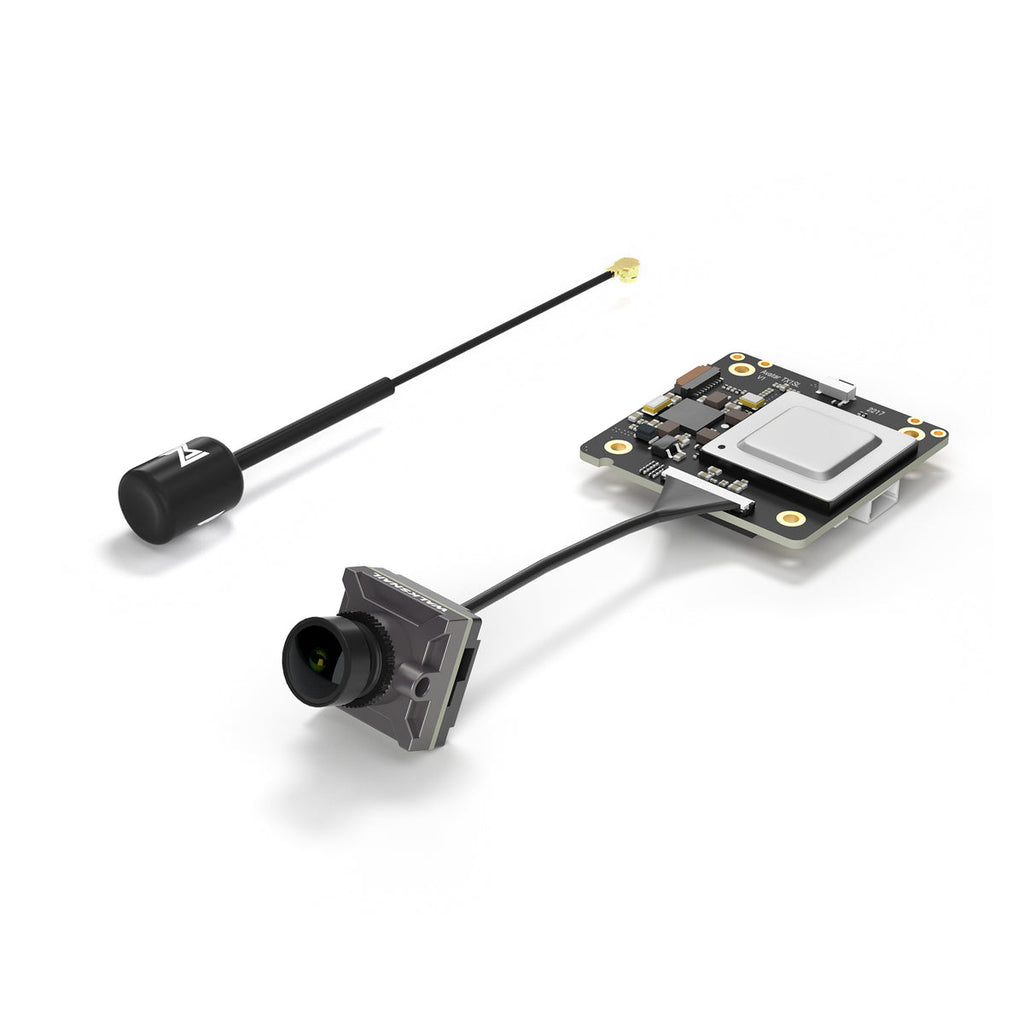

The Walksnail Avatar HD Nano Camera / Mini 1S VTX Kit features a nano digital camera, antenna,  and mini VTX that works with HD Goggles such as the Walksnail Avatar and Fat Shark HD Dominator. This mini HD VTX combo has lower latency than the competitor at an average of 22ms, with an onboard DVR, 5.8GHz frequency, 8Gb internal storage, and a switchable aspect ratio.

VIDEO: Walksnail Avatar Mini 1S VTX

Features

  • Lower latency than the competitor at an average of 22ms
  • 6.8g Lightweight Mini VTX great for the 75x Quad
  • Walksnail Avatar Mini 1S VTX Module
  • Walksnail Avatar Nano Camera
  • Built-in 8Gb Internal Storage
  • 1080p Screen Resolution
  • Switchable Aspect Ratio
  • Walksnail IPEX Antenna
  • 5.8GHz Frequency
  • Onboard DVR
  • Canvas Mode
  • 170° FOV
  • 3.1V-5V
Walksnail Avatar HD Nano Camera Mini 1S VTX Kit

Specifications

AVATAR HD NANO CAMERA

  • Resolution: 1080p 60FPS / 720P 120FPS / 720P 60FPS
  • Aspect Ration: 16/9 and 4/3 Switchable
  • Minimum Illumination: 0.001Lux
  • Shutter Style: Rolling Shutter
  • Dimensions: 14x14x17mm
  • Cable Length: 90mm
  • Image Sensor: 1/27"
  • Field Of View: 170°
  • Aperture: F 2.0
  • Lens: 2.1mm
  • Weight: 3.5g

AVATAR MINI 1S VTX MODULE

  • Transition Power: FCC<25.5dBm / CE <14dBm / SRRC <20dBm / MIC <25dB
  • I/O Interface: JST1.0 x 6 (Power In) to JST1.0 x 4 (USB)
  • Operational Frequency: 5.725-5.850GHz
  • Operating Temperature: -20° to 40°c
  • Supported FC Firmware: Betaflight
  • Video Resolution: 1080p / 720p
  • Dimensions: 33x33x6.5mm
  • Antenna Connector: IPEX
  • Bitrate: 25mbps/50mbps
  • Mounting: 25.5x25.5mm
  • Latency: 22ms Average
  • Internal Storage: 8GB
  • Input Voltage: 3.1-5V
  • OSD: Canvas Mode
  • Weight: 6.8g
  • Channels: 8

WALKSNAIL AVATAR VTX ANTENNA

  • Radiation Efficiency: >= 98%
  • Bandwidth: 5.6-5.9GHz
  • Gain: 2dBi Average
  • Polarization: LHCP
  • Connector: IPEX
  • Length: 90mm
  • VSWR: <=1.4
  • Weight: 1.5g

Includes

  • 1x Walksnail Avatar HD Nano Camera w/ Avatar Mini 1S VTX
  • 1x Walksnail Avatar IPEX Antenna
  • 1x 6-Pin Power Cable
  • 2x M2 4mm Screws
  • 1x 4-Pin USB Cable
