Description
The Polar is here! With a larger, more sensitive image sensor collecting more light thanks to a larger aperture, this camera a DJI night flyer's dream! Check out the new camera performance in the videos below...
Video below shows Polar on Vista:
Features
- Fantastic Low Light Performance
- 720p 60FPS recording to DJI Goggles
- New Lightweight Polar Antenna
Specifications

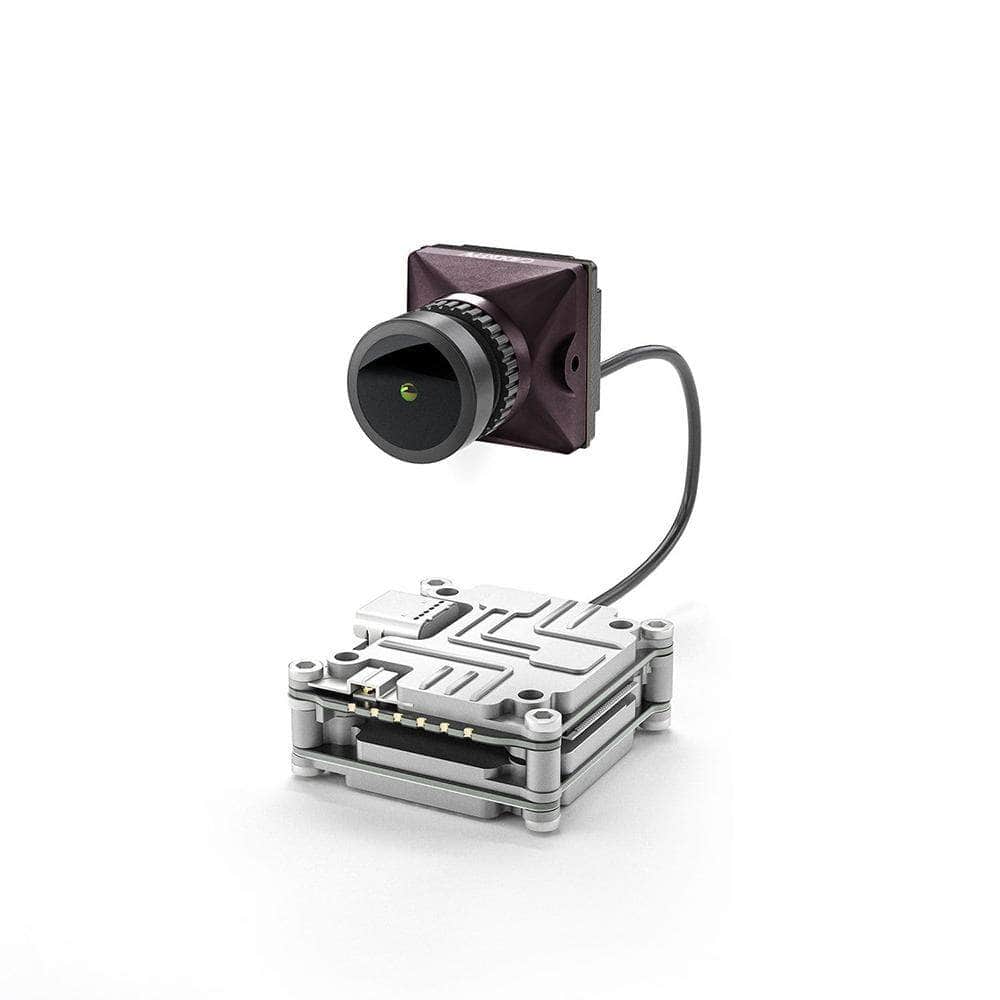

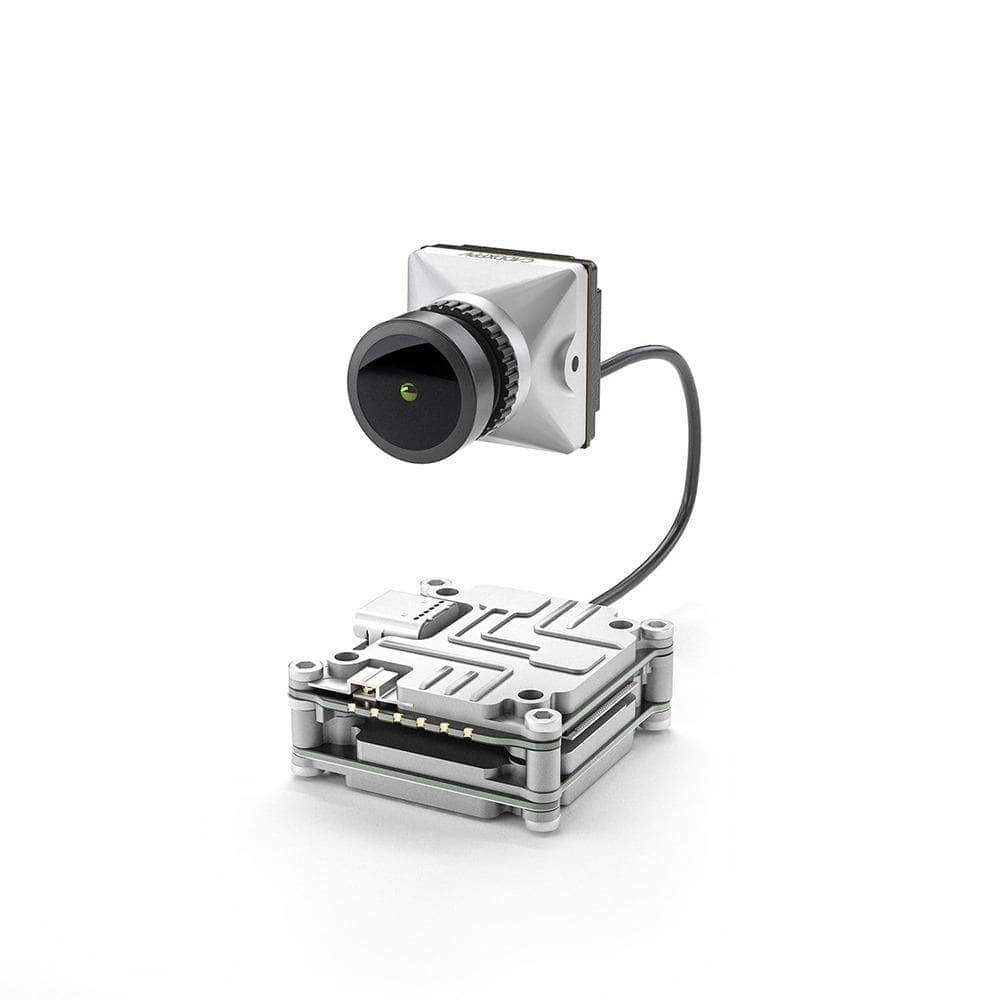

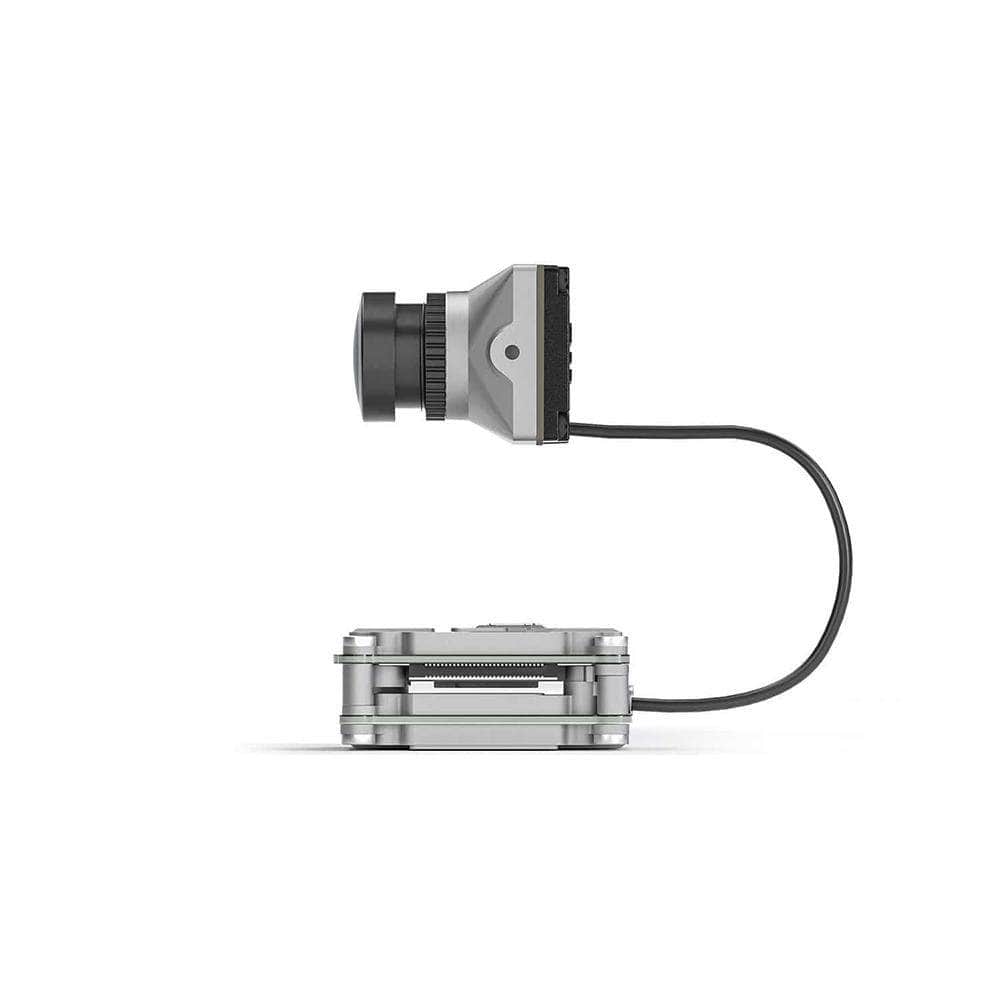

Polar Camera
- Sensor: 1/1.8" Starlight CMOS
- Min. Illumination: 0.00003Lux
- Shutter: Rolling Shutter
- ISO: 100-25600
- S/N Ratio: >65dB (AGC Off)
- Lens: F1.6 8MP
- FoV: 162° Diag.
- Aspect Ratio 16:9
- Image Menu: Supported
- Dimensions: 24x19x19mm
- Weight: 9g
Vista Module
- Input Voltage: 7.4-26.4V
- Output Power: 25mW / 200mW / 500mW / 700mW
- Dimensions:
- Vista: 30x29x13mm
- Camera: 24x19x19mm
- Coaxial Cable: 120mm
- Antenna: 105x11.2mm
- Weight: 28g (+1.5g for Antenna)
Polar Antenna
- Radiation Efficiency: 98%
- Avg. Gain: 2dbi
- VSWR: <1.4
- Dimensions: 105x11.2mm
- Weight: 1.5g

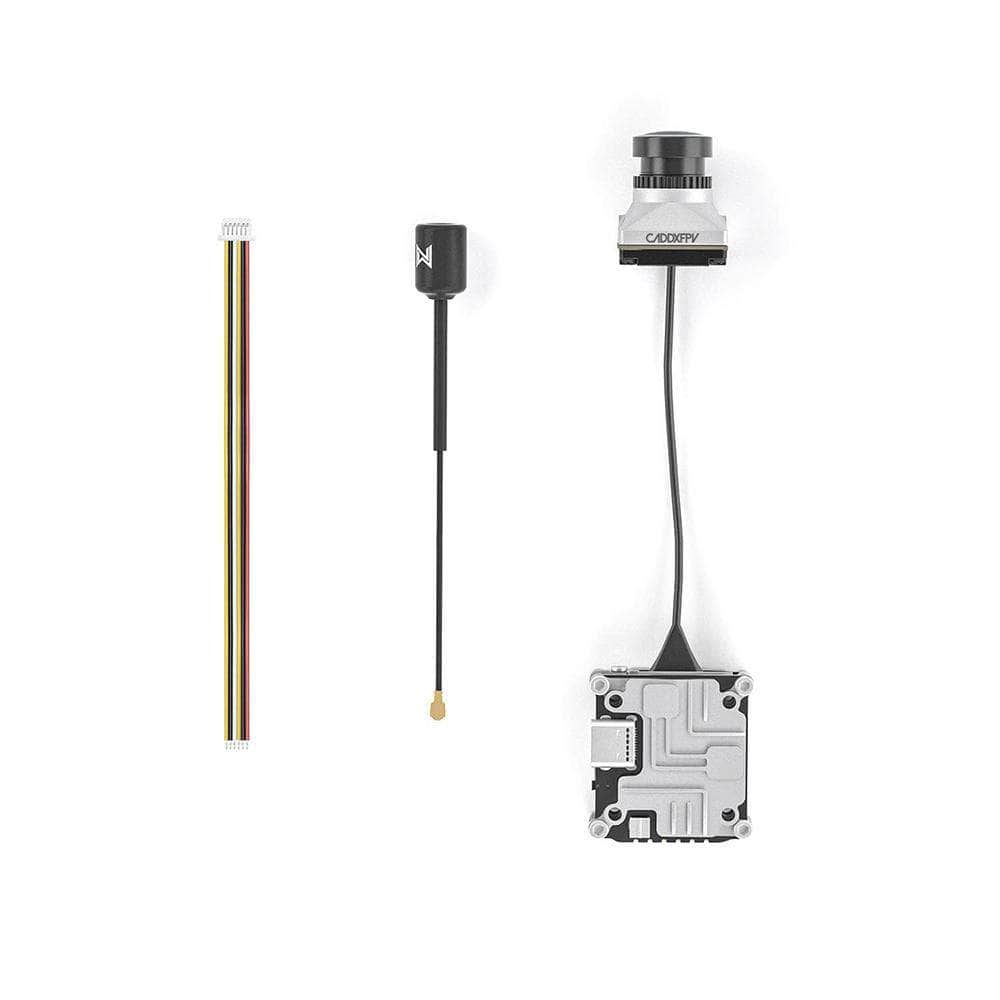

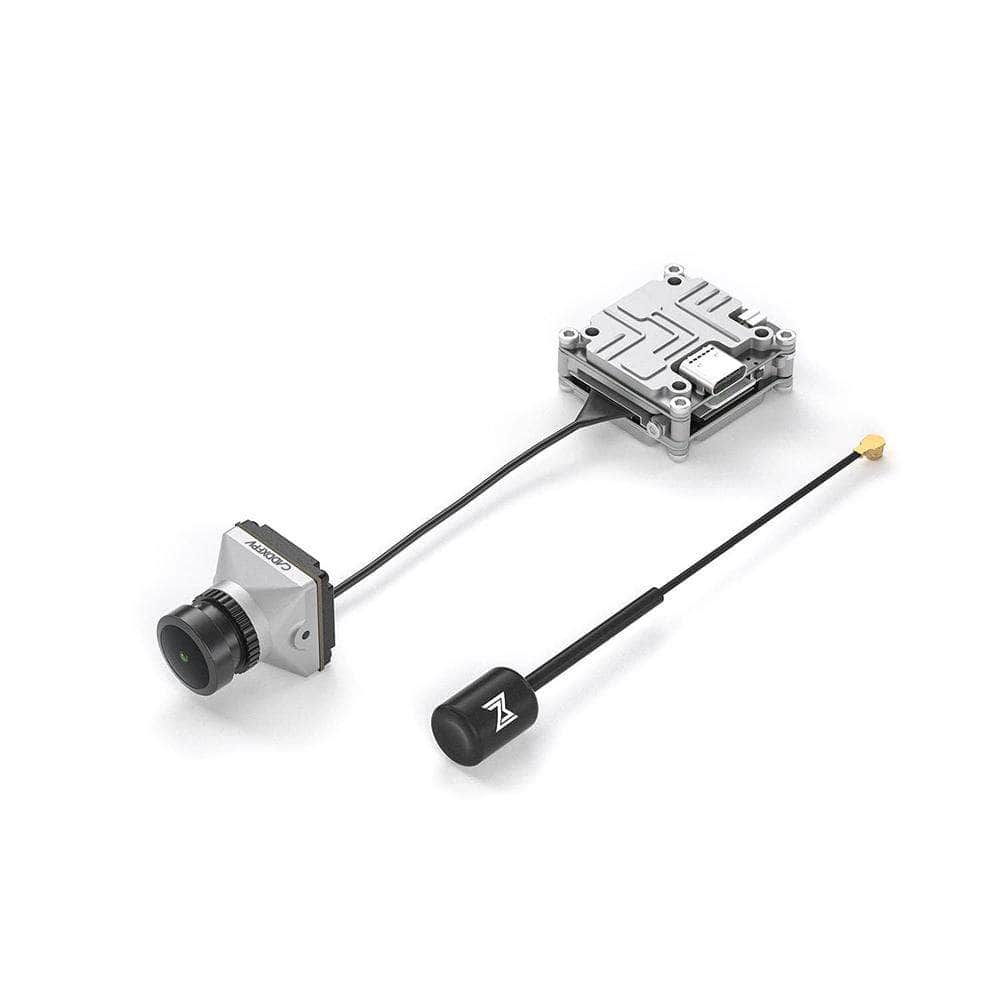

Includes
- 1x Caddx Polar Starlight Camera
- 1x Caddx Vista Module
- 1x 12cm Coaxial Cable
- 1x Polar Antenna
- 1x 3in1 Cable
- 1x Menu Cable
- 1x Hardware Set
