Description
Summary:

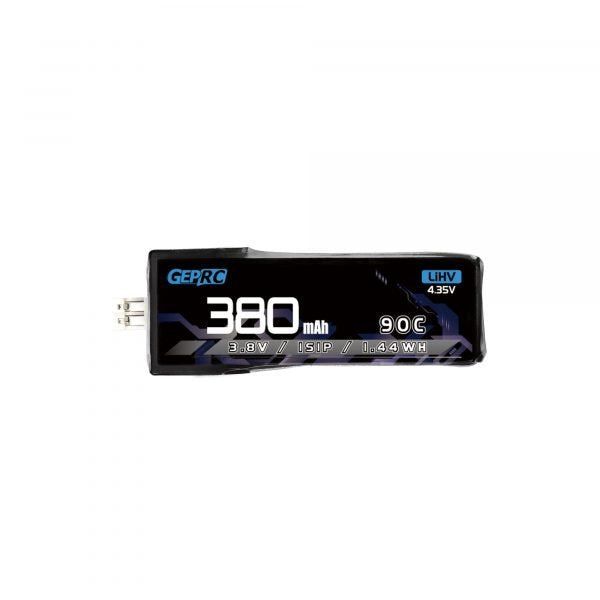

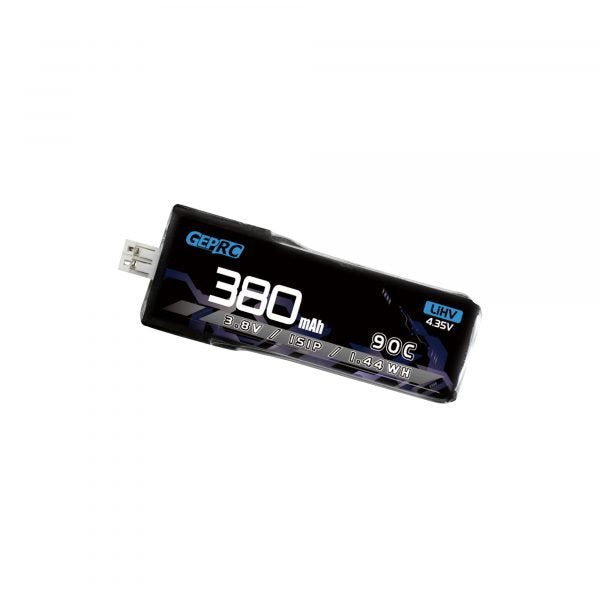

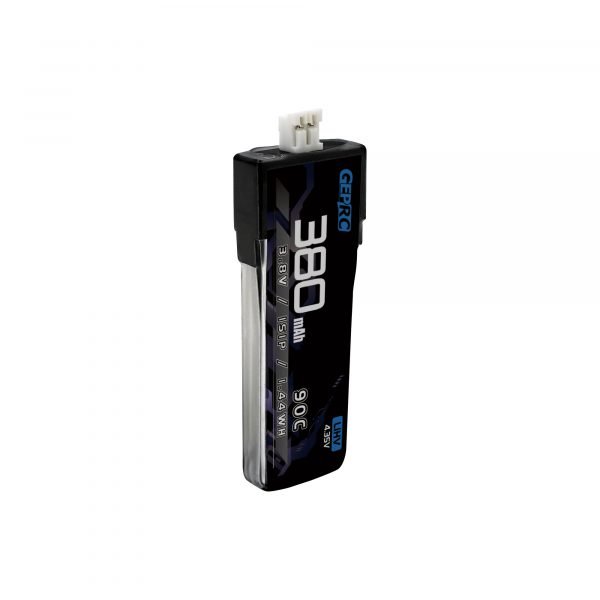

GEPRC 1S 380mah 3.8V LiHV High-voltage lithium battery is specially designed for Micro Indoor FPV, with small volume and high voltage characteristics. It plays a key role in reducing weight and increasing flight time of Micro Quadcopters. Using High-performance & Low resistance cell, it can discharge at 90C continuously, providing sufficient power for flight. GEPRC LiHV 1S battery’s USB charging board is used for charging, It’s extreme convenient and High-efficiency!
The full charge voltage of the battery is 4.35V, when the flight voltage drops to 3.6V, the battery needs to be charged in time!
Specifications:
Model: GEPRC 1S 380mAh 90C

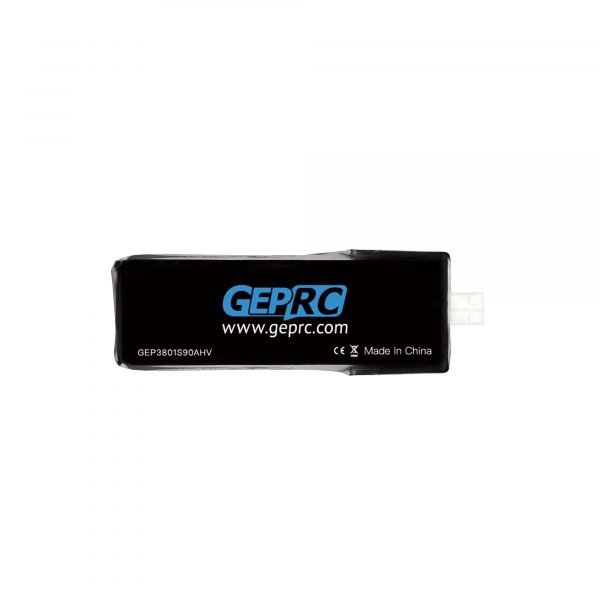

Model Number: GEP3801S90AHV
Capacity: 380mAh
Configuration: 1S1P
Nominal Voltage: 3.8V
Type: Li-HV
Watt: 1.44WH

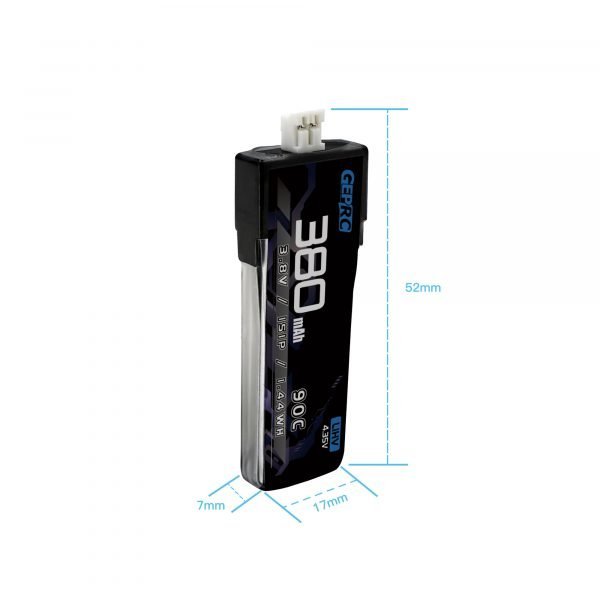

Dimension: 52*17*7(mm)

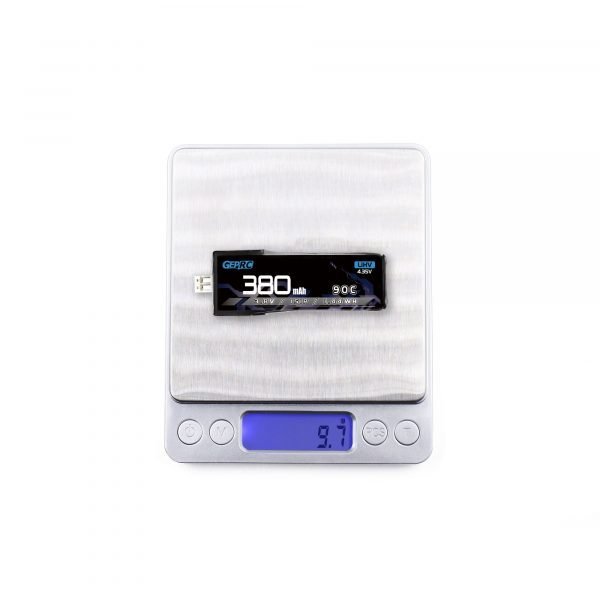

Weight: 9.7g
Max cont. discharge (C-rate/current): 90C
Max Burst (C-rate/current): 180C
Charge Connector: PH2.0
Discharge Connector: PH2.0
Recommended charging current: 1C
Maximum charging current: 3C
Working Temperature Charge: 0-45°C
Working Temperature Discharge: -20-60°C
Working Humility: 65%RH +/-20%
Storage Temperature: -20-35°C
Storage Humility: 65%RH +/-20%
Application: Toys,Boats,Quadcopter
Feature:
- High capacity
- Super lightweight
- Amazing discharge rate
- Long lasting and durable
Include：
2 x GEPRC 1S 380mAh 90C Batteries
Warning:
Please read the battery parameters and instructions in detail before use.
Please don’t charge the battery unattended.
Do not overcharge (select the correct battery type before charging, the full charge voltage of single cell of LiPo battery is not more than 4.2V, and the full charge voltage of single cell of LiHV battery is not more than 4.35v).
Do not over-discharge (the single-cell discharge voltage of LIPO and LiHV batteries cannot be lower than 3.5V, over-discharging will damage the battery and cause swelling).
Don’t place the battery close to open flames or fire sources.
Keep the battery away from flammable materials when charging
Please carefully check the battery voltage and capacity before charging and use
It is forbidden to reverse the positive and negative poles of the battery (to avoid short circuit)
Do not directly touch the leaking battery. If you accidentally touch the electrolyte, please wash it with clean water immediately. If it is serious, please consult a doctor immediately.
Please dispose of the ruptured battery in time and do not reuse it
If you need to store the battery for a long time, please maintain the battery voltage at a single-cell 3.80V-3.85V. Please ensure that a charge-discharge activation is performed within 3 months to maintain the stability of the battery.
It is forbidden to disassemble and reassemble the battery or change the wiring (it is easy to cause short circuit and burning).
If a collision occurs during use, please remove the battery. Check carefully whether the battery and connector are normal.
Please charge at a temperature of 0-45℃ (make sure the charging environment is cool and ventilated, the battery will generate a certain amount of heat after use and during the charging process, and the battery that has just been used is allowed to stand and wait for the temperature to be below 45℃ before charging).
