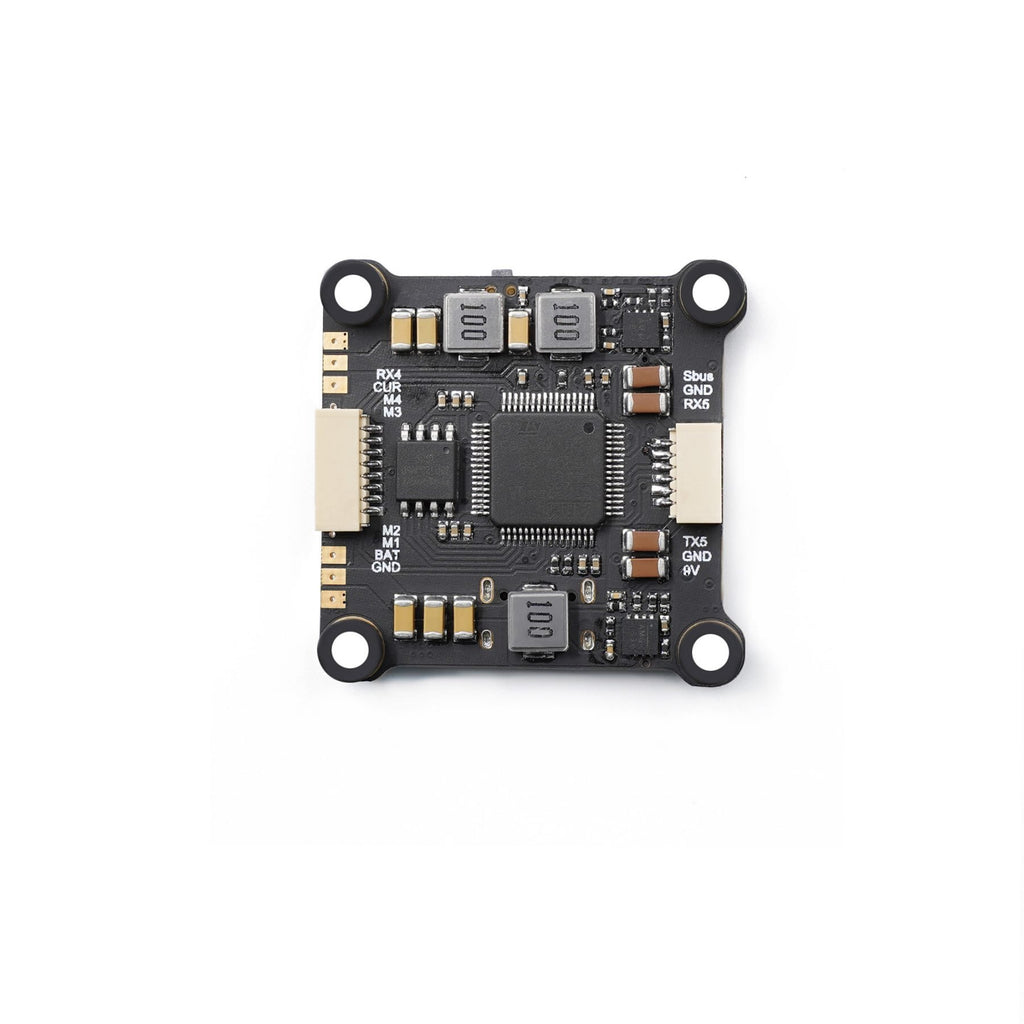

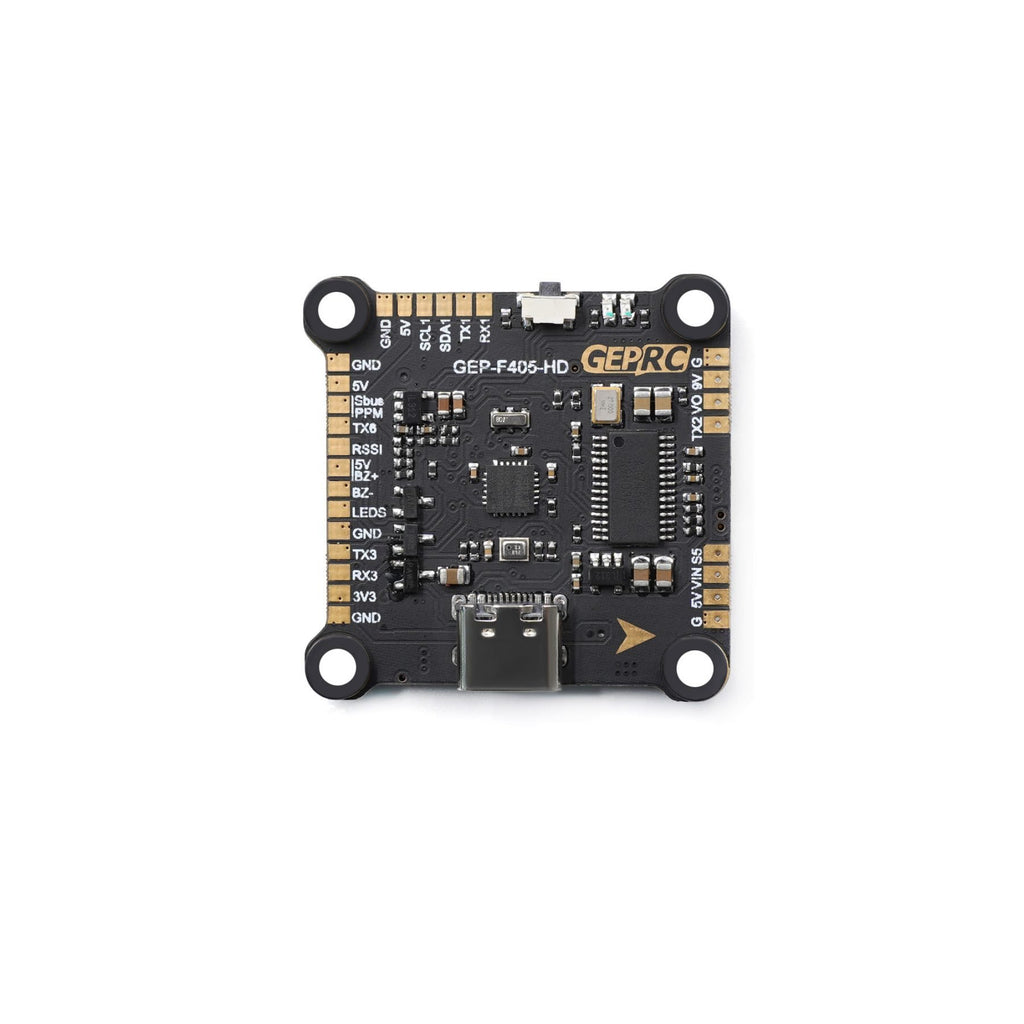

GEPRC GEP-F405 HD Flight Controller For RC DIY Tinygo Racing Drone Electronics For FPV Parts Accessories Gyroscopes and Flight Stabilizers for Model Aircraft

• MCU: STM32F405

• IMU: MPU6000(SPI)

• BlackBox: 16Mb onboard Flash

• Integrated LC Filter

• Type-C USB interface

• The directly connected DJI Digital FPV System

• Simple installation method, compact space

• Support:Sbus,PPM,CRSF,DSMX,iBus

Specifications:

• MCU: STM32F405

• IMU: MPU6000(SPI)

• DJI FPV Air Unit Supported.

• BlackBox: 16Mb onboard Flash

• Type-C USB interface

• OSD: BetaFlight OSD w/ AT7456E chip

• Baro：BMP280

• BEC Output: 5V,9V BEC

• Integrated LC Filter

• Firmware target:GEPRCF405

• Size: 36x36mm board, φ4mm with Grommets φ3mm

• Power input: 3-6S LiPo

• 6x UART

Receiver Support:

1. Frsky XM/XM+/R-XSR

2. Futaba Receiver

3. DSM/DSMX

4. FlySky Receive

5. TBS Crossfire Receiver

6. AC900

7. Most receivers that support SBUS
