Description

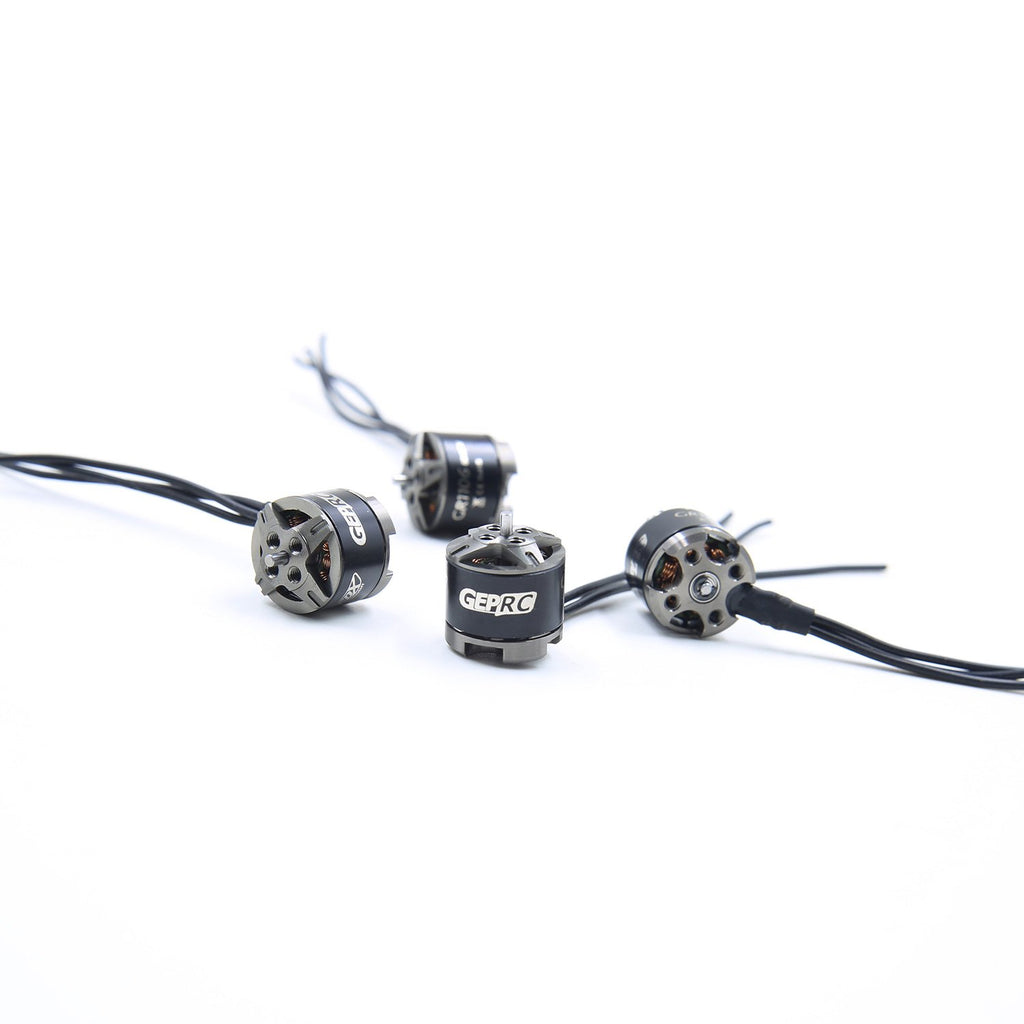

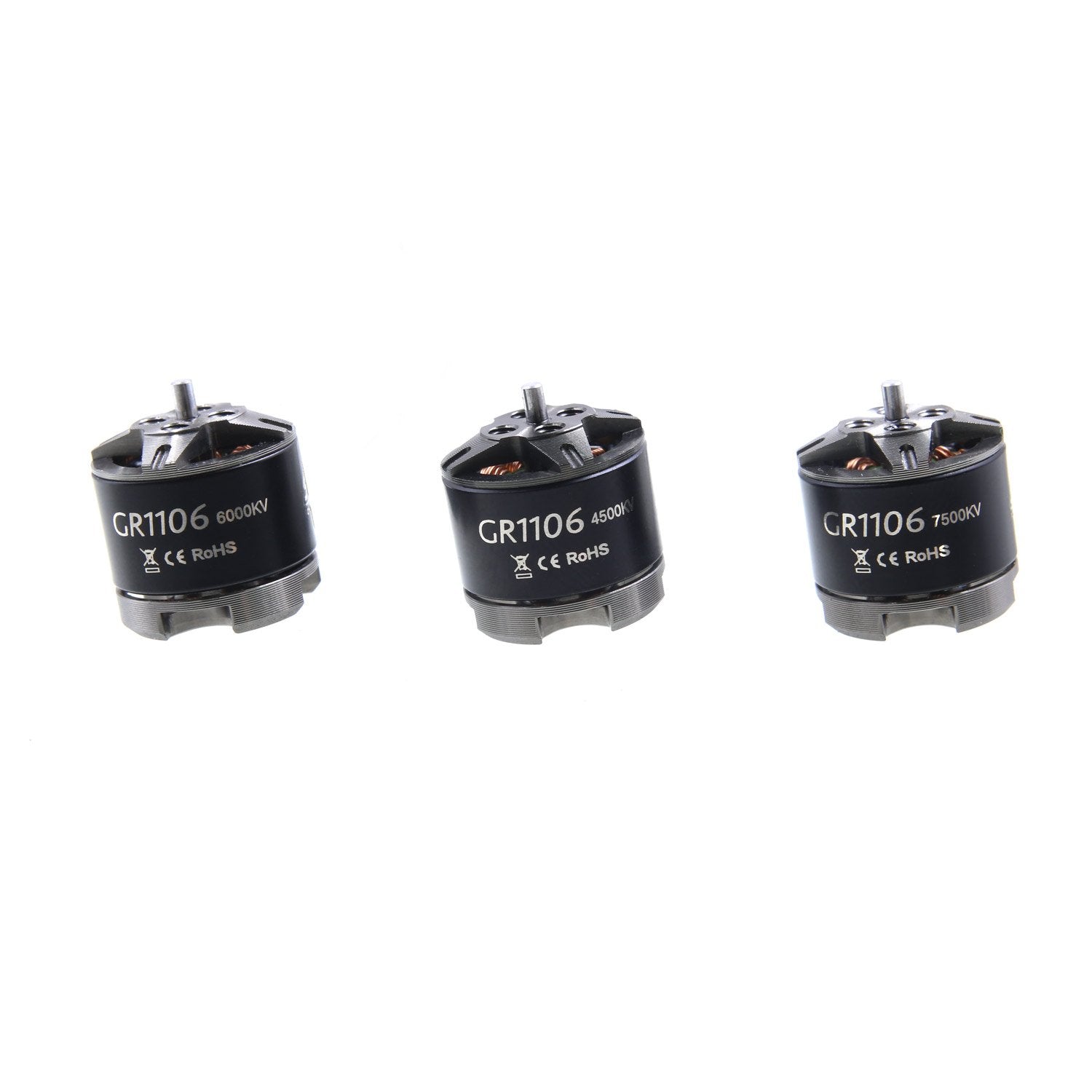

GEP-GR1106 is a small motor designed by our GEPRC team for interior design, which have three kv choice. It’s 4500kv, 6000kv, 7500kv. Each KV has its own usage and collocation.4500kv is recommended to use 2-3 inch propeller, 3-4s battery.6000kv is recommends 2-2.5 inch propeller, 2-3s battery.7500kv is recommends 1.9-2.5 inch propeller, 2s battery.
Specifications：
- KV: 4500 / 5000/6000/7000KV
- CONFIGURATION: 9N12P
- STATOR DIAMTER: 11mm
- STATOR LENGTH: 6mm
- SHAFT DIAMETER: 1.5mm
- MOTOR DIMENSION(DIA.*LEN): Φ14.2*14mm
- IDLE CURRENT (A): ≤1.6A@6.4V / ≤1.4A@6.4V / ≤ 0.6A@7.4V
- NO.OF CELLS(LIPO): 2~3S / 2~3S / 3~4S
- MAX CONTINUOUS POWER: 94w / 183w /153w
- INTERNAL RESISTANCE: 120mΩ / 170 mΩ / 266 mΩ
- MAX CURRENT(180S): 11.72A / 15.27A / 9.59A
- MAX EFFCIENCY CURRENT: 3.5 / 3.57 / 3.8
- ROTOR: N50SH arc magnets
- BEARINGS: NSK
- BASE CASING: Al6061
- WIRE AWG: 28AWG
- WEIGHT: 7.1g
Features:
- Full-body high precision CNC machining, high accuracy, high strength
- The N50SH magnetic material is adopted to ensure the torsion and high temperature
- The maximum pulling force through 340g+
- Japan NSK bearing, ensure the smooth running of the motor
- Weight only 6.8g (excluding wire)
