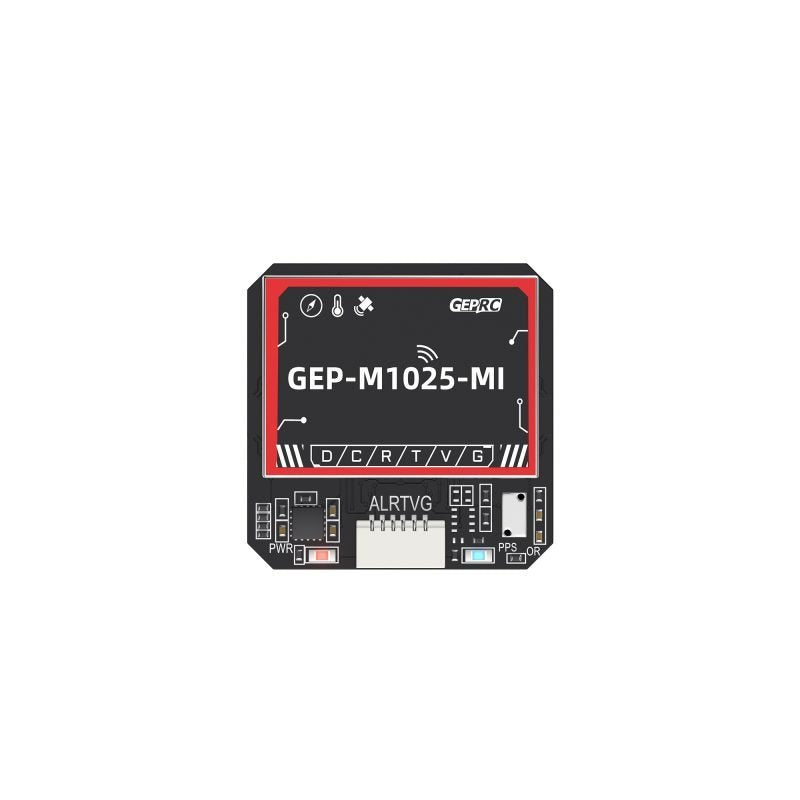

GEPRC GEP-M1025 Series GPS Module

Summary

The GEPRC GPS series product line has been fully upgraded. The GEP-M1025 series of GPS products based on u-blox M10050 chip and using 25*25mm antenna are now launched.

The GEP-M1025 series GPS positioning module uses u-blox’s M10 chip solution and supports GPS+BDS+Galileo+QZSS+SBAS joint positioning, up to 32 satellites. 25*25mm ceramic antenna provides better reception capabilities. Built-in Flash chip and Farad capacitor can save configuration parameters and quickly hot start.

Optional QMC5883L/IST8310 magnetometer and DPS310/MS5611 barometer. A variety of matching solutions provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV quadcopters , multi-rotor, fixed wing and other model products.

Feature

1. u-blox M10 series chip
2. GPS+BDS+Galileo+QZSS+SBAS joint positioning
3. Fast positioning speed,Up to 32 satellites
4. Stable connection quality
5. 25*25mm antenna size, better signal receiving performance
6. Built-in Flash chip and Farad capacitor
7. Onboard indicator light, easy to use
8. Optional integrated magnetometer+barometer, more collocation scheme

Includes

1 x GPS module

1 x terminal wire

1 x GPS module instruction manual

1 x GEPRC sticker

1 x heat shrink tubing
