Description
Summary

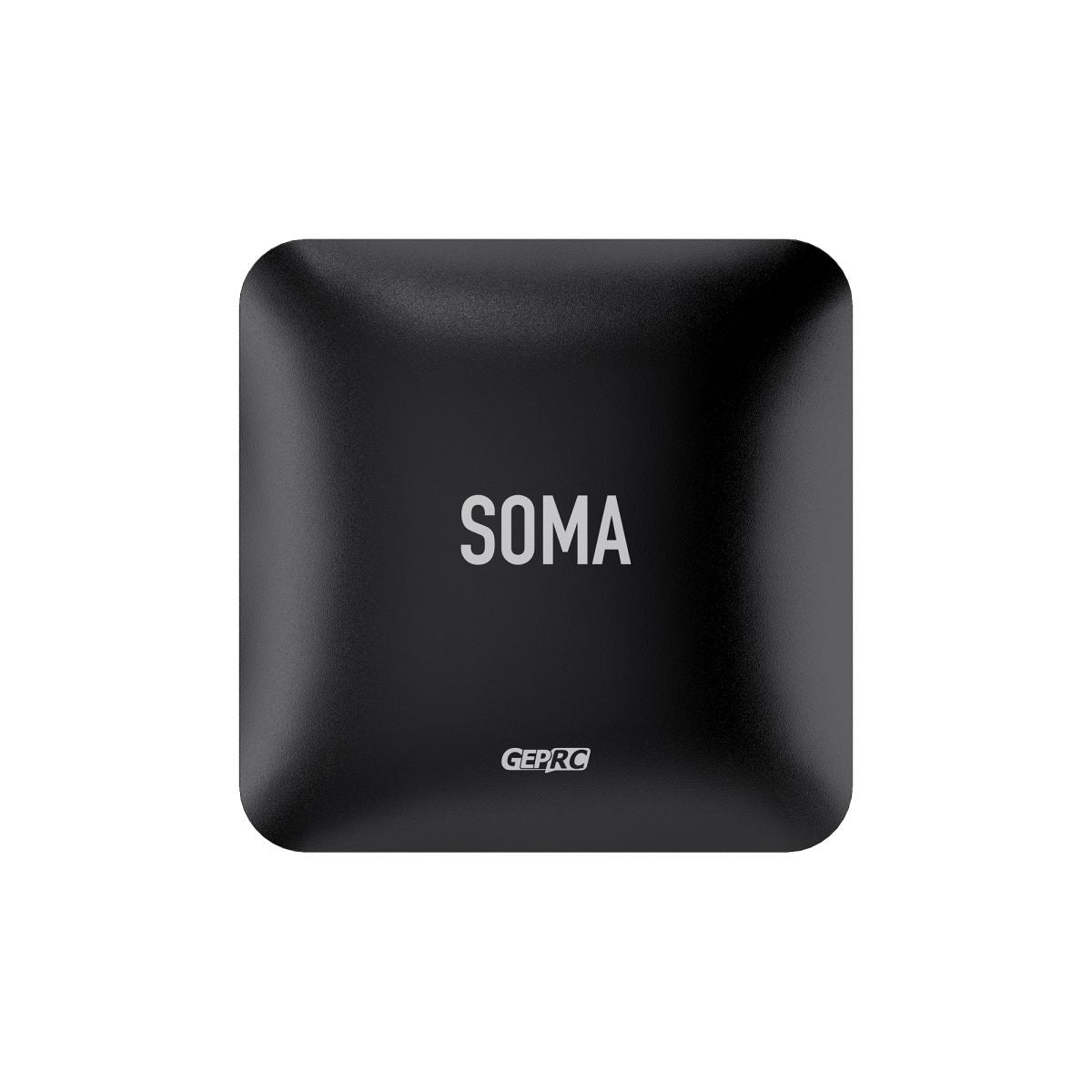

The GEPRC SOMA 3.3G Directional Flat-Panel Antenna features a dual-layer PCB RF design, offering a high gain of up to 17dBi and a low average VSWR of 1.47, ensuring excellent signal reception.
It’s compatible with various brackets and is built with a durable 1/4 aluminum alloy base. The antenna features a sleek, high-tech design, with an integrated injection-molded casing for superior structural integrity
Features
- Smooth, ultra-thin design.
- Low VSWR, high gain directional antenna, up to 17dBi.
- 1/4 aluminum alloy base, compatible with various brackets.
- High-quality SMA connector for lower impedance and better transmission efficiency.
- Each antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standards
Specifications
- Model: GEPRC SOMA 3.3G Directional Patch Antenna
- Center Frequency: 3.3GHz
- Bandwidth: 3.0GHz~3.5GHz
- Polarization: RHCP
- Gain: 17dBi
- Axial Ratio: ≤3
- SWR：≤1.47
- Radiation Efficiency: 86%
- Cross polarization suppression: -25dB
- Overall Dimension: 203.5mm x 203.5mm x 20mm
- Antenna Weight: 293g
- Enclosure Material: ABS
- Connector Type: SMA (external thread, internal hole）
Includes
1 x SOMA 3.3G Directional Patch Antenna
