Description
Summary

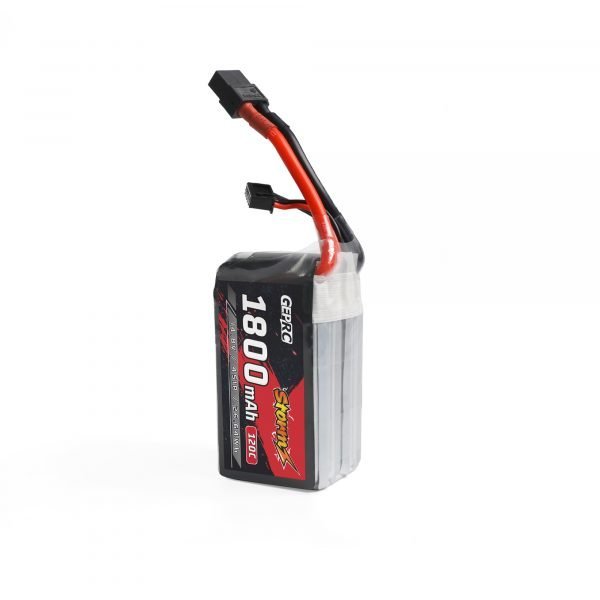

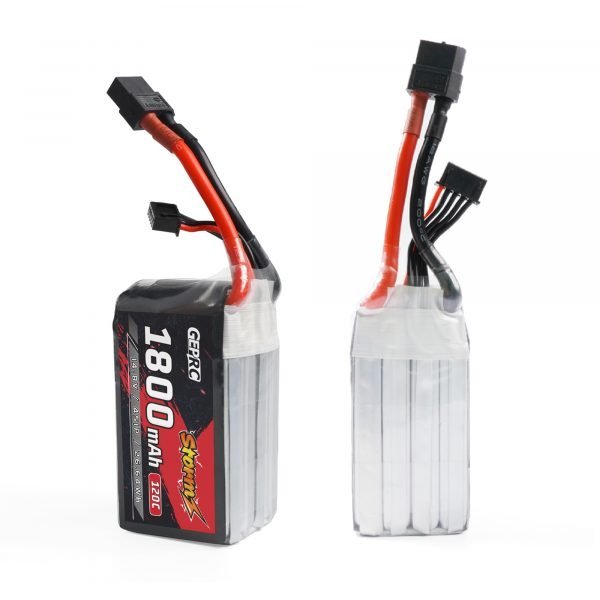

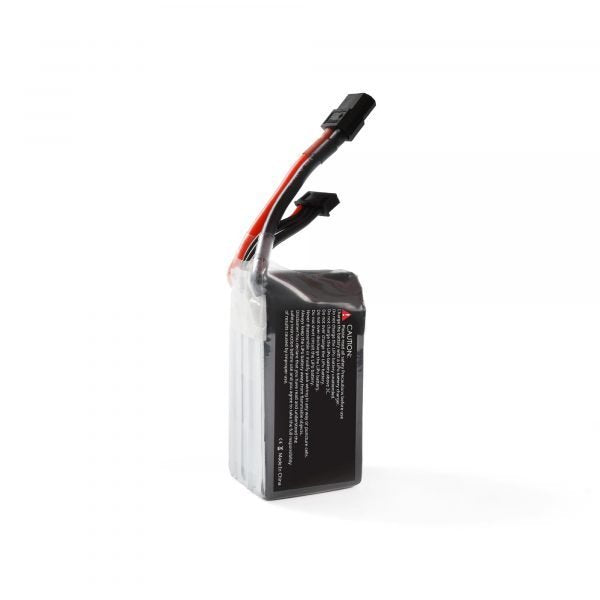

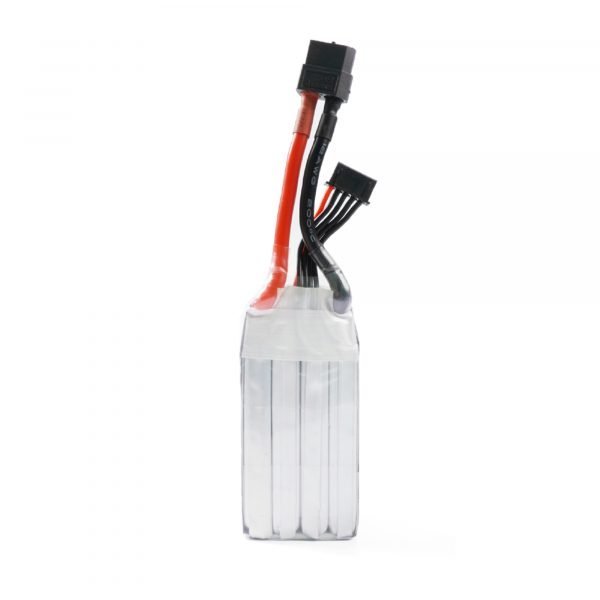

GEPRC Storm battery is designed for Freestyle & Racing Quad.
GEPRC Storm battery uses safe and stable cell formula, superb pairing process, flat appearance, smooth surface, solid power cable welding, good stability for battery discharge and long-lasting cycle life.
Storm battery has more energy and longer flight time compared with other ordinary model batteries. With higher discharge multiplier, higher discharge current, more powerful. Smaller size, particularly the Light weight, even you can barely feel anything when it’s running.
We’ve been pursuing smaller size, lighter weight, more power and higher capacity FPV battery.
Feature
1. Battery capacity is quite sufficient
2. It’s able to continue to discharge at a high multiplier, the current output is stable and powerful.
3. Small size, light weight and smooth flying experience.
4. Safe and stable formula, high quality cells ,long-lasting cycle life.
Specification
Model: Storm 4S1800mAh120C
Model Number: GEP18004S120A
Capacity: 1800mAh
Configuration: 4S1P
Nominal Voltage: 14.8V
Type: LiPo
Watt: 26.64Wh

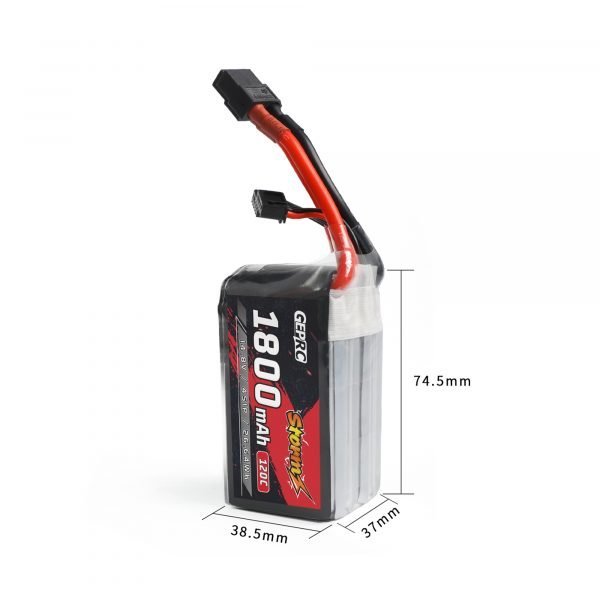

Dimension: 37*38.5*76.5(mm)

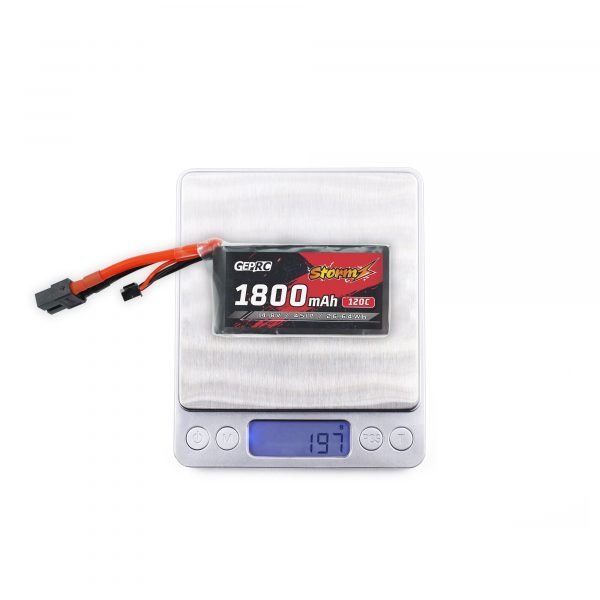

Weight: 197.0g
Max discharge (C-rate/current): 120C
Charge Connector: XT60
Discharge Connector: XT60
Recommended charging current: 1C
Maximum charging current: 3C
Application: Toys,Boats,Quadcopter
Include
1 x GEPRC Storm 4S1800mAh120C Battery
Warning
-
Please read the battery parameters and instructions in detail before use.
-
Please don’t charge the battery unattended.
-
Do not overcharge (select the correct battery type before charging, the full charge voltage of single cell of LiPo battery is not more than 4.2V, and the full charge voltage of single cell of Li-HV battery is not more than 4.35v).
-
Do not over-discharge ( the single-cell discharge voltage of LiPo and Li-HV batteries cannot be lower than 3.7V, over-discharging will damage the battery and cause swelling).
-
Don’t place the battery close to open flames or fire sources.
-
Keep the battery away from flammable materials when charging
-
Please carefully check the battery voltage and capacity before charging and use
-
It is forbidden to reverse the positive and negative poles of the battery (to avoid short circuit)
-
Do not directly touch the leaking battery. If you accidentally touch the electrolyte, please wash it with clean water immediately. If it is serious, please consult a doctor immediately.
-
Please dispose of the ruptured battery in time and do not reuse it
-
If you need to store the battery for a long time, please maintain the battery voltage at a single-cell 3.80V-3.85V. Please ensure that a charge-discharge activation is performed within 3 months to maintain the stability of the battery.
-
It is forbidden to disassemble and reassemble the battery or change the wiring (it is easy to cause short circuit and burning).
-
If a collision occurs during use, please remove the battery. Check carefully whether the battery and connector are normal.
-
Please charge at a temperature of 0-45℃ (make sure the charging environment is cool and ventilated, the battery will generate a certain amount of heat after use and during the charging process, and the battery that has just been used is allowed to stand and wait for the temperature to be below 45℃ before charging).
FAQ
Q:What is High Voltage Battery?
A:Voltage of High Voltage Battery higher than ordinary battery.The maximum charging voltage of high voltage battery is 4.35V,and ordinary only 4.2V.
Q: What is the appropriate charging rate C for the battery?
A: The charging rate supports up to 3C, and it is recommended to use 1-1.5C, which will basically have no effect on the service life of the battery.
Q: What kind of charger is used to charge the battery?
A: It is recommended to use the HOTA D6 PRO charger, ISDT 608AC charger and ToolkitRC M6D charger.
