Description
Specifications:
Brand Name: Happymodel
Model: Moblite7 HDZERO
Frame wheelbase: 75mm

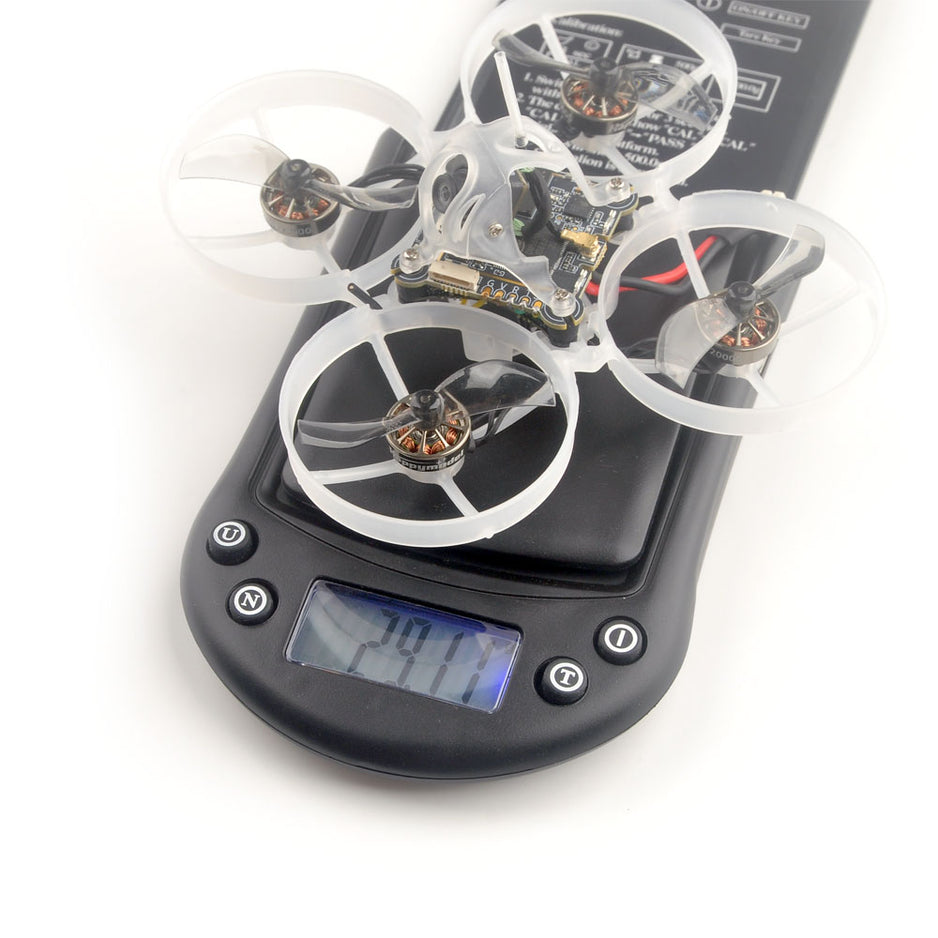

Weight: 29.5 gram without battery
Size: 98mm*98mm*50mm
Receiver option:
SPI ELRS 2.4GHz
SPI FRSKY 2.4GHz
Compatible with 1S Lipo battery or Lihv battery
Battery Plug: PH2.0
Package includes:
| Item Name | Qty |
| Mobula7 v4 75mm frame +Canopy | 1 |
| SPI Receiver Option1: SuperbeeF4 Lite FC built-in ExpressLRS SPI RX | 1 |
| SPI Receiver Option2: SuperbeeF4 Lite FC built-in Frsky SPI RX | |
| EX1002 KV20000 Unibell brushless motor | 4 |
| Gemfan 1610-2 bi-blades propeller(4cw+4ccw) | 1 |
| HDZero Nano Lite Camera | 1 |
| HDZero Whoop Lite VTX | 1 |
| Spare Canopy | 1 |
| Propeller disassemble tool | 1 |
| Screw driver | 1 |
|
Flight controller SuperbeeF4 Lite ELRS/FRSKY |
SPI ELRS version Firmware target: CrazybeeF4SX1280 SPI FRSKY version Firmware target: CrazybeeF4FR MCU:STM32F411CEU6 (100MHz, 512K FLASH) Sensor: ICM20689 or ICM42688P or BMI270(SPI connection) Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in SPI Frsky/ExpressLRS receiver Built-in 5V 1A BEC Built-in voltage detection |
| Onboard 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HV (2.8v~4.35v) Currents: 5A continuous peak 6A (5 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_8.HEX Default protocol: DSHOT150/DSHOT300/DSHOT600 |
| Onboard SPI ExpressLRS 2.4GHz Receiver | Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Could bind with ELRS V2.0 firmware TX module |
| Onboard Frsky SPI D8 /D16 2.4GHz Receiver | SPI BUS receiver Frsky D8/D16 compatible Compatible Non EU transmitter D8 model and EU-LBT(Frsky_x_lbt) Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m Based on CC2500 RF module Compatible with Futaba S-FHSS , Redpine protocol |
| Motor | Model: EX1002 20000KV Configu-ration:9N12P Stator Diameter:10mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*12.5mm Weight(g):2.5g No.of Cells(Lipo):1S only |
| Propeller Gemfan 1610-2 Bi-blades | Weight:0.24g Material: PC Pitch:1 inchProps Dia:40mm Center Hole Dia:1.5mm |
| HDZero Nano Lite Camera | 14x16x11 mm 1.5gram 0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor Excellent low light performance Fov: 4:3: D:130° H:108° v:84° 16:9:D:122° H:108° V:65° |
| HDZero Whoop Lite VTX | 1S Input 25mW/200mW RF Output-SmartAudio Support 25.5×25.5 M2 Soft Mounting- Antenna Retention Removable Shielding Box- 32.5×32.5mm(29x29mm inner) 4.5grams/4mm Thickness (without shielding) |
