The Mobula8 is Happymodel's first attempt at an 85mm frame! This whoop comes with a Crazy F405 ELRS HD flight controller, EX1103 KV11000 motors, and Gemfan Hurricane 2023 tri-blade propellers, which have excellent power performance and extremely smooth flight characteristics. The perfect backyard ripper!

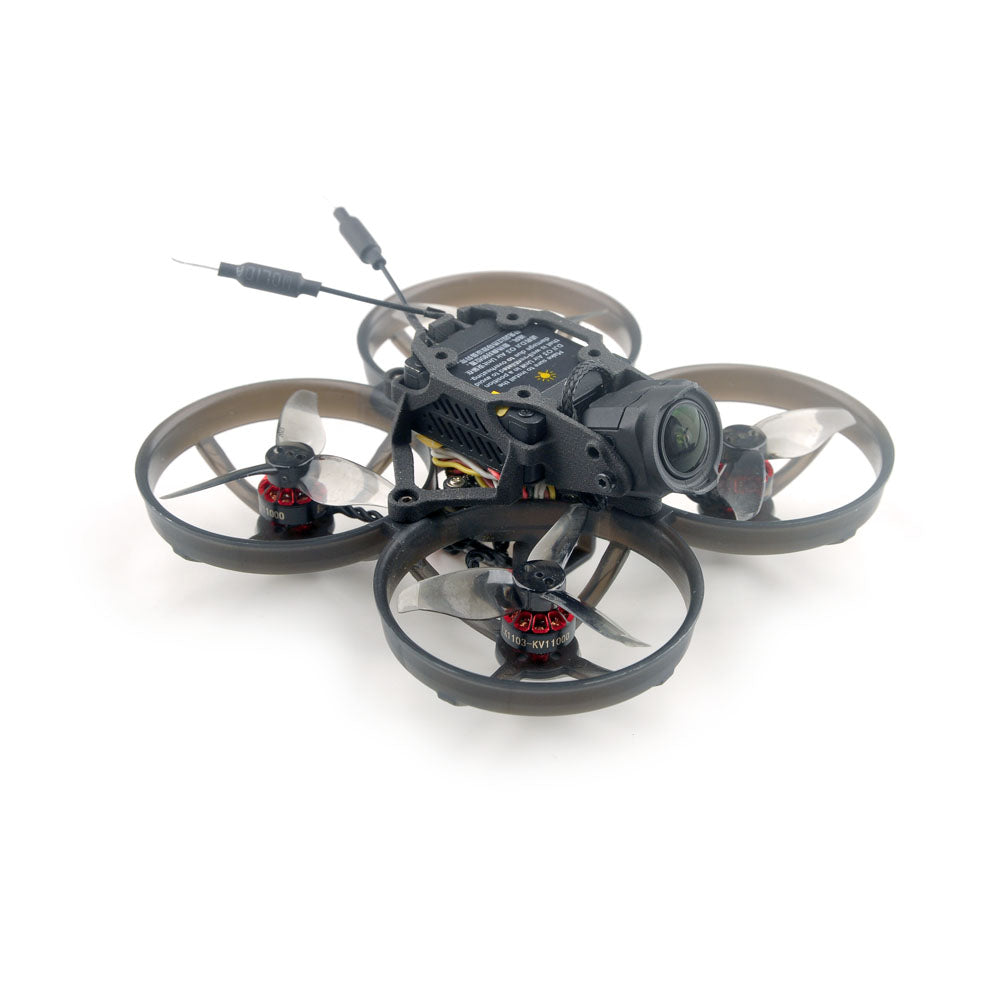

VIDEO: MOBULA8 WITH DJI O3 AIR UNIT
Features
- CrazyF405 HD Flight Controller w/ built-in 2.4GHz ELRS V3.0.1
- Compatible with 1-2S Lipo/LIHV battery
- Multiple HD camera options
- Smooth and powerful
Specifications
- Camera/VTX Options: DJI O3 Compatible (No Camera or VTX), DJI O3, Walksnail Avatar HD Lite, or HDZero Nano Lite
- Item Name: Mobula8 1-2S 85mm Micro FPV whoop drone
- Size: 120mm*120mm*50mm
- Brand Name: Happymodel
- Wheelbase: 85mm
FLIGHT CONTROLLER
- Built-in voltage meter sensor, voltage meter scale 110
- Built-in current meter sensor, current meter scale 470
- MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
- Power supply: 1-2S battery input (DC 2.9V-8.7V)
- GYRO Sensor: BMI270 (SPI connection)
- Built-in 12A(each) Blheli_S 4in1 ESC
- Mount hole size: 25.5mm*25.5mm
- Built-in Serial ExpressLRS 2.4G
- Model: Crazy F405 ELRS HD
- Built-in BMP280 Barometer
- Built-in 8MBp black box
ONBOARD UART ELRS 2.4GHZ RECEIVER
- Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
- Could update firmware via ExpressLRS configurator
- Antenna: enameled copper wire 31mm length
- Default firmware version: ExpressLRS V3.0.1
- Firmware target: HappyModel EP 2400 RX
- Telemetry output Power: <12dBm
- RF Frequency: 2.4GHz
ONBOARD 4-IN-1 ESC
- Current: 12A continuous peak 15A (3 seconds)
- Factory firmware: Bluejay ESC V0.19
- Support BLHeli_S Bluejay firmware
- Power supply: 1-2S LiPo/LiPo HV
- Default protocol: DSHOT300
- Firmware target: Z-H-30
- *When using 1s battery and high KV 0702/0802 motors, should set the startup power to 1100/1200
MOTORS
- Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
- Mode: EX1103 KV11000
- Shaft Diameter:Φ1.5mm
- No.of Cells(Lipo):1-2S
- Configu-ration:9N12P
- Stator Diamter:11mm
- Stator Length:3mm
- Weight(g):3.8g
PROPELLERS
- Center Hole Dia:1.5mm
- Center Thickness:5mm
- Props Dia:52.17mm
- Weight:0.88g
- Pitch:2.3inch
- Material: PC
Recommended (Not Included)
- 2S Battery: 450mah/550mah/650mah
Includes
- 1x Happymodel Mobula8 1-2S 85mm HD Drone (Choose Camera/VTX)
- 1x Gemfan Hurricane 2023 Tri-blade propellers (4CW+4CCW)
- 1x Spare Canopy
- 1x Screwdriver
