Description

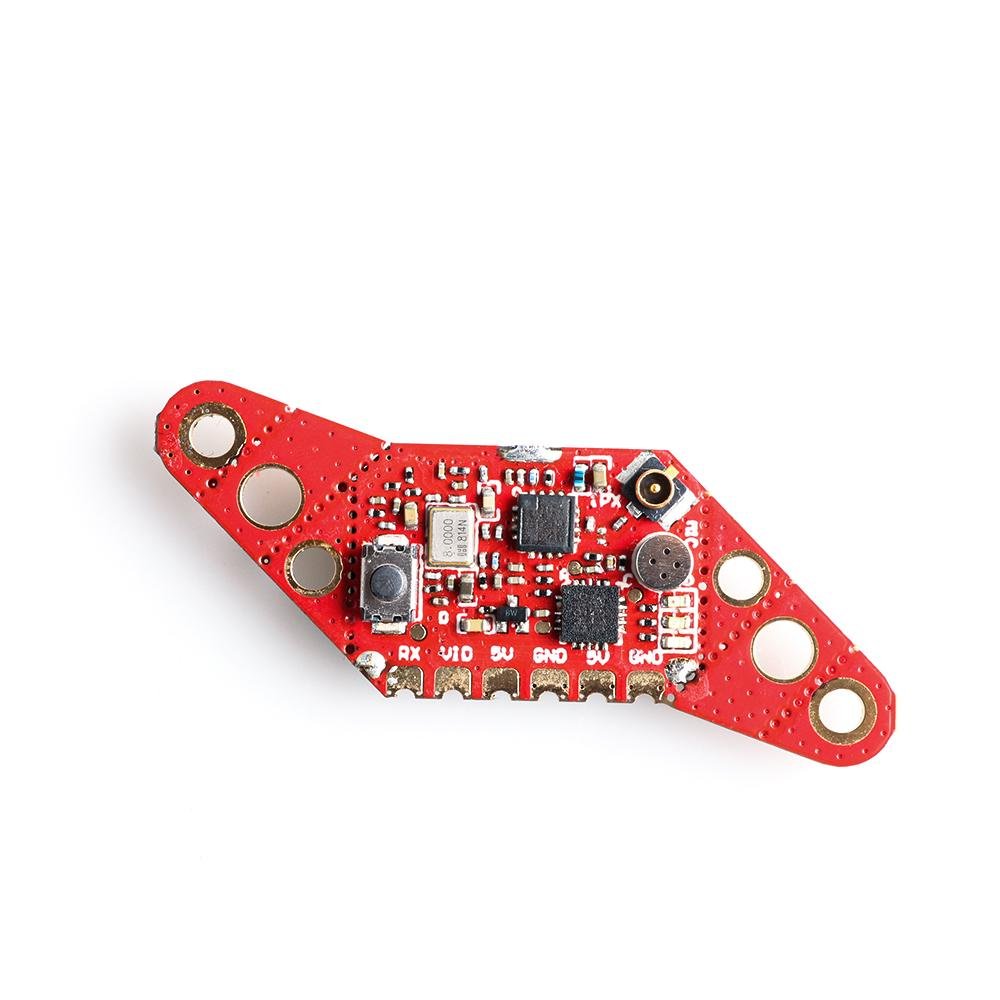

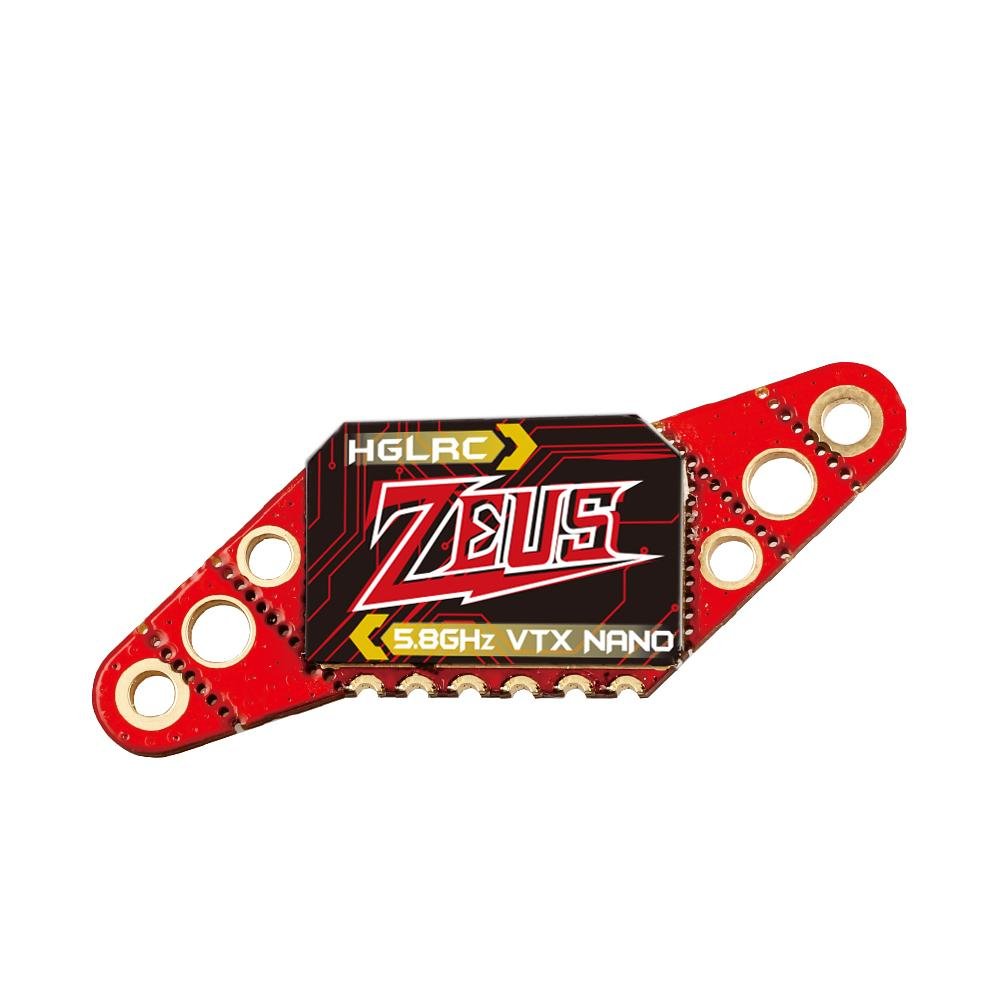

Model:Zeus nano VTX
CE Certified

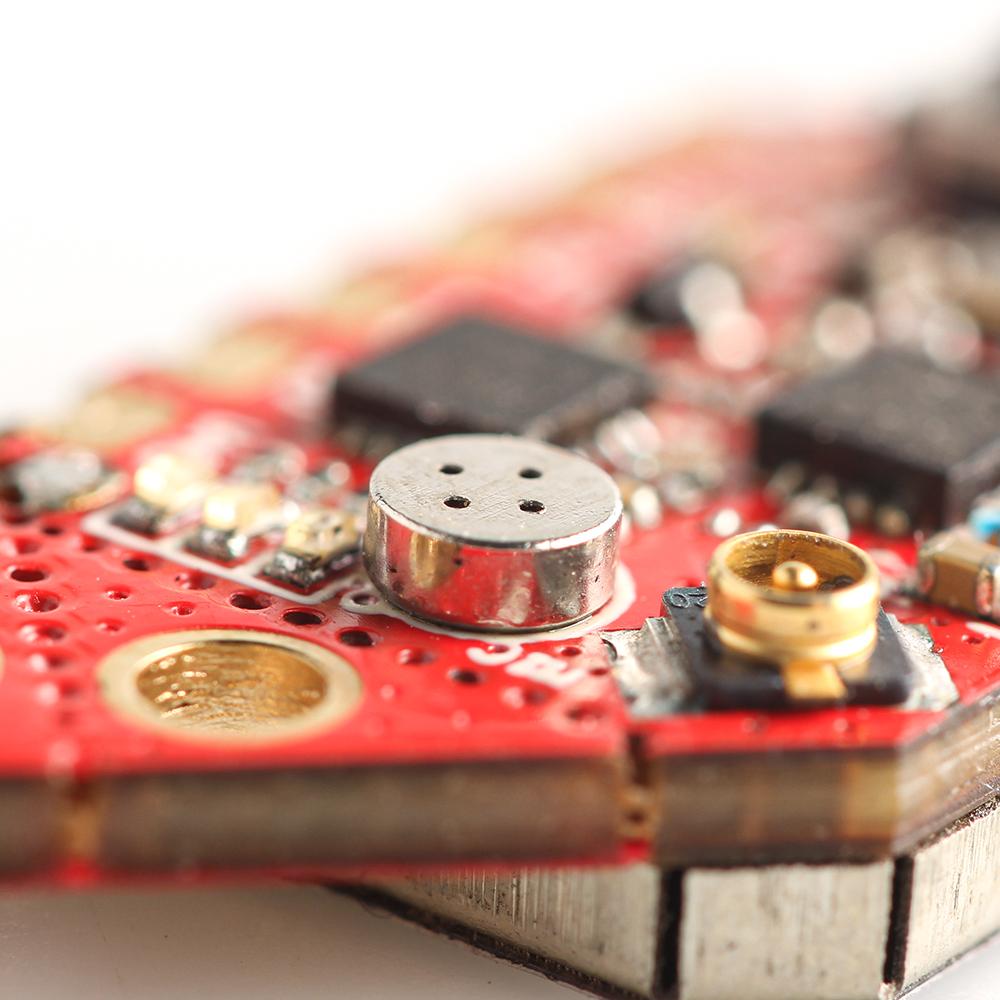

Built-in Microphone
Input voltage:DC 5V
PIT@75mA
25mW@180mA/16dBm
100mW@280mA/21.5dBm
200mW@330mA/24.5dBm
350mW@400mA/27.5dBm
Antenna interface:ipex
Output power:PIT/25/100/200/350mW
Standard 40 channels. A/B/E/F/R frequency group

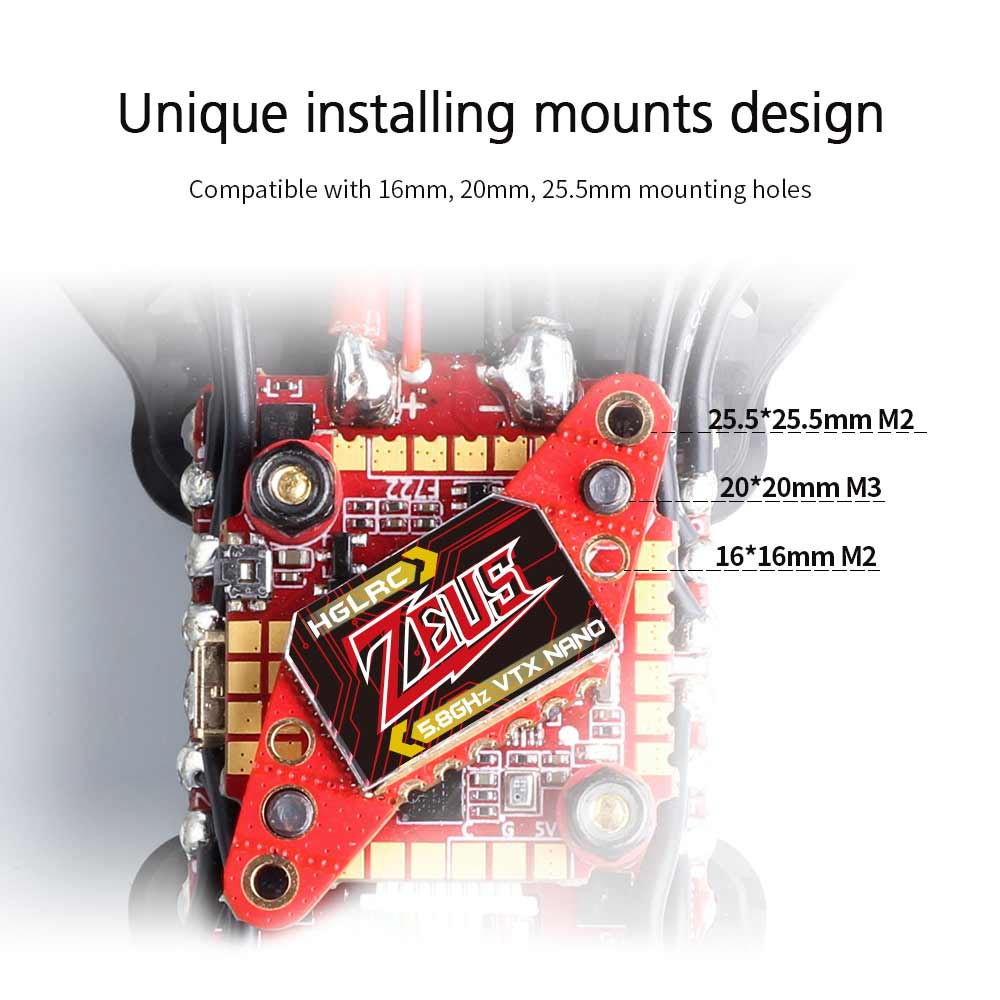

Installing Hole:16X16/25.5X25.5mm.M2
20X20mm.M3

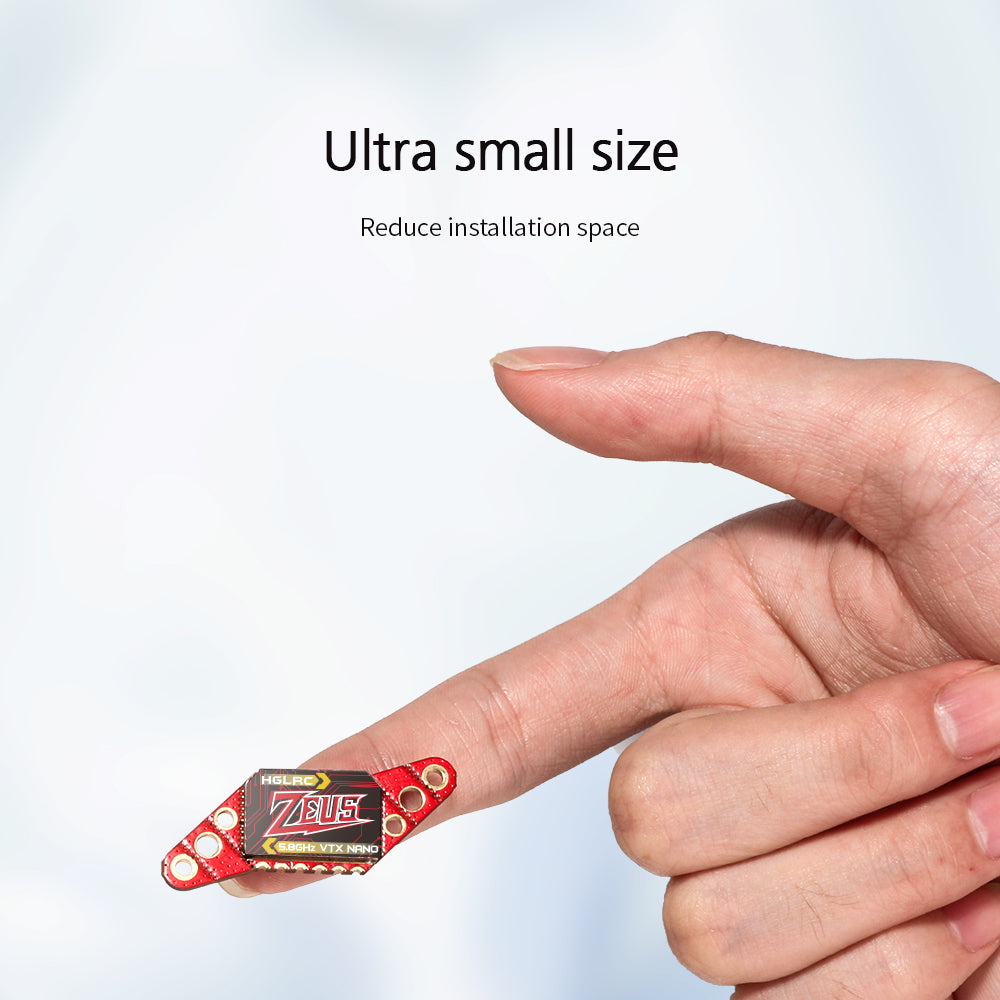

Size:18.6mm x 13.6mm x 6mm

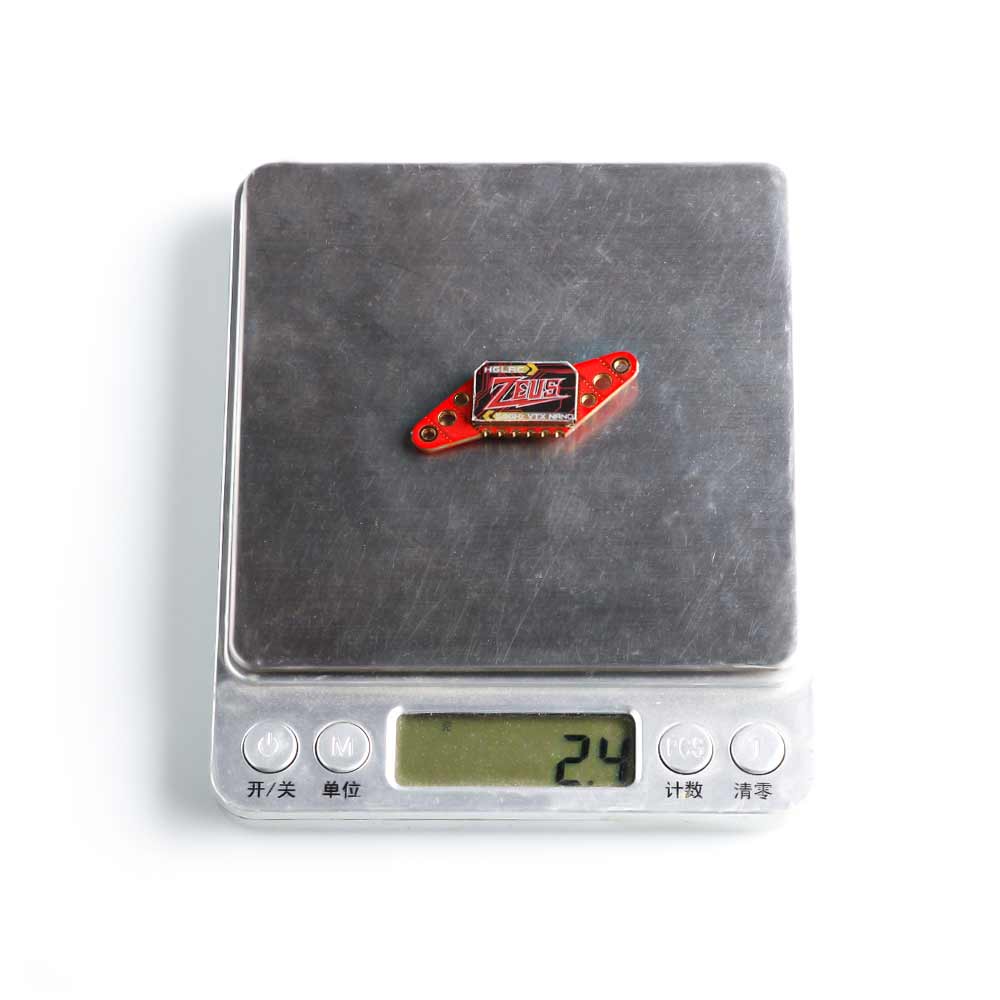

Weight:2.4g
Package Included:
1 x Zeus nano VTX
1 x ipex Linear Brass Antenna
1 x ipex to SMA Adapter Cable
6 x VTX Cable
Protocol: IRC tramp
You can find VTX Table here
