Description

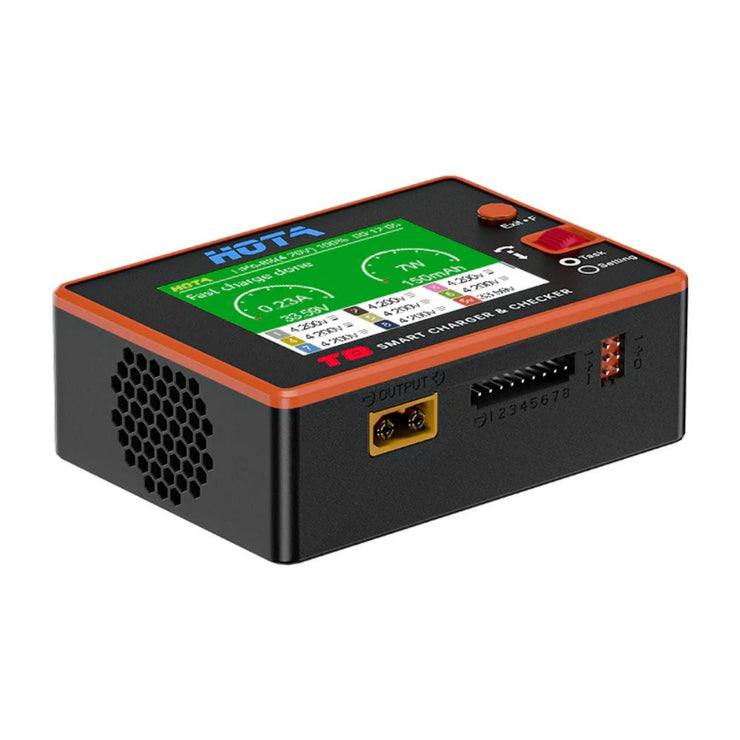

The HOTA T8 650W 8S DC Charger delivers intelligent, high-power charging with a maximum output of 650W and 22A current. Versatile and compatible with 1-8S cell configurations, this user-friendly, compact charger is perfect for all your battery needs, ensuring safe, efficient, and fast power-ups wherever you go.
Note: This purchase only incldues the DC Charger only, an AC Power Supply must be purchased seperately.
Features
- User-Friendly Interface
- Versatile Compatibility
- High Power Output
- Compact Design
- Smart Charging
Specifications
- Input Voltage: DC 7.035.0V @ MAX 27A
- Charge Power: 0.122A @ 650W
DISCHARGE POWER

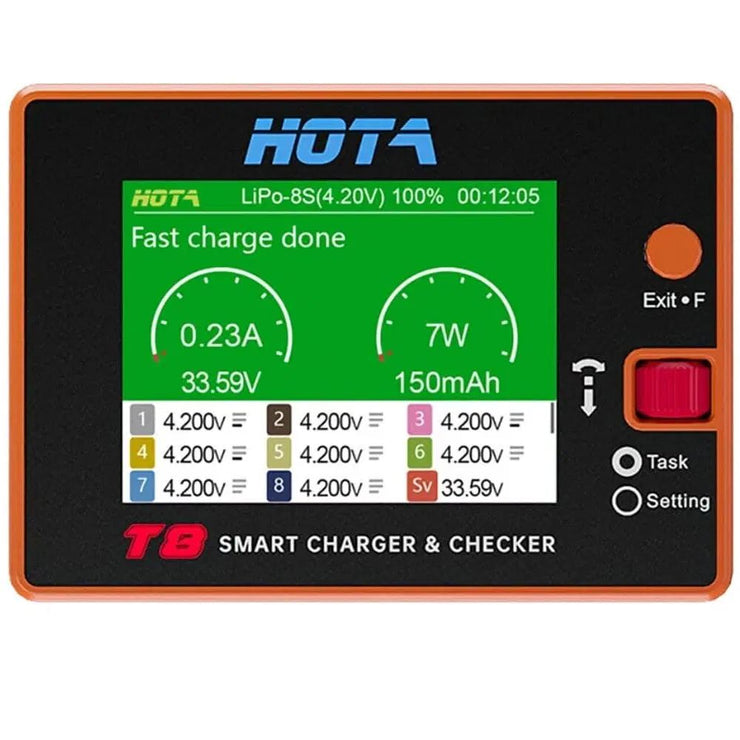

- Screen Size: 2.8″ IPS, 320×240 resolution, 260,000 colors
- Dimensions: 97mm × 69.5mm × 34mm
- USB-A Output: 5V @ 2.1A (Upgrade)
- 0.1~22A @ 650W: (Recycle External)
- Balance Current: 1000mA @ 4.2V
- Net Weight: Approximately 194g
- Operating Temperature: 0~40°C
- Storage Temperature: -2060°C
- 0.13A @ 20W: (Normal Mode)
SUPPORTED BATTERY TYPES
- Smart Battery / LiHV / LiPo / LiFe / LiIon / LiXX / LTO: 1~8S
- NiZn / NiCd / NiMH: 1~20S
- Eneloop: 1~20S
- PB: 1~12S
OUTPUT
- Power Supply: 0.5-22A @ 1-35V (Mode: CC+CV)
- SBUS: 880us-2200us × 16CH @ 74Hz
- PWM: 500us-2500us @ 20-1000Hz
- PPM: 880us-2200us × 8CH @ 50Hz
MEASURER
- SBUS: 880us-2200us × 16CH @ 20-100Hz
- PPM: 880us-2200us × 8CH @ 20-50Hz
- Internal Resistance: 1-99mΩ @ 1-8S
- PWM: 880us-2200us @ 20-400Hz
- ESC: 1-20A @ 1-35V, MAX 650W
- Voltage: 1.0V-5.0V @ 1-8S
Includes
- 1x HOTA T8 DC 650W 22A 1-8S LiPo Battery Smart Charger/ Checker
