Description
Features
UBLOX M10 chip
Compass module QMC5883L integrated
Built-in farad capacitor for faster hot start
Onboard LNA (Low Noise Amplifier)
10 Hz Refresh rate
Built-in Flash
High sensitivity 18x18mm GPS patch antenna, low power consumption, strong signal, lightweight.
Specifications
Compass module: QMC5883L
Baud Rate: 4800bps-115200bps (Default - 115200bps)
Sensitivity: Tracking: -167dBm
Cold start: 26s
Hot start: 1s
Maximum height: 50000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: ≦ 4G
Refresh Rate: 10 Hz
GPS patch antenna size: 18 x 18 x 4 mm
Total dimensions: 20 x 21 x 8.5 mm
Weight: 8.4 g
Input Voltage: 3.3-5.5 V, current 40mA
GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Packing List

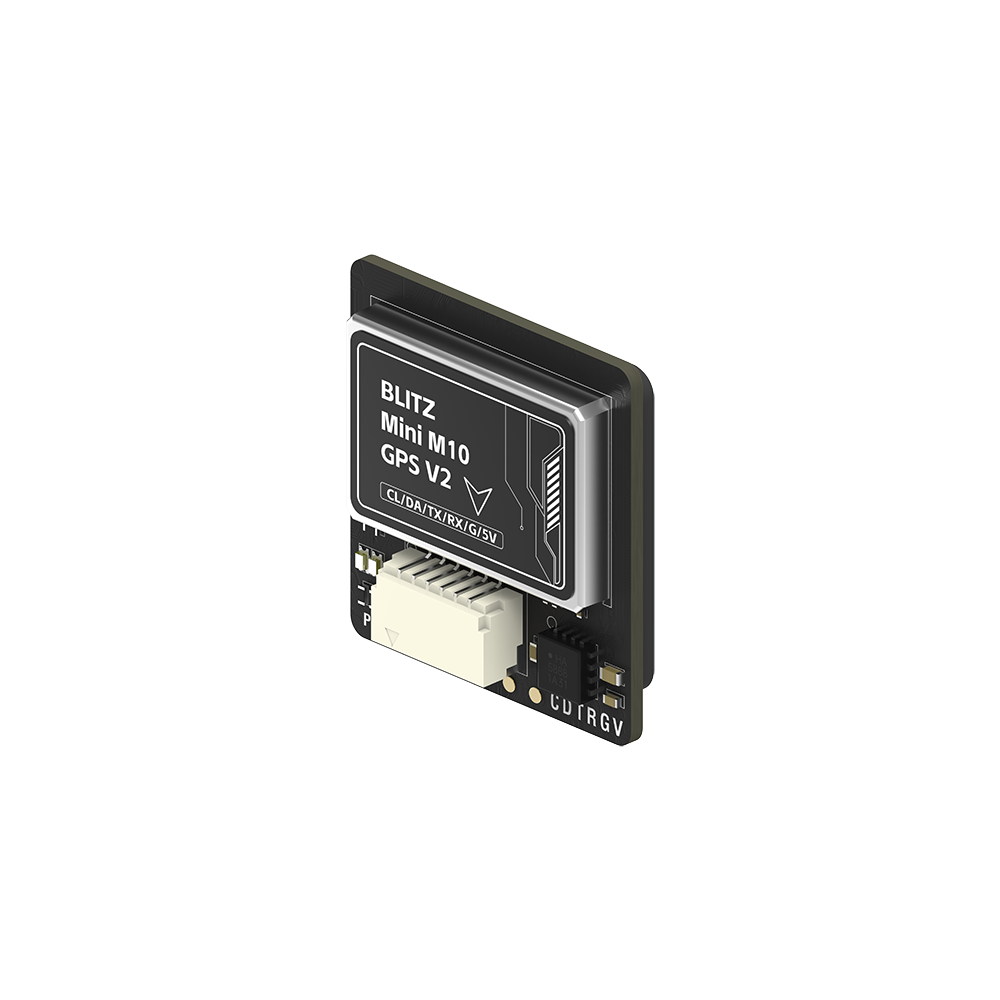

1 x BLITZ M10 GPS
1 x Cable set
