Description
Description

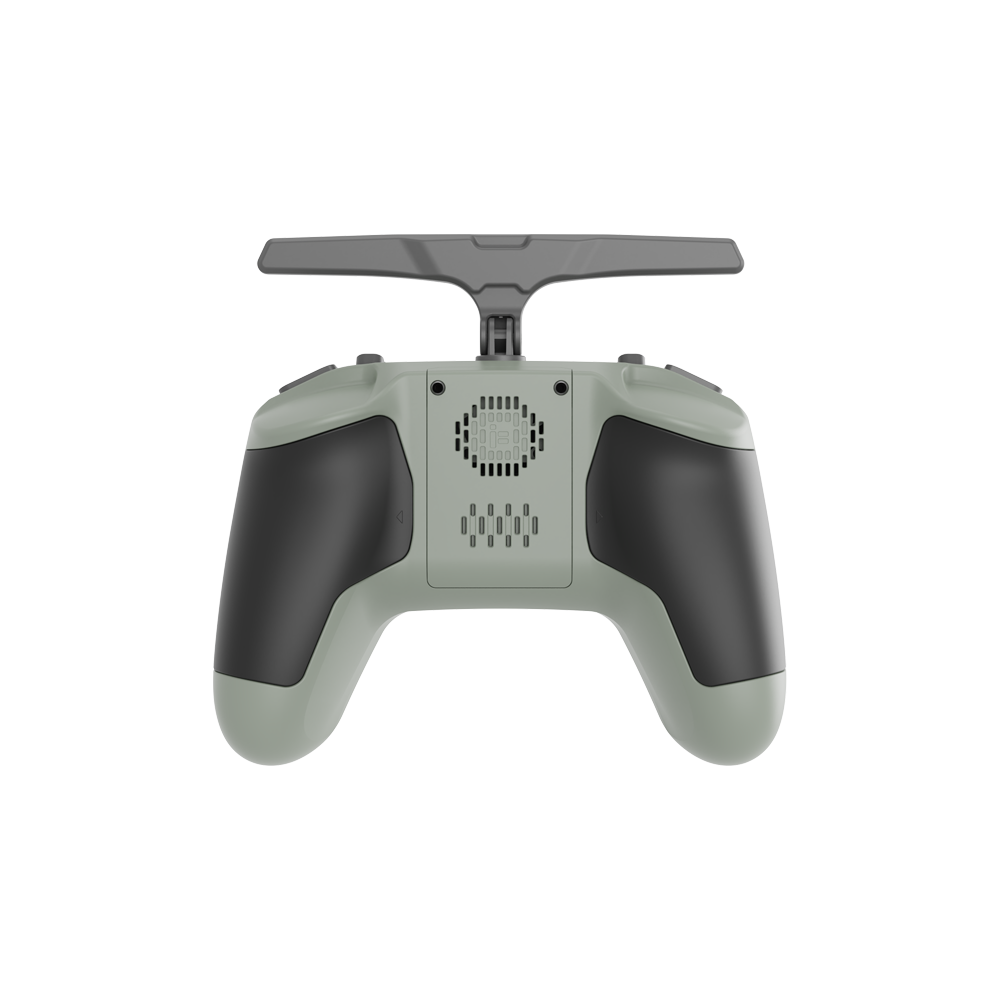

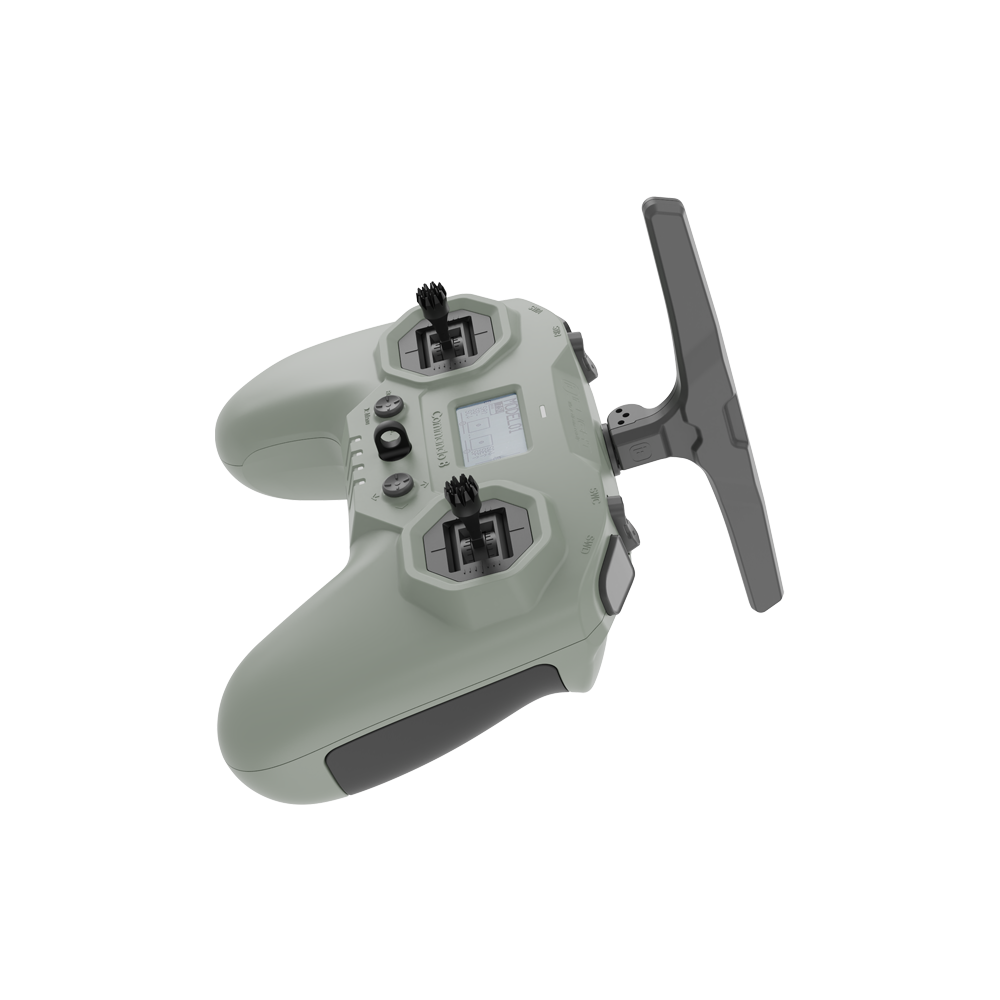

The upgraded iFlight Commando 8 is here, equipped with fully integrated iFlight ExpressLRS hardware, a Temperature Compensated Crystal Oscillator, and an upgraded cooling system. The inclusion of a Temperature Compensated Crystal Oscillator further improves the drone's performance. These enhancements not only improve the drone's performance and reliability but also provide a more enjoyable and seamless flight experience for drone enthusiasts.
No additional external module is necessary to run ELRS. If you're planning to run another TX module, please check out the optional add-on external module bay.
ExpressLRS TX modules were developed in close cooperation with the ExpressLRS Team with firmware targets already released.
Checkout the official ExpressLRS website: https://www.expresslrs.org
Official ExpressLRS Quick Start: https://www.expresslrs.org/2.0/quick-start/getting-started/
Features
Internal iFlight ExpressLRS (ELRS) transmitter (additional fan and aluminum sheet for cooling)
Backpack Function
Newly upgraded Temperature Compensated Crystal Oscillator (lower packet loss, high frequency stability)
Highest quality digital hall sensor gimbals for maximum precision
High-performance PCB Single Band (900/2400MHz) radio antennas
Inbuilt 4000mAh for up to 20h power (2x 2000mAh 18650 batteries)
Stock EdgeTX firmware with pre-installed Lua scripts
Several Gimbal Stick Ends available (stock 18mm)
Specifications
- Input: Mini High Precision Digital Hall Gimbals with NMB bearings
- ExpressLRS: 868/915MHz // Max Output 1000mW
- Battery: Built-in 4000mAh 1S2P 18650 Battery
- ExpressLRS: 2.4GHz // Max Output 500mW
- Gimbal Stick Ends: Stock length 18mm
- Charging: Type-C 20W Quick Charge
- 868/915MHz system: SX1276
- Charging Connector: Type-C
- 2.4GHz system: SX1281
- Radio Channels: 8
- Weight: 310g
Includes
- 1x iFlight Commando 8 V2 Radio Transmitter - ELRS 2.4GHz
- 2x 18650 Li-Ion batteries included (pre-installed)
