Description
About this product

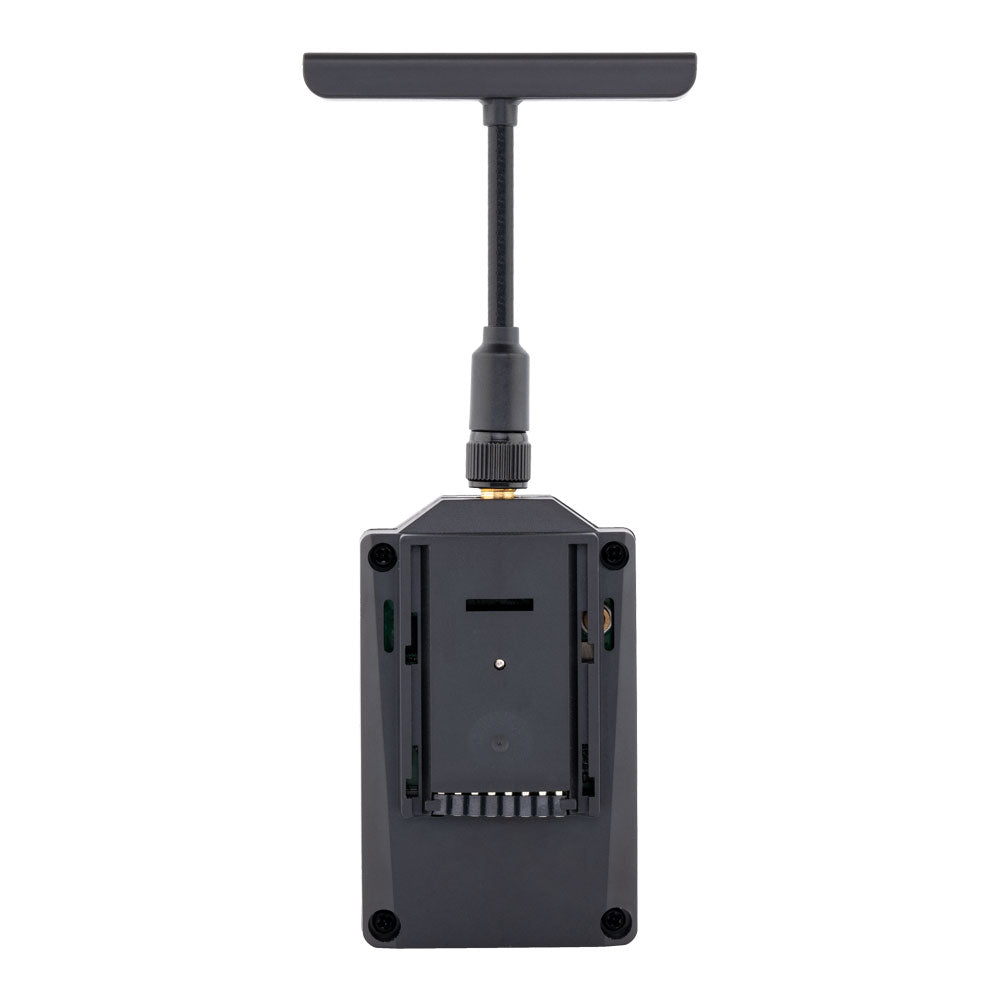

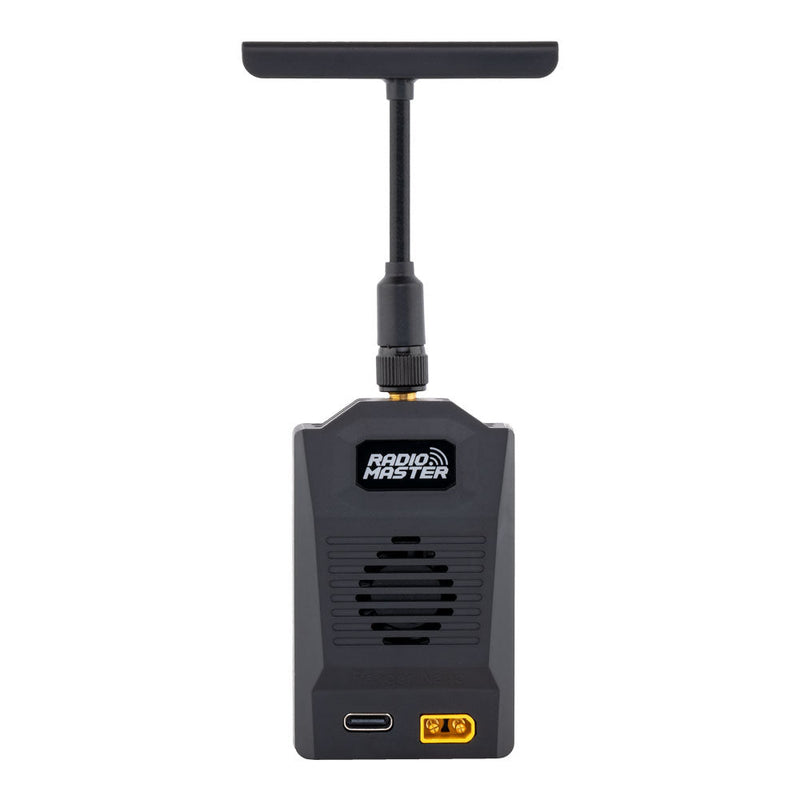

The RadioMaster Ranger Nano 2.4GHz ELRS Module Starter Combo features a nano module bay adapter, packet rates up to F-1000Hz, up to 1 Watt Power output, and a high-efficiency cooling system. This starter combo also includes additional RPI receivers and one RP2 Receiver.
Features
- Nano ExpresssLRS 2.4GHz Module
- Nano Adapter for Zorro and More
- High-Efficiency Cooling System
- WiFi and Bluetooth Support
- Max F-1000Hz Packet Rate
- 1W Power Output
Specifications
- Dimension: 136*42*26mm, 48g (with antenna) / 74*42*26mm, 39g (without antenna)
- RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
- Receivers: Two RP1 Receivers and one RP2 Receiver
- MCU: ESP32(main), ESP8285(aux,as esp backpack)
- Frequency Range: 2400 MHz to 2480 MHz

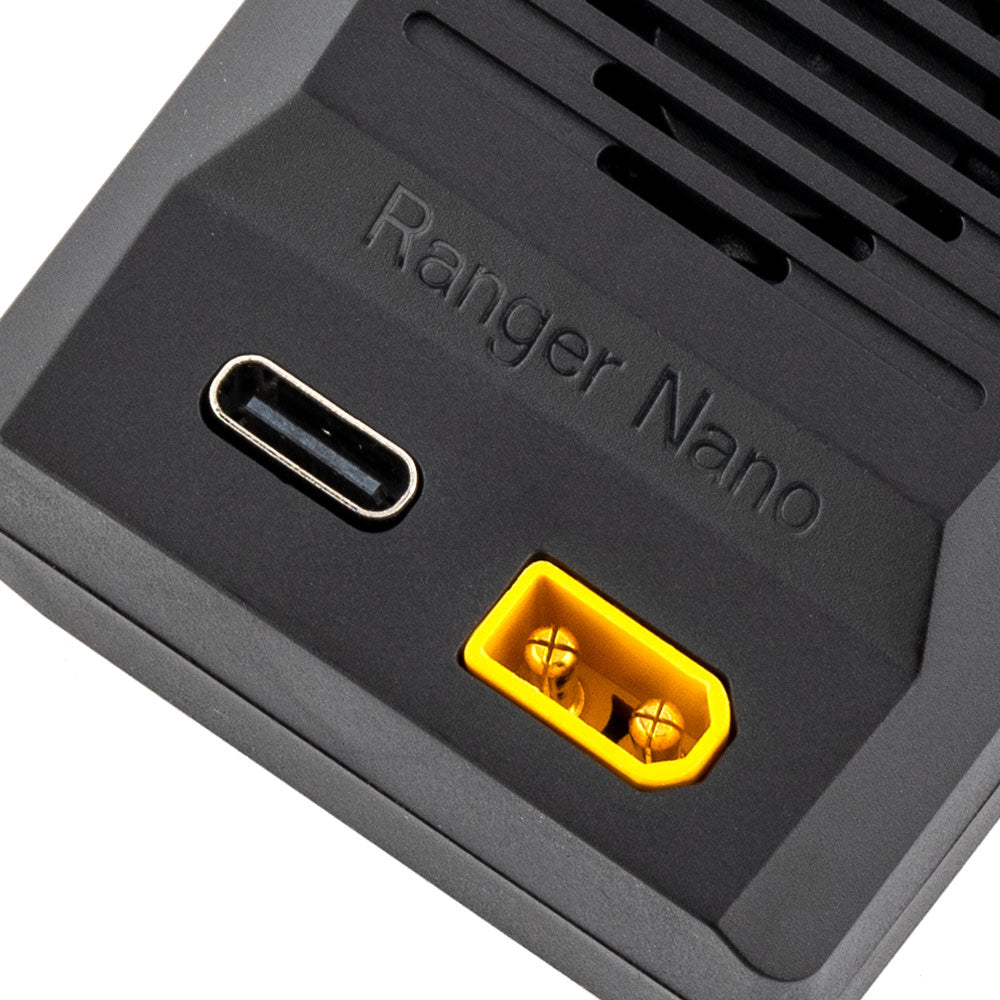

- XT30 Power supply voltage: DC 6V - 16V
- Maximum packet rate: 500Hz/F1000Hz
- Minimum receiver refresh rate: 25Hz
- Regulatory Domain: ISM2400
- Item: Ranger Nano Module
- Weight: 48g (with antenna）
- RF chip: SX1281IMLTRT
- Bluetooth support: Yes
- Wifi Support: Yes
T-ANTENNA
- Antenna polarization: vertical/horizontal polarization
- Type: T-type Omnidirectional Antenna
- Connector: RP-SMA Male
- Frequency: 2.4GHz
- Weight: 9.5g

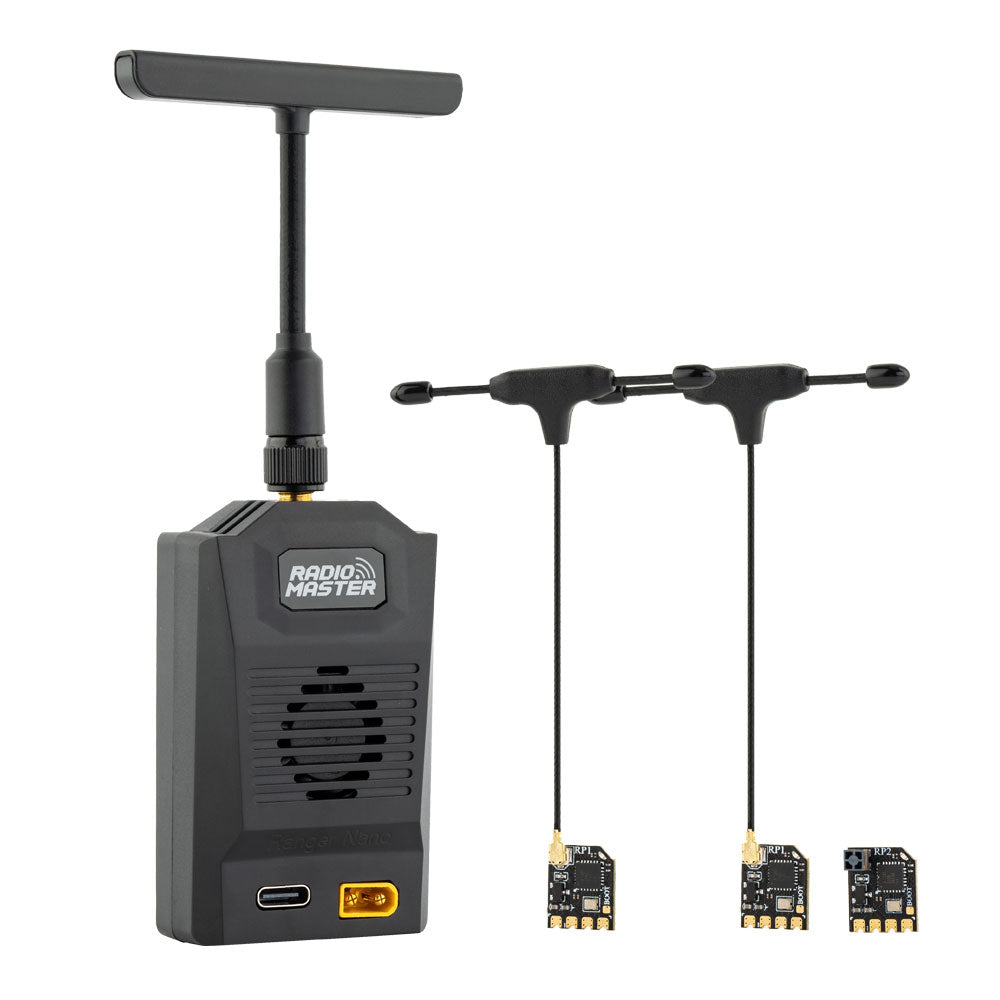

Includes
- 1x Nano Standard 8pin Socket Module Bay Adapter
- 1x Radiomaster Ranger Nano 2.4Ghz ELRS Module
- 1x 2.4GHz T Antenna - RP-SMA
- 2x Radiomaster RP1 Receiver
- 1x Radiomaster RP2 Receiver
- 1x Connecting Wire
- 1x Allen Key
- 3x Screws
