Features
- Use mainstream STM32F405 chip
- Equipped with the latest 42688-P gyroscope
- 16M black box storage
- Integrated LC filter
- Upgrade type-C USB interface
- Directly plugged into the DJI Air Unit
- With TAKER H80_BLS 80A 4IN1 ESC, Dual MOS, high current, silky flight
- Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
- 12V@2.5A + 5V@3A dual independent BEC
Specifications

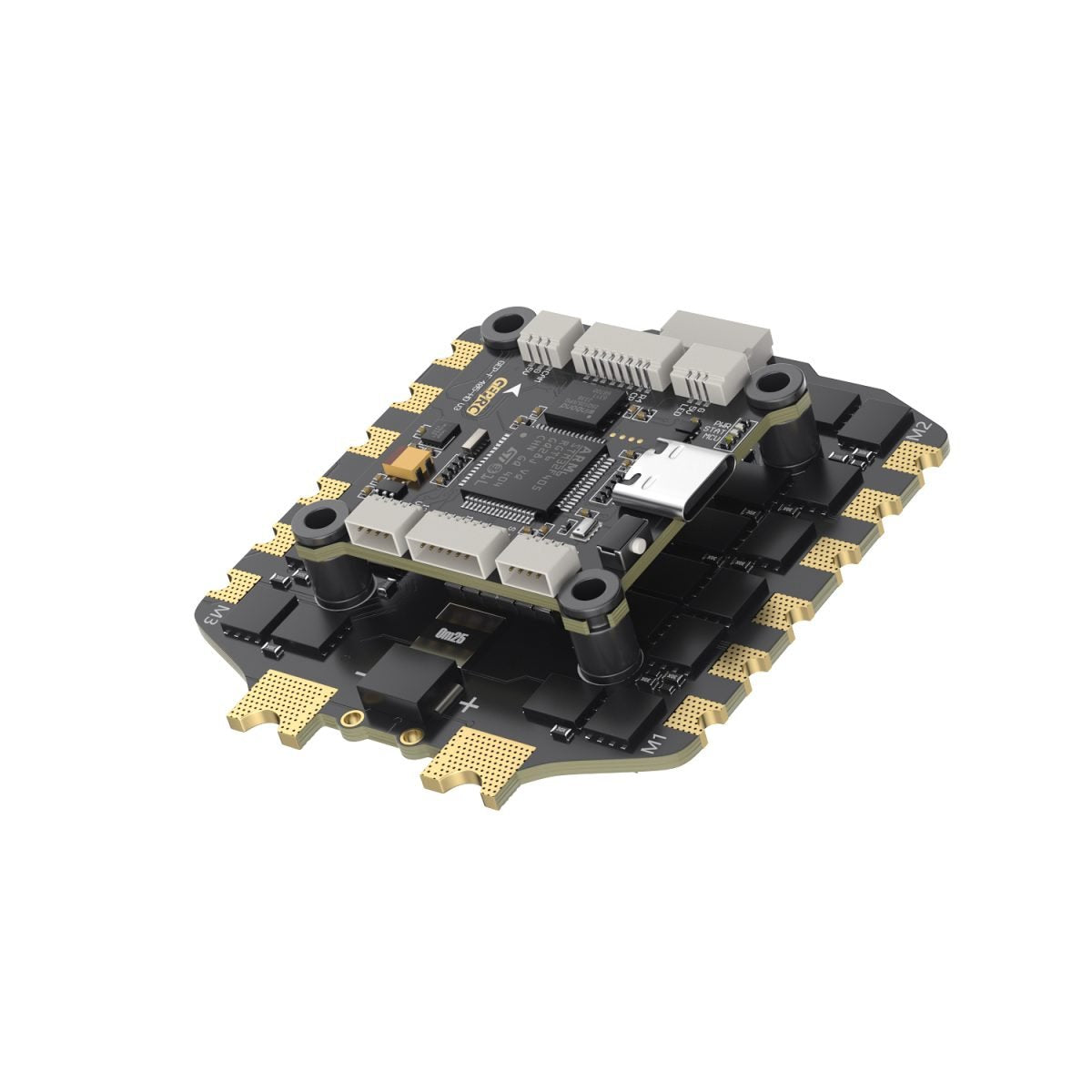

GEP-F405-HD V3 Flight Controller
- MCU：STM32F405
- IMU：ICM42688-P(SPI)
- Air Unit Connection：Direct plugging into DJI Air Unit
- Black Box：16M onboard
- Barometer: support
- Motor outputs：M1-M6
- USB Interface：Type-C
- OSD：BetaFlight OSD w/ AT7456E chip
- BEC：5V@3A,12V@2.5A dual BEC
- Firmware Target：GEPRCF405
- Size：37.15×37.15mm
- Mounting: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
- Input Voltage：3-6S LiPo
- UART：6 UARTs
- Power Filter：Integrated LC filter
- Weight：7.3g
TAKER H80_BLS 80A 4IN1 ESC
- Input Voltage: 3-6S Lipo
- Ammeter: Support
- Continue Current：80A
- Burst Current：85A（5 second）
- Support Protocol: Dshot 150/300/600
- Size：56.3*61.1mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
- Weight: 28.1g
- Target: B_X_30
