Description

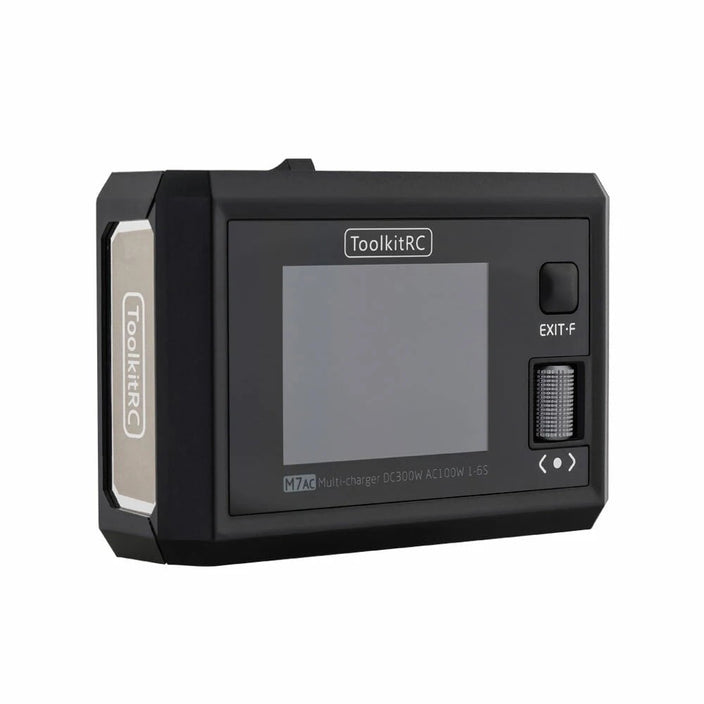

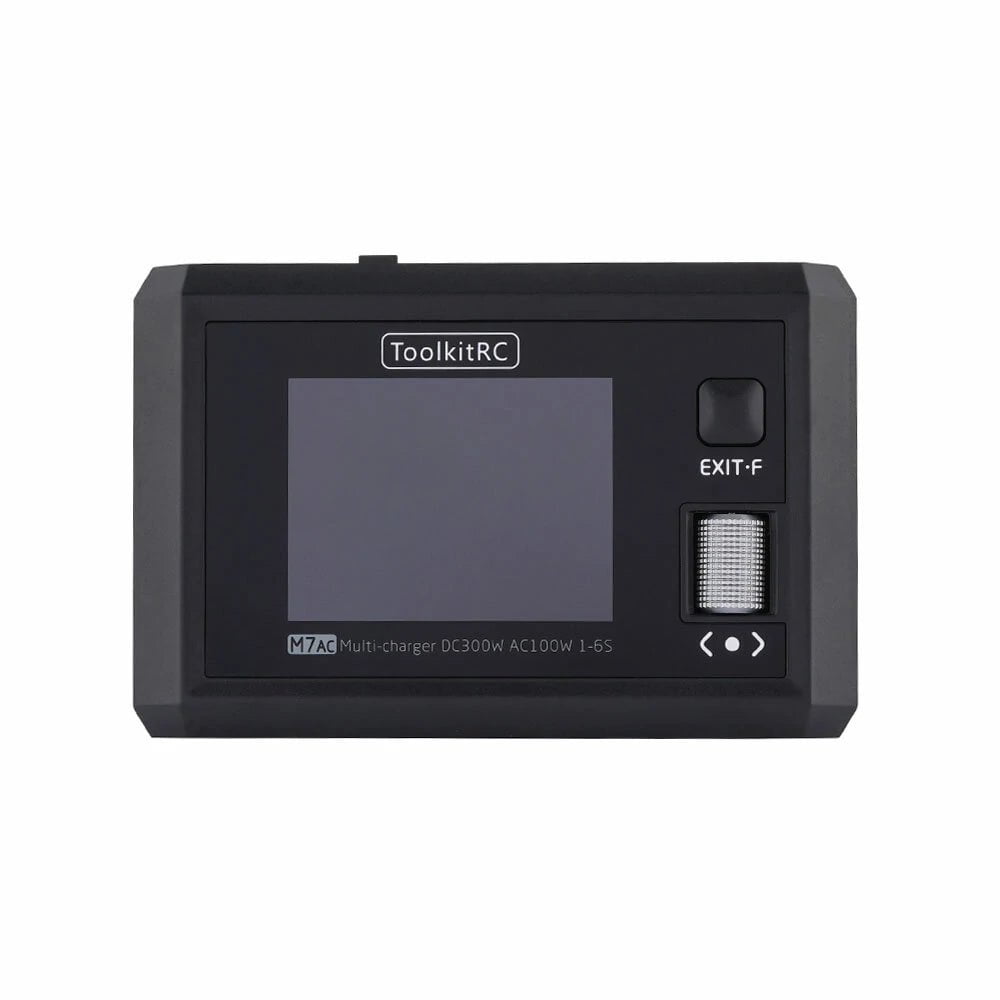

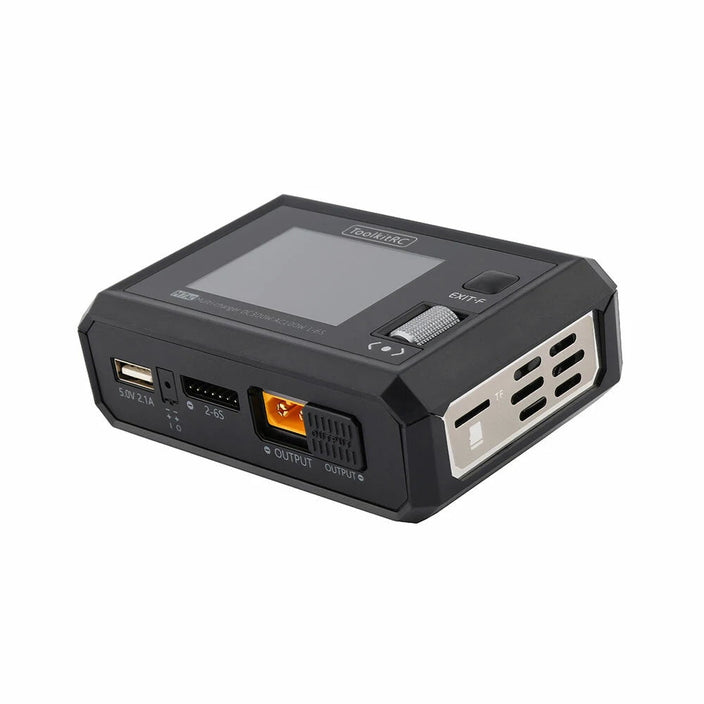

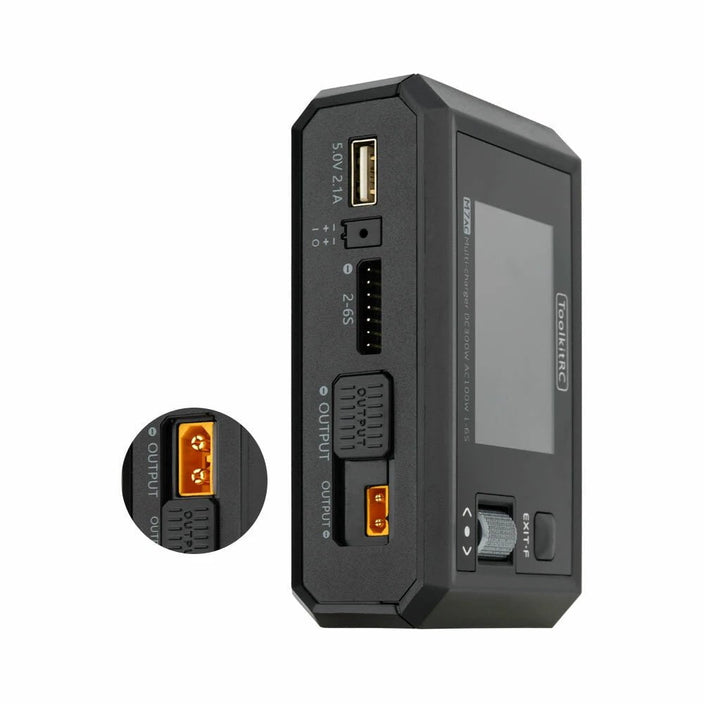

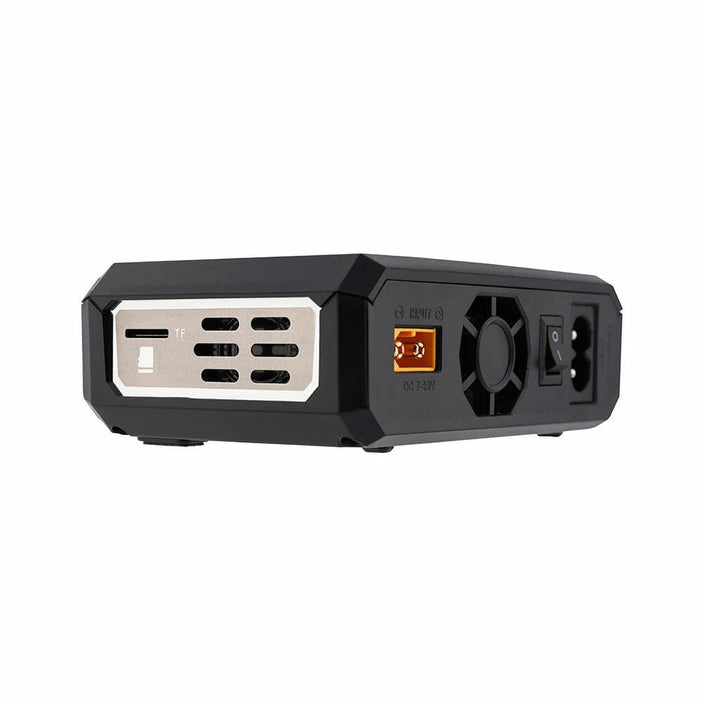

The ToolkitRC M7AC Multi-Function AC Smart Charger features Dual AC/DC Input, XT30/XT60 Output, and supports 2-6S. The Toolkit M7 isn't just a charger, but a versatile tool kit too. It can be used as a power supply, multimeter, signal source, drone charger, and signal tester!
Specifications
Charger
input voltage: AC 100-240V MAX 100W 1.5A
DC7.0-28.0V@MAX20A
battery type: Lipo LiHV LiFe Lion LTO@1-6S
NiMh @1-16S Pb @1-10S
balance current: 800mA@4.2V
charging power: 300W @MAX 15A
discharge power: 300W @MAX 15A Recycle mode
15W@3A Normal mode
USBA: 10W@5.0V or Upgrade
Measurer
PWM: 880-2200us@20-400Hz
PPM: 880-2200us*8CH@20-50Hz
SBUS: 880-2200us*16CH@20-100H
voltage: 1.0-5.0V@1-6S
Internal resistance: 0.1mR-99mR@1-6S
ESC: 300W@15A
General
product size: 112*73*38mm
product weight: 245g
packing size: 144*125*43mm
packaging weight: 380g
LCD: IPS 2.4 inch LCD 320*240 resolution
TF Card: 128MB-16GB
Output
PWM: 500-2500us @20-1000Hz
PPM: 880-2200us*8CH@20-50Hz
SBUS: 880-2200us*16CH@20-100Hz
power supply: 1.0-28.0V@0.5-15 A mode:CCCV
Overcurrent response: <5ms
Links

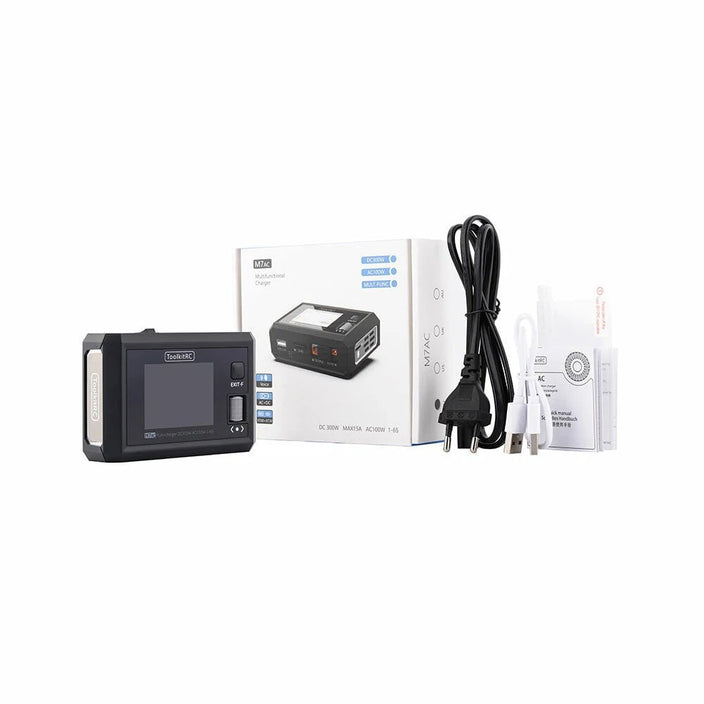

Package
ToolkitRC M7AC 100W AC/300W DC 15A 2-6S Multi-Function AC Smart Balance Charger
