Description

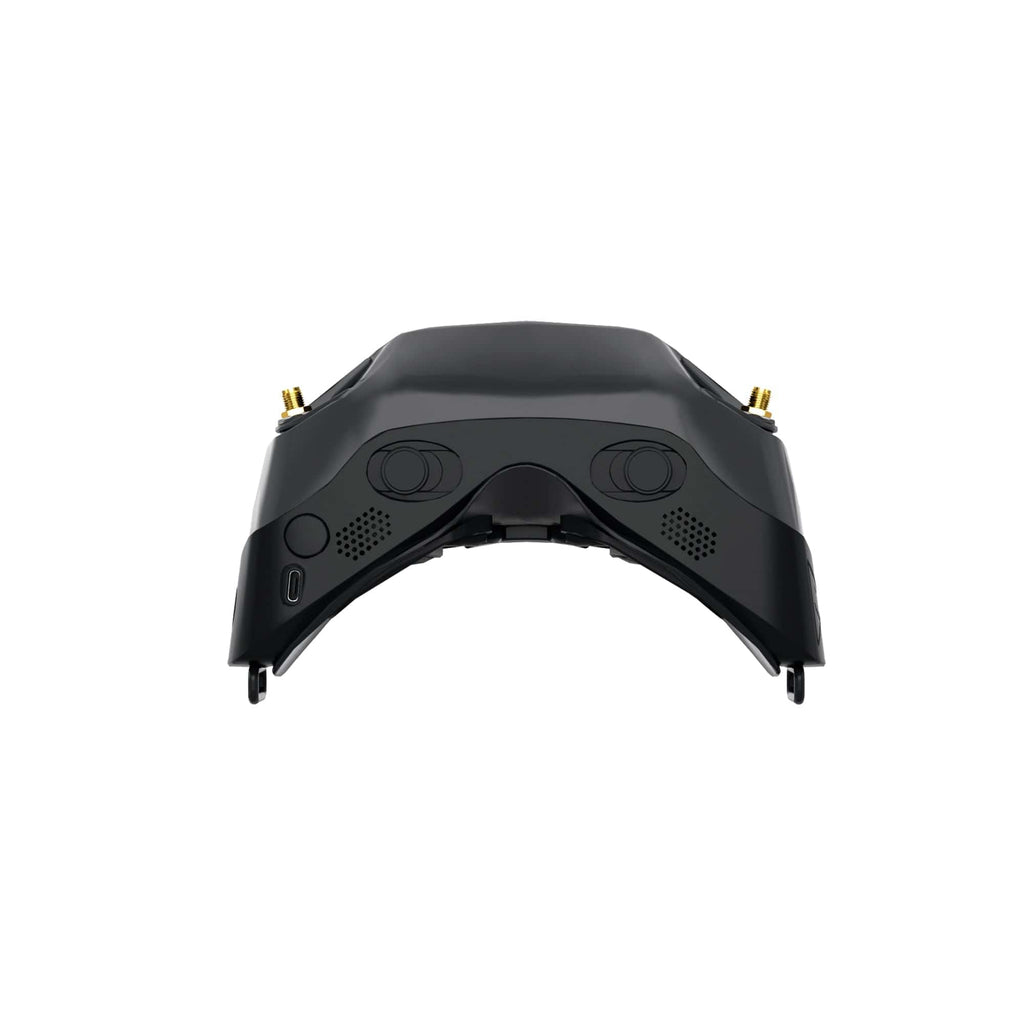

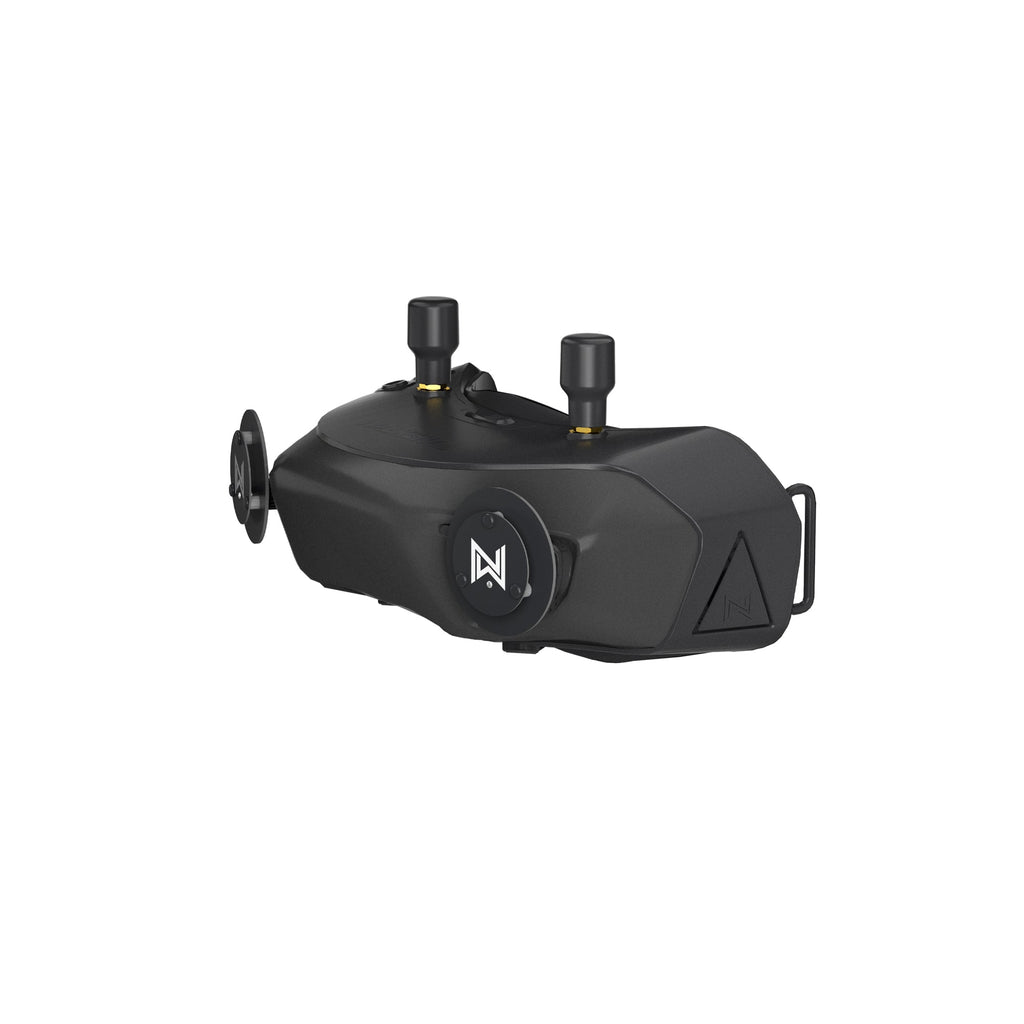

The Walksnail Avatar Digital HD FPV Goggles w/Antennas feature high-fidelity Full HD OLED displays and support a new 1080p video transmission protocol in a compact design. These goggles are designed as lightweight mini-size goggles with 46¡ã FOV and focus adjustment with HDMI output.
Features
- Customizable Fit with Optional Faceplate Pad Accessories
- Red Bird LHCP 5.8GHz Goggle Antennas
- HD Video Output via USB-C Connector
- Supports Betaflight Canvas Mode
- Adjustable Anti-Fog Ventilation
- On/Off Power Button
- Integrated HD DVR
- Focus Adjustment
- 46° FOV
Specifications
- Transmitter Power: FCC: <30dBm: CE: <14dBm: SRRC: <20dBm: MIC: <25dBm
- Micro Displays: Full HD 1080p OLED Dual Micro Displays
- Inter-Pupillary Distance (IPD): 57 ~ 70mm (adjustable)
- I/O Interface: Type-C, MicroSD Card, DC 5.5x2.1mm
- Adjustable Focus Range: +2 to -6 Diopter
- Communication Frequency 5.8GHz
- IPD Mechanical Range: 28-70mm
- Power Input: 6V-25.2V (2S-6S)
- Screen Resolution: 1920x1080
- IPD Visual Range: 54-74mm
- Model: Avatar HD Goggles
- SD Card: Supports 256Gb
- HDMI Output: Supported
- Field of View (FOV): 46°
- Screen Size: .49 Inches
Antennas
- Cross-Polarization Rejection: -15 to -30dBi
- Radiation Efficiency: >97%
- Dimensions: 24.8x15.3mm
- Bandwidth: 5.6-6GHz
- Average Gain: 1.9dBi
- Connector: RP-SMA
- Polarization: LHCP
- Model: Red Bird
- Weight: 4.2g
- VSWR: <1.3
Includes
- 1x Walksnail Avatar Digital HD FPV Goggles w/ Antennas
