Description

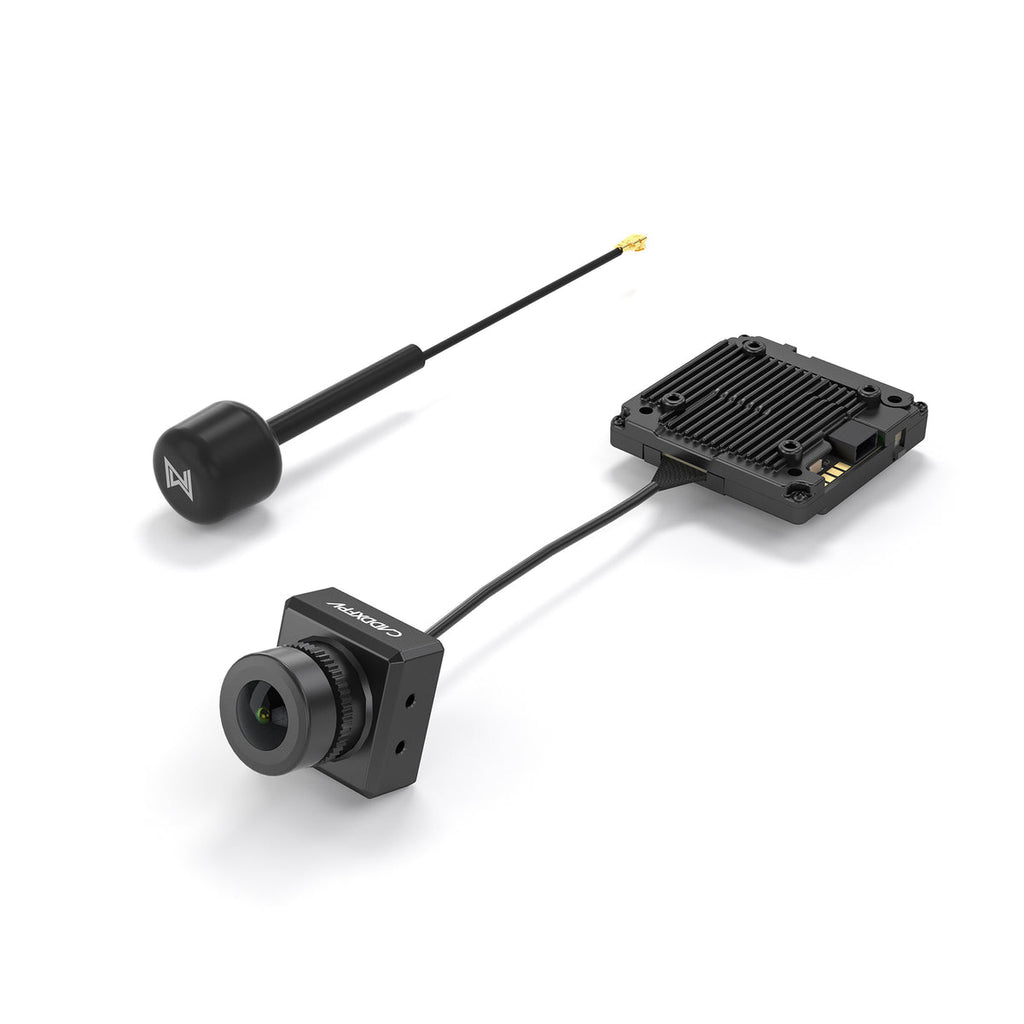

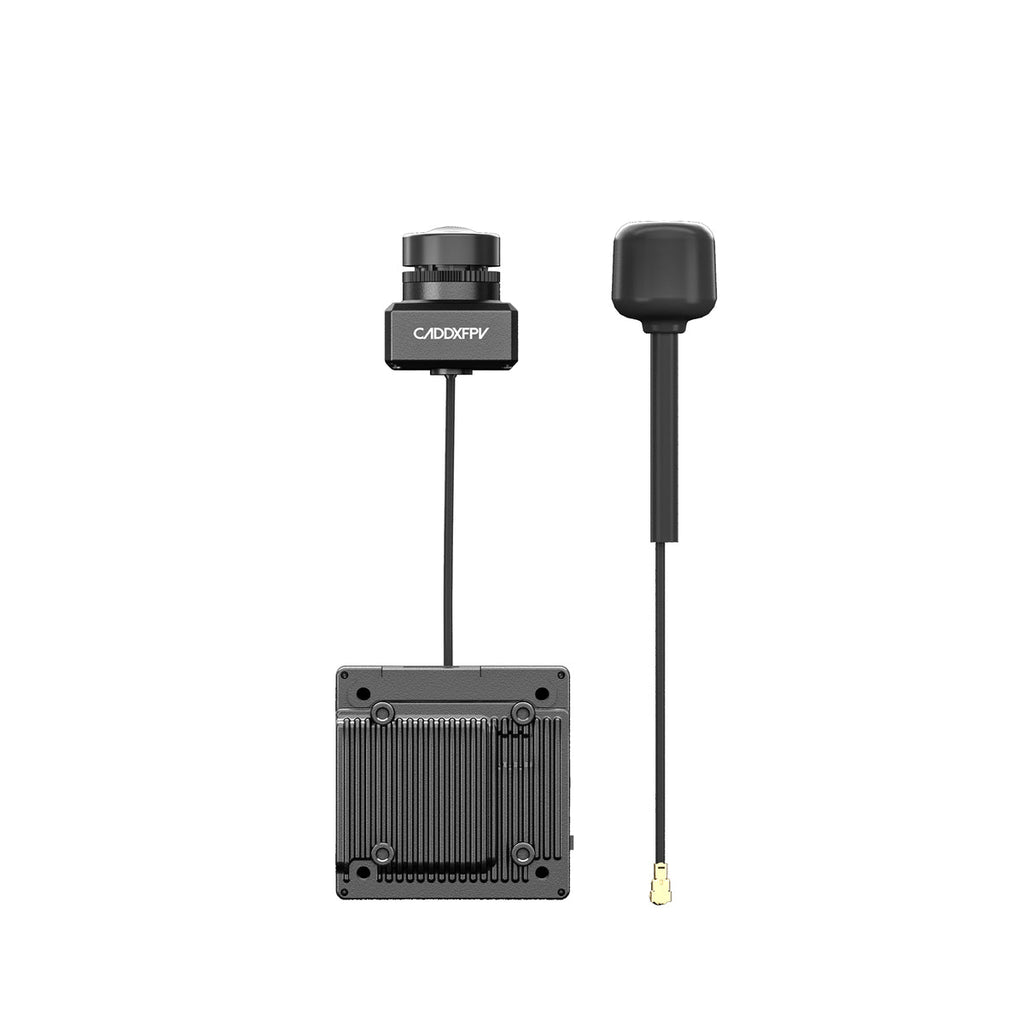

This Walksnail Avatar HD Kit V2 features built-in 32GB storage and Gyroflow support. The 2K/120fps/4:3 native sensor camera allows you to capture more of the surrounding scenery while flying the drone, resulting in more comprehensive and visually appealing images. The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with ultra-low latency. Other features include an updated PCB board, an updated outer shell, low latency of 22ms, and a 4Km range.
VIDEO: Walksnail Avatar HD Pro Kit + Avatar HD Kit
Features
- Optimized antenna base design and frequency button position for greater convenience
- The only native 4:3 high-definition sensor in the FPV industry
- Updated the design of the PCB board and outer shell
- The spare pad provides two power connection modes
- 2K pixel, 120fps, 4:3 native sensor
- 20*20mm mounting holes
- 160° wide-angle FOV
- F/2.0 Large Aperture
- 32g built-in storage
- Supports Gyroflow
- 1080P 120fps HD FPV
- Lightweight design
- GPS anti-jamming
- 22ms low latency
- Ranging Mode
- 4KM range
- 6V-25.2V
Specifications
AVATAR HD V2 CAMERA
- Resolution: 1080P/60fps; 720P/100fps; 720P/60fps;1080P/120fps compatibility; 1080P/100fps compatibility;
- Image Sensor: 1/3.2-Inch 4Mp 4:3sensor
- Min.Illumination: 0.001Lux
- Dimensions: 19*19*22mm
- Coaxial Cable: 140mm
- Shutter Rolling shutter
- Ratio: 4:3 native /16:9
- Gyroflow: supported
- Aperture: F2.0
- Lens: 2.1mm
- Weight: 7.2g
- FOV: 160°

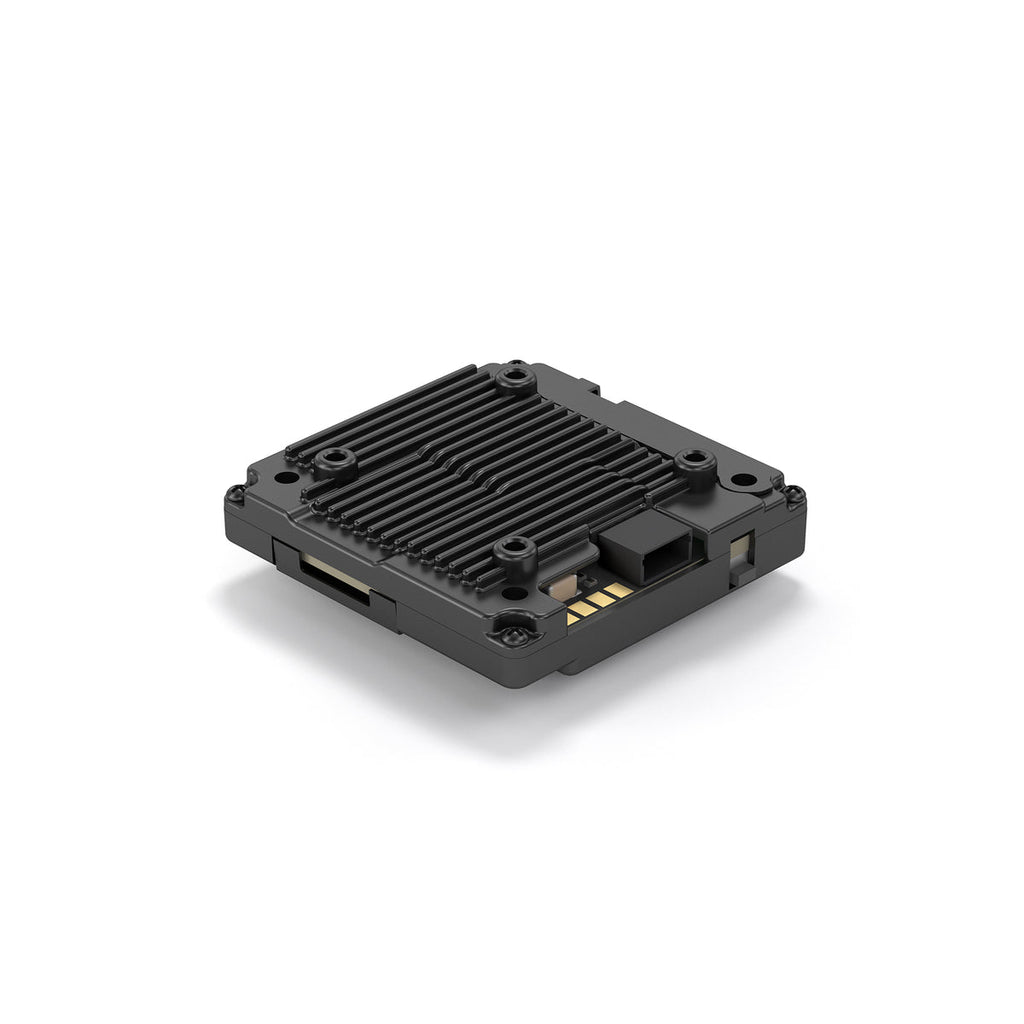

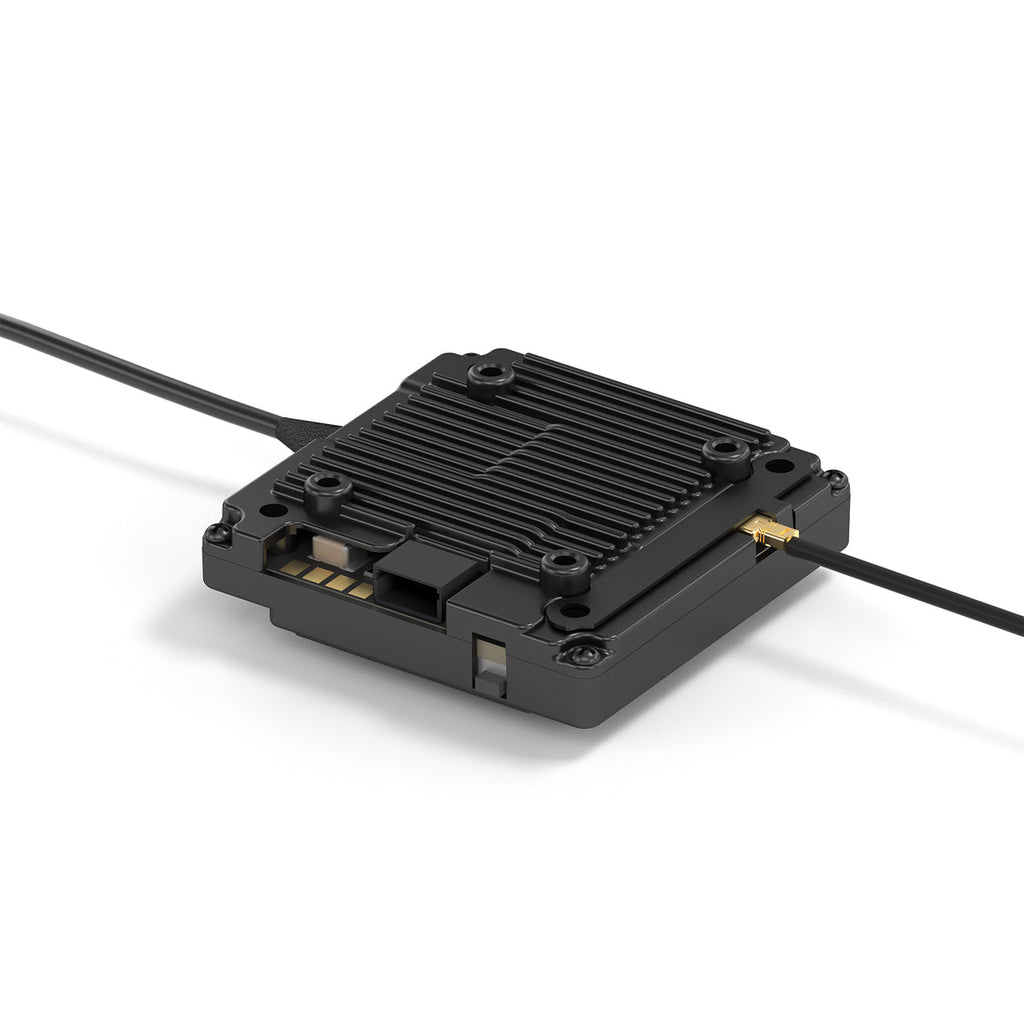

AVATAR V2 VTX
- Transmitter Power (EIRP: FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm
- Supported FC System: Betaflight; Inav; Fettec; ArduPilot;Kiss
- 1/O Interface: JST1.0*4(Power in)JST0.8*6(USB)
- Communication Frequency: 5.725-5.850GHz
- Mounting Holes: 25.5*25.5mm; 20*20mm
- Operating Temperature: -20-40℃
- Dimensions: 33.5*33.5*10.5mm
- Latency: Average delay 22ms
- Wide Power Input: 6V-25.2V
- Model: Avatar V2 module
- Recording: 1080p/720p
- OSD: Canvas mode
- Antenna: 1(IPEX)
- Storage: 32GB
- Weight: 17.6g
- Channels: 8

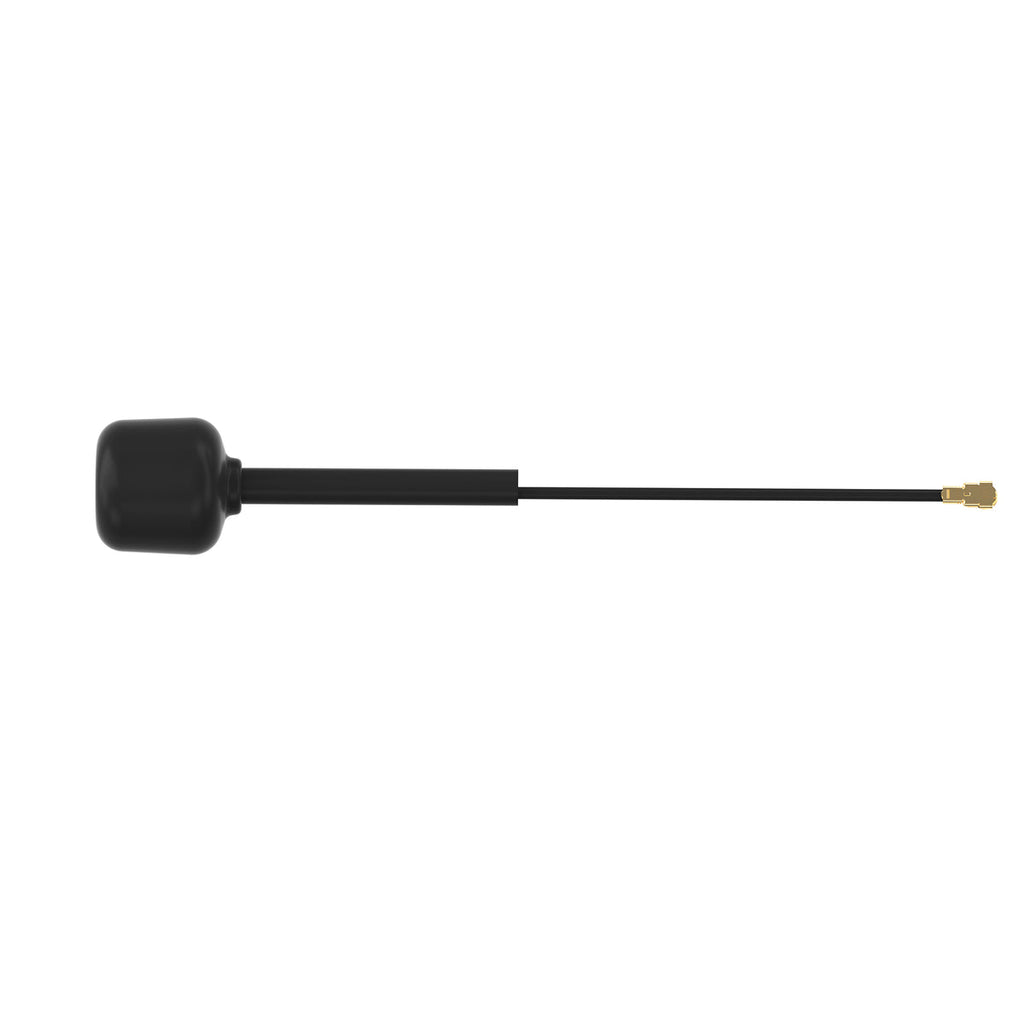

AVATAR V2 ANTENNA
- Frequency range: 5600MHz-6000MHz
- Size: R15 X 45mm(without cable)
- Input Impedance: 50Ω
- Polarization: LHCP
- Interface: IPEX-1
- Gain: 1.9dBi
- VSWR: ≤1.5
- Weight: 2g
Includes
- 1x Walksnail Avatar HD VTX V2 - 32GB w/ Gyro
- 1x Walksnail Avatar HD Camera V2
- 1x Walksnail Avatar Antenna V2
- 1x USB transfer extension cable
- 4x M2*5*0.5mm gasket
- 1x 4 Pin silicone cable
- 4x M2*14mm screws
- 8x M2*4mm screws
- 4x M2*5mm screws
- 4x M2*6mm screws
