Description
The Walksnail Avatar VRX transmits 1080P/60fps with industry-leading H.265 encoding technology, which can provide a minimum delay of 22ms and a maximum resolution of 1080p. Enjoy clear HD video to take your FPV experience to the next level!
Choose just the VRX or one of the combo kits which include the VTX and camera.
Features
- Lightweight Design - 83g
- Max transmission distance of more than 4km
- Supports 1080P 60FPS or 720P 100FPS
- Supports Betaflight Canvas Mode
- Compatible with Analog Goggles
- HDMI Out
Lightweight design, ultra-thin experience

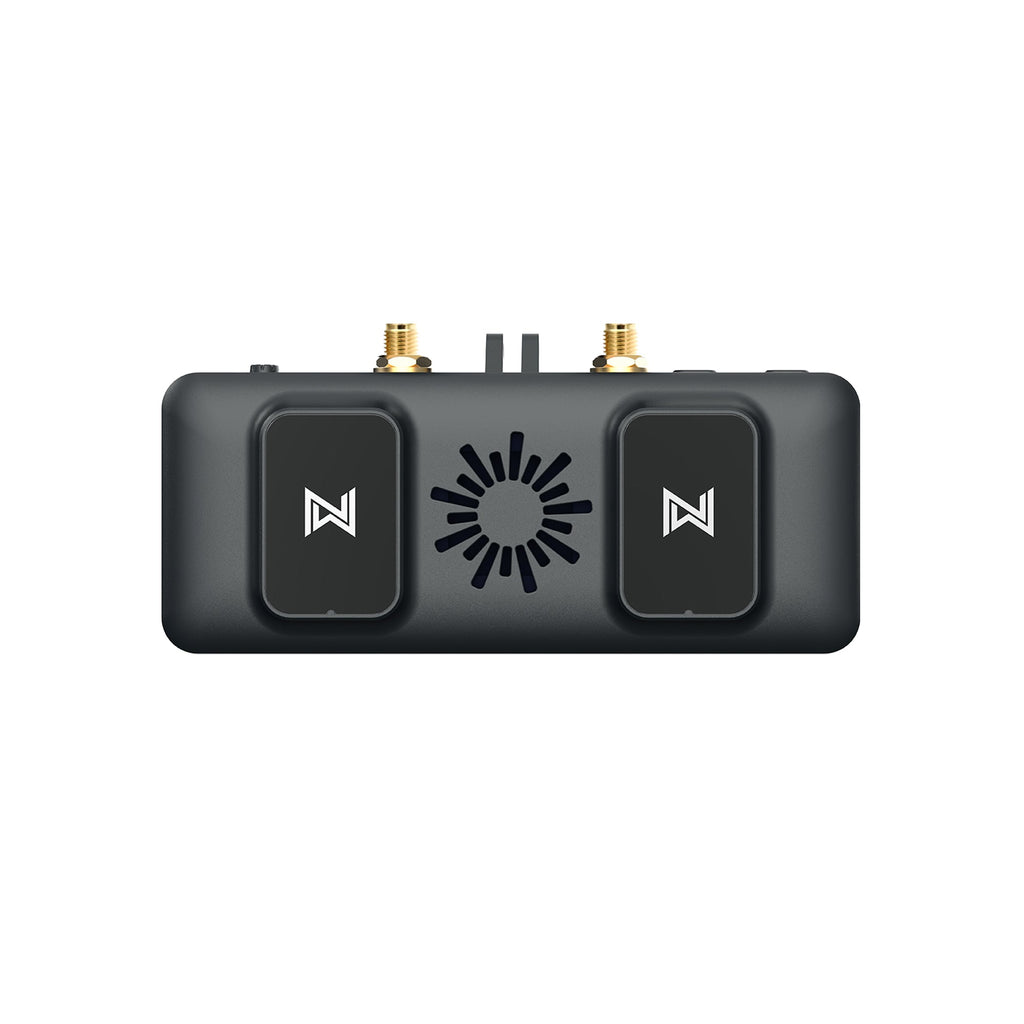

Walksnail VRX is only 83g and comes with 114*55*22mm size, easy to carry.
Walksnail VRX adopts a 4pcs antenna design, with 2pcs directional antennas with a maximum transmission distance of more than 4km
1080P/60FPS
Walksnail VRX adopts industry-leading H.265 encoding technology,
which can provide a minimum delay of 22ms and a maximum resolution of 1080p.
The HD picture quality takes you to experience the fun of flying a drone.
HDMI output ensures you enjoy uncompressed audio and video signals from the Walksnail HD system.
Canvas Mode
Supports betaflight full OSD display, supports betaflight, inav, kiss full osd display
you can easily adjust the parameters you want by remote control.
Specifications
AVATAR Camera
- Image Sensor: 1/2.7”
- Resolution: 1080P/60fps,720P/120fps,720P/60fps
- Ratio: 16/9 - 4/3
- Lens: 2.1mm
- FOV: 170°
- Aperture: F2.0
- Shutter Rolling shutter
- Min.Illumination: 0.001Lux
- Weight: 3.5g/6g
- Dimensions: 14*14*17mm/19*19*22mm
- Coaxial Cable: 90mm/140mm
VTX
- Communication Frequency: 5.725-5.850GHz
- Transmitter Power: (EIRP) FCC: <30dBm;CE:<14dBm;SRRC:<20dBm; MIC: <25dBm
- 1/O Interface: JST1.0*6(Power in)JST1.0*4(USB)
- Mounting Holes: 25.5*25.5mm
- Dimensions: 33*33*9.5mm
- Storage: 8G
- Recording: 1080p/720p
- Weight: 16g
- Operating Temperature: -20-40℃
- Channels: 8
- Wide Power Input: 6V-25.2V
- Supported FC System: Betaflight
- OSD: Canvas mode
- Latency: Average delay 22ms
- Antenna: 2(IPEX)
Googles Antenna
- Model: Red bird
- Polarization: LHCP
- Bandwidth: 5.6GHz-6.0GHZ
- Average Gain: 1.9dBi
- Radiation Efficiency: ≥97%
- VSWR: ≤1.3
- Cross-Polar Rejection: -15to-30dB
- Connector: RP-SMA
- Dimension: H24.8mm*R15.3mm
- Weight: 4.2g
Avatar HD VRX
- Communication Frequency: 5.725-5.850GHz
- TransmitterPower(EIRP): FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm
- I/O Interface: HDMI,microSD card slot, DC5.5*2.1mm
- HDMI output: 1080p60fps,720p100fps,720p60fps
- Power Input: 7-21V(2S-5S)
- SDCard: Support256G
- System: AvatarHDsystem
Includes
Avatar VRX
- Avatar VRX X1
- RedBird Antenna X2
- HDMI Cable X1
- 2in1DCPowerCable X1
Avatar HD Micro KIT
- Avatar HD Micro X1
- 4 Pin USB Cable X1
- 6 Pin Power Cable X1
- M2x3/4/5mm Screws X4
- M1.2x1.5mm Screws X2
Avatar HD Nano KIT
- Avatar HD Nano X1
- 4 Pin USB Cable X1
- 6 Pin Power Cable X1
- M2x3/4/5mm Screws X2
- M1.2x1.5mm Screws X2
- 14-19mm Bracket X1
Avatar Mini 1S KIT
- Avatar Mini 1S X1
- 4 Pin USB Cable X1
- 6 Pin Power Cable X1
- M2x3/4mm Screws X2
- M2x16mm Screws X4
- M2 Screw nut X4
- 2.1x3.4x1mm Gasket X5
Q&A
Q:Is VRX compatible with goggles from other products?
A:Compatible With Analog Goggles,HDMI Out(Our VRX module supports HDMI OUT, If you goggles support HDMI IN it will work fine)
Q:Do I need a set of goggles with a 1080p resolution or an 720p is enough?
A:VRX supports 720P\1080P
Q:Avatar HD Micro kit come with a 140mm cable between the VTX and camera?
A: yes
Q:does the Pre-sale unit fit 20x20 mount?
A:Our vtx is 25*25
Q:the difference between all 3 of the walksnail kits? What is the Avatar 1s vs avatar hd micro vs avatar HD nano?
A:
mini 1s kit
350mw, Power Input: 3.1V-5V, VTX Weight 6.8g
avatar HD micro/nano kit standard version
1200mw, Power Input: 6V-25.2V, VTX Weight: 16g
Q:Micro/Nano Camera difference?
A:
Weight：3.5g/6g
Dimensions：14*14*17mm/19*19*22mm
Coaxial Cable：90mm/140mm
