Description
About this product

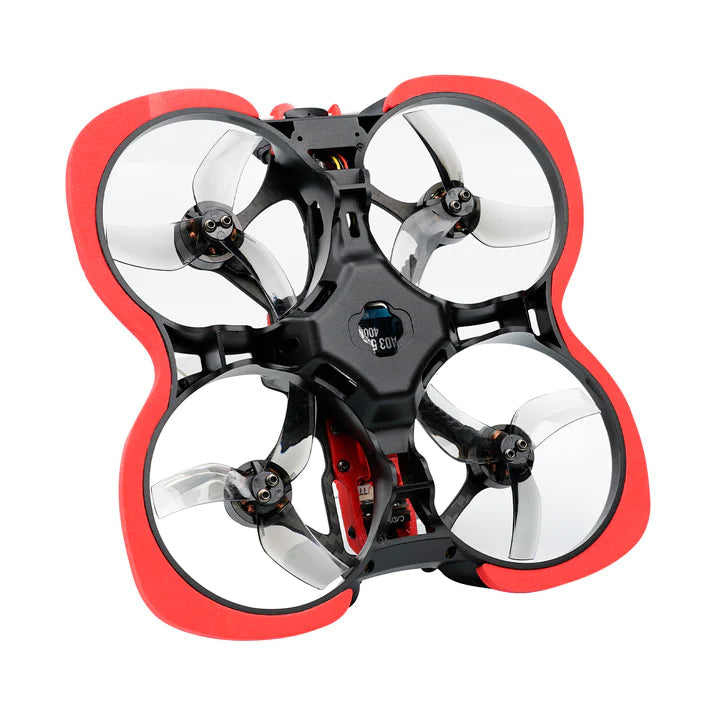

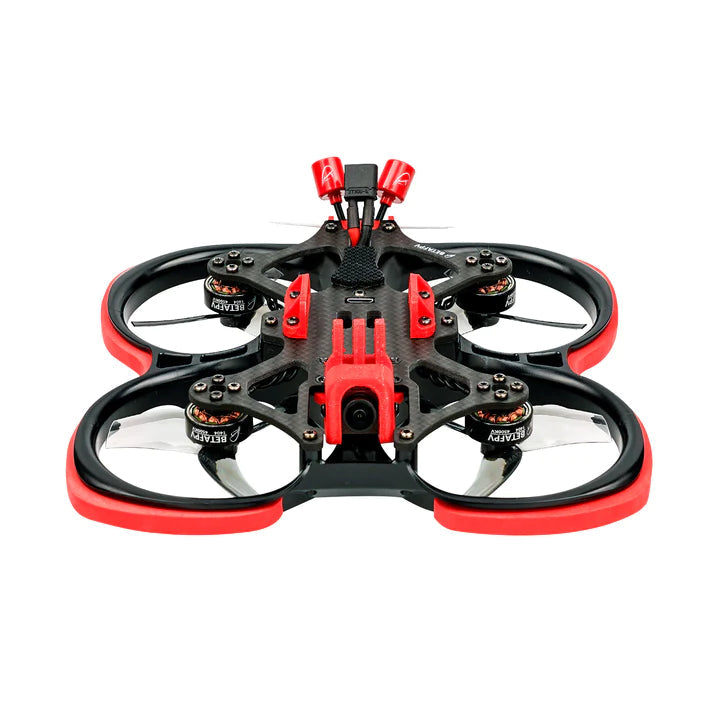

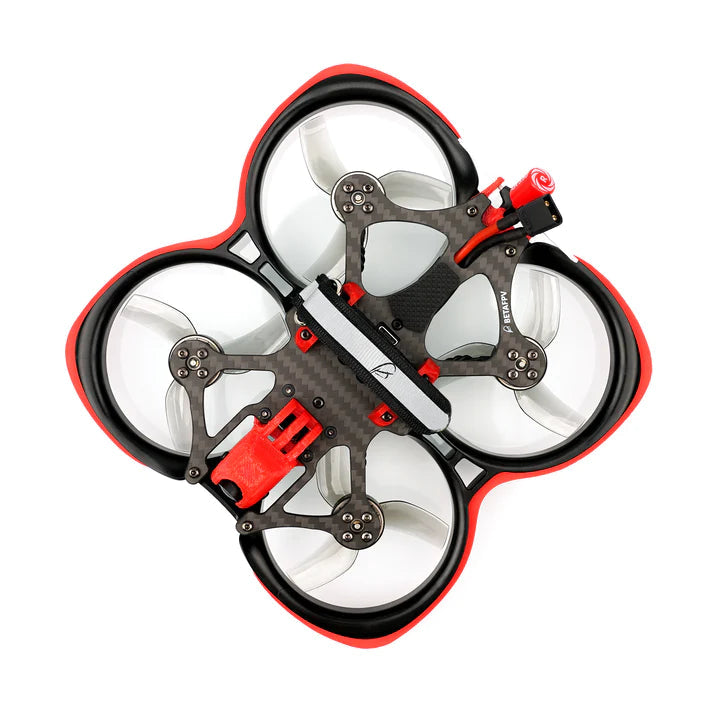

The Pavo25 Whoop Quadcopter is a 2.5-inch pusher drone developed by BETAFPV. The new frame design optimizes its structure to decrease complex components and only requires 6 screws to assemble the whoop duct and drone, which is convenient to build. Made of high-quality PA12 material, it features a strong injected mold frame for durable use. What's more, it supports carrying many FPV cameras available in the market for FPV shots. Also, it adopts the Caddy Baby Ratel 2 camera system.
Choose a Receiver:
- ExpressLRS 2.4GHz
- TBS Crossfire
Note: Batteries and SMO Camera are NOT included.
VIDEO: The New PAVO 25 FPV Drone is so Very Nice! Review
Features
- User-friendly designs. The USB port on the top of the frame makes it convenient to configure the quadcopter.
- Pavo25 whoop quadcopter features a rear LED with colorful lights, giving a cool visual performance in the dark.
- Colorful and excellent image with 720P/120FPS high frame rate video in Nebula Pro Nano camera.
- The Pavo25 whoop quadcopter adopts an innovative pusher frame with a duct design.

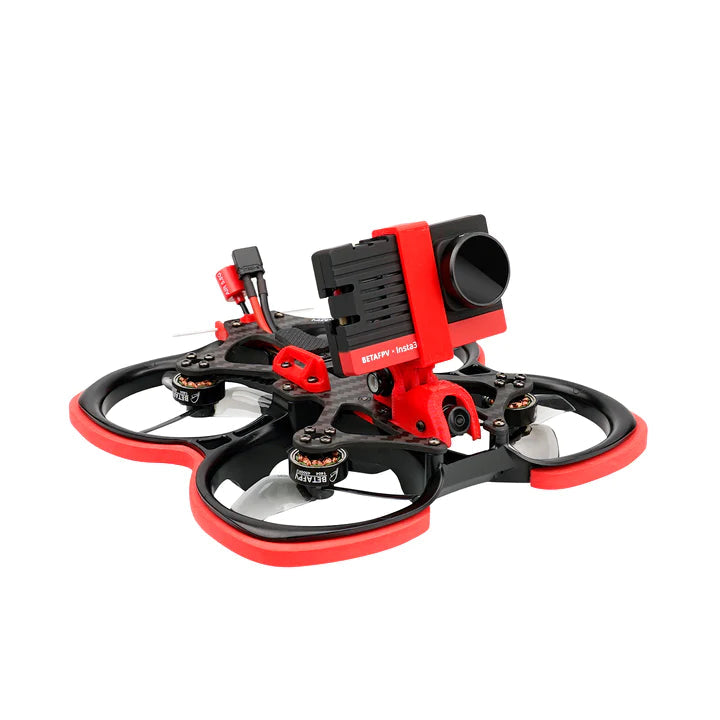

- Balanced layout for carrying an action camera like SMO 4K, or DJI Action 2.
- Only 6 screws to assemble the whoop duct and drone, convenient to build.
- Made of high-quality PA12 material and 2.5mm carbon fiber.
- Equipped with a CNC Vista Adapter.
CADDX BABY RATEL 2 AND AO3 VTX SYSTEM
Pavo25 Whoop Quadcopter Analog VTX version comes with a Caddx Baby Ratel2 camera that has a 1/18" inch starlight HDR sensor with 1200TVL resolution, and an A03 400mW OpenVTx video transmitter which supports SmartAudio&Tramp protocol with PIT/RCE/100/400mW adjustable output power. Therefore, pilots can customize the output power and frequency to explore more possibilities and have fun.
FC AND ESC
The Pavo25 whoop quadcopter is equipped with the Toothpick F405 AIO 20A FC V4 BMI270, it extremely reduces the weight while improving the ability of the ESC to continuous current 20A, and brings pilots more power to fly the Pavo25 quad!
MOTOR AND PROPS

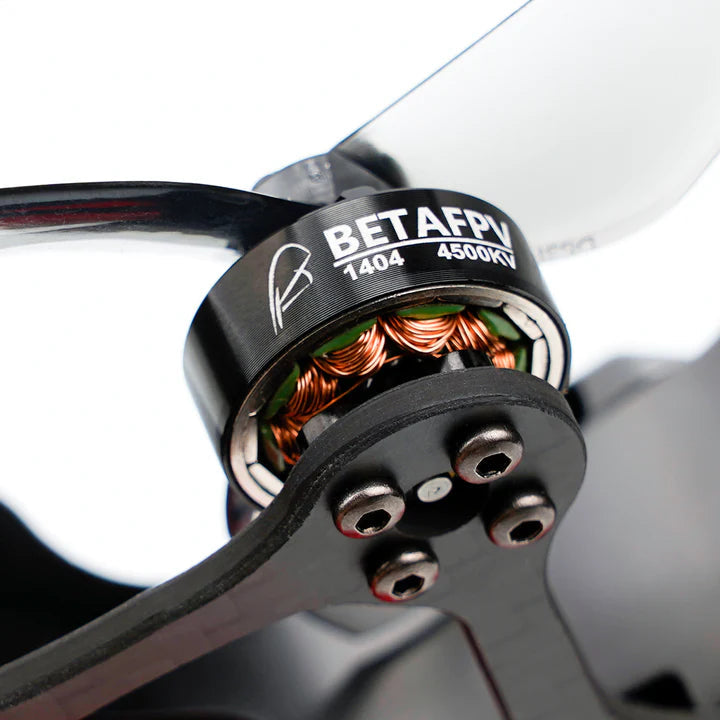

Gemfan D63 3-Blades Props is designed for inverted installation, and it brings pilots a smooth flight! It is more durable and more powerful and offers pilots a high-efficiency flight experience. Equipped with the 1404 4500KV Brushless motor, it brings stronger power and lower noise, which will give pilots an unprecedented flying experience.
Specifications
- Flight Time (Reference Only): 8.5 mins (Analog), using 4S 750mAh battery without an action camera

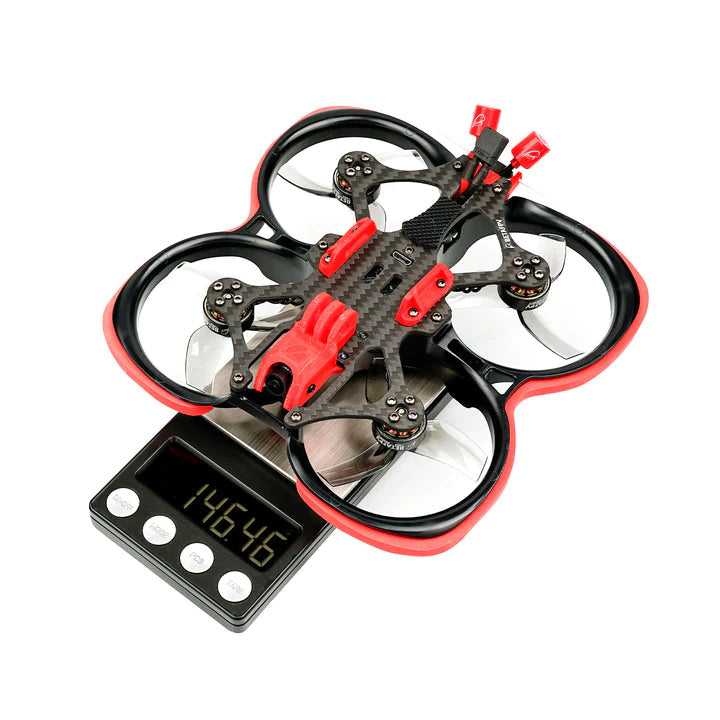

- Weight: 140g (Analog), Without battery and action camera
- Flight Controller: F405 AIO 20A Toothpick V4 BMI270
- VTX: Caddx Baby Ratel2+A03 400mW 5.8G (Analog)
- Receiver Version: ELRS 2.4G or TBS Crossfire
- Motor: 1404 4500KV Brushless motor
- Camera Adjustable Angle: 0°-50°
- Props: Gemfan D63-3B (Gray)
- Frame: Pavo25 Frame Kit
- Battery Connector: XT30
- Wheelbase: 108mm
IMPORTANT NOTES
- The actual flight time depends on the flight environment and the flight mode.
Recommended (Not Included)
- Battery: 4S 750/850mAh
- Action Camera: SMO 4K
Includes
- 1x BETAFPV Pavo25 2.5" CineWhoop Drone - Analog (Choose ELRS or TBS Crossfire)
- 4x Gemfan D63 (2CW+2CCW) 3-Blades Propellers
- 2x Spare EVA Foam Tape (Black)
- 1x Spare 180mm Battery Strap
- 2x Spare EVA Foam Tape (Red)
- 4x 3M Double-Sided Tapes
- 1x SMO4K Camera Mount
- 1x SMO4K Power Cable
- 1x M5 Anti-slip Nut
- 1x M5*18 Screws
- 10x M2*7 Screws
