Description

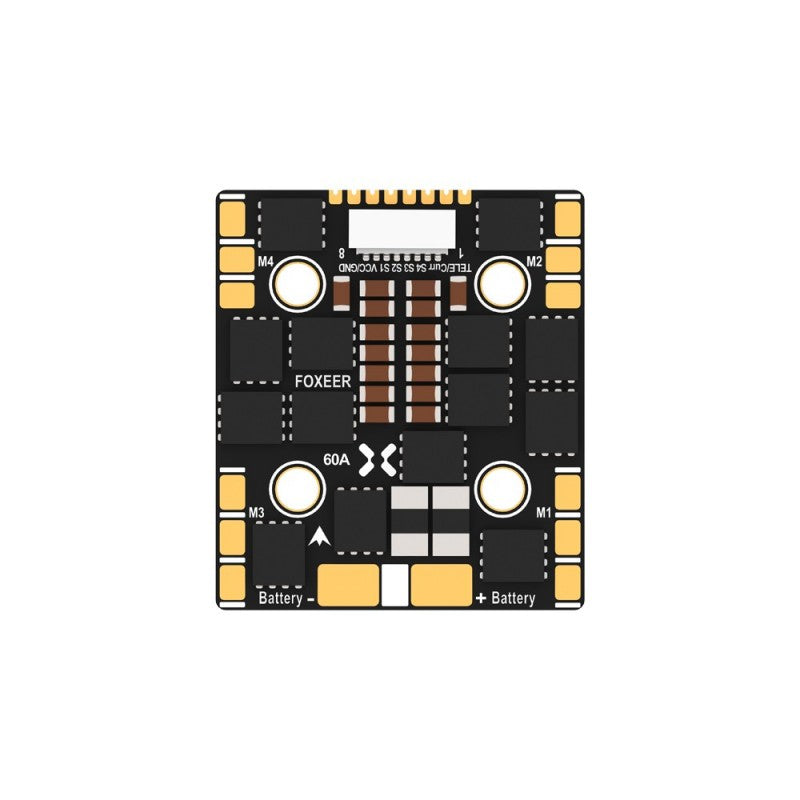

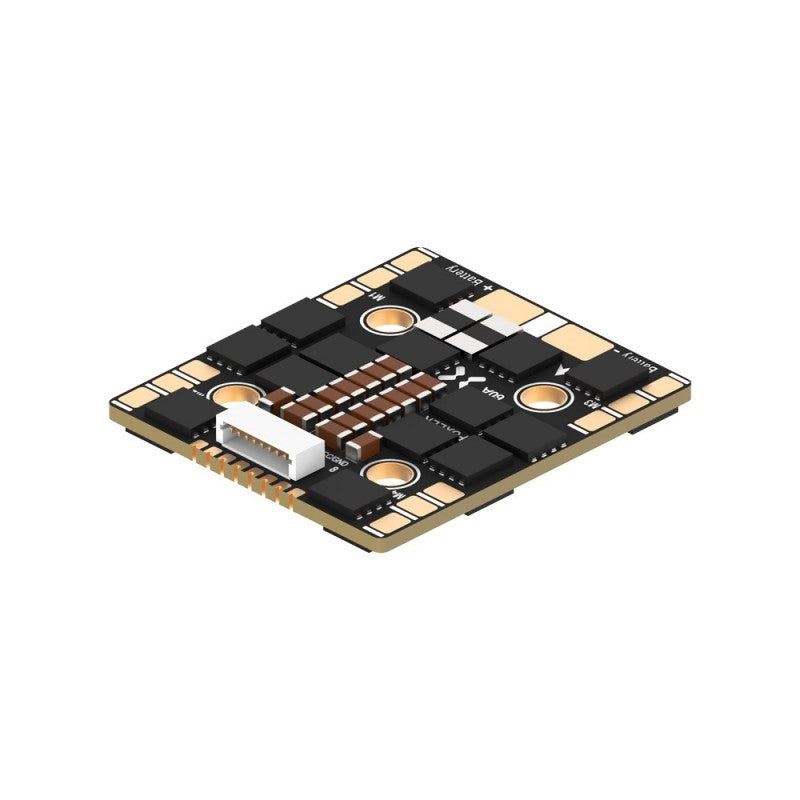

The Foxeer Slim Mini F4 Reaper 128K is the next evolution of the Reaper ESC series.
Thanks to the F4 processor, low heat generation, high-quality mosfets and excellent layout, this new version has a smoother flight performence and consistent power delivery.
Specifications
- Input Voltage: DC 9V~40V (3-8S Lipo)
- Max. Continuous Current: 60Ax4
- Max Burst Current: 100A*4
- Firmware: BLHeli_32
- Firmware Target: FOXEER_ReaperM4IN1_F4_60A_128_Multi_32_9
- Motor Protocol: DShot 150/ 300/ 600/ 1200 /MultiShot/ OneShot etc.
- BEC: No
- Current Sensor: Yes
- Mounting Dimensions: 20x20mm M3
- Dimensions: 36*41mm
- Weight: 13g
- Telemetry: Supported
- Working Temperature: -20℃ ~ +55℃
- Working Humidity: 20～95%
Includes
- 1x Foxeer Slim Mini Reaper F4 128K 32Bit 45A 3-6S 4in1 ESC - 20x20
- 1x AMASS XT60H Pigtail
- 1x 560uf 35V Capacitor
- 8 x Grommet
- 1 x ESC to FC Cable
