Description

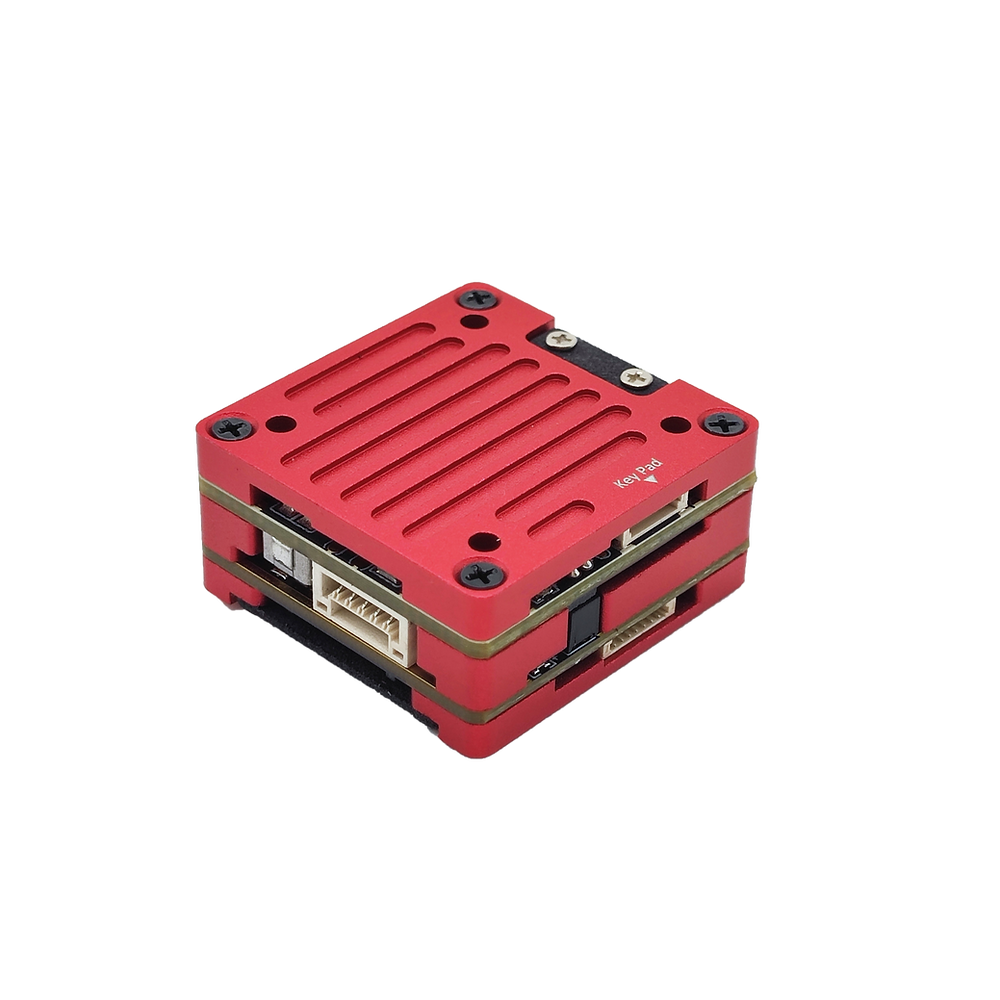

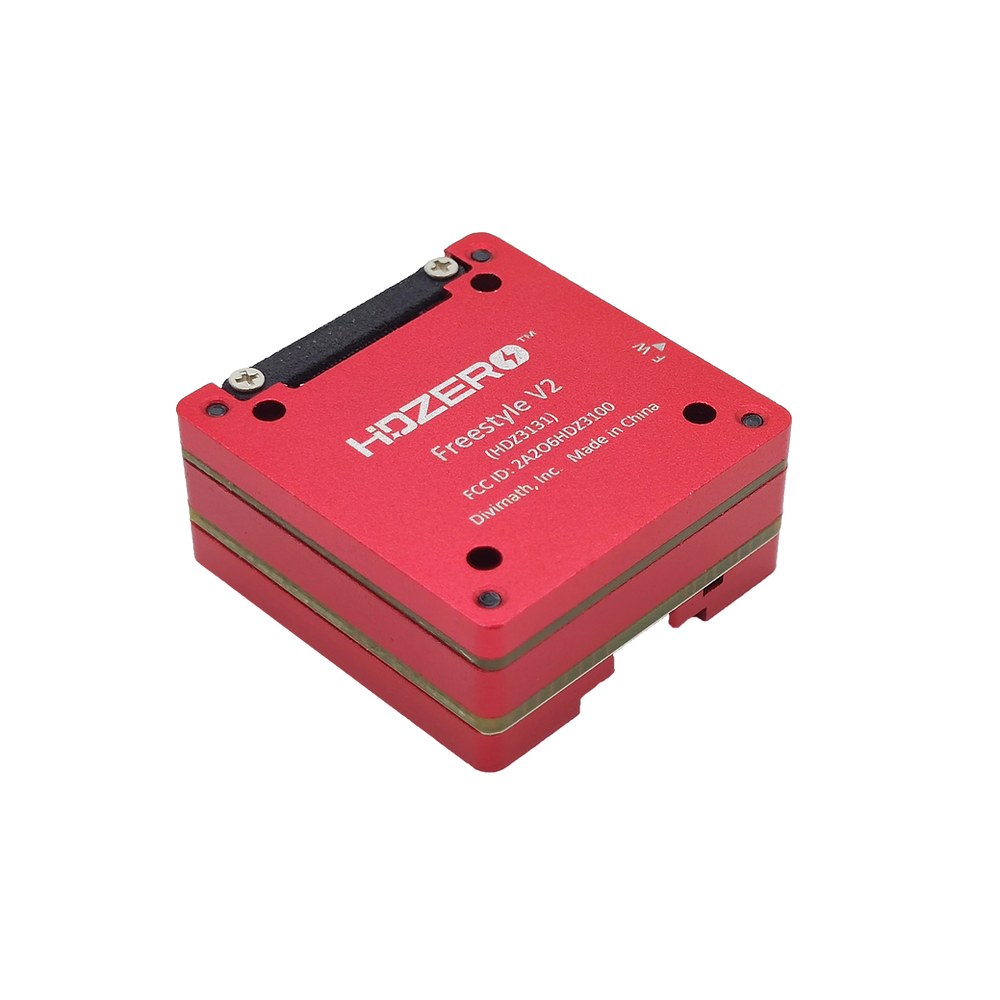

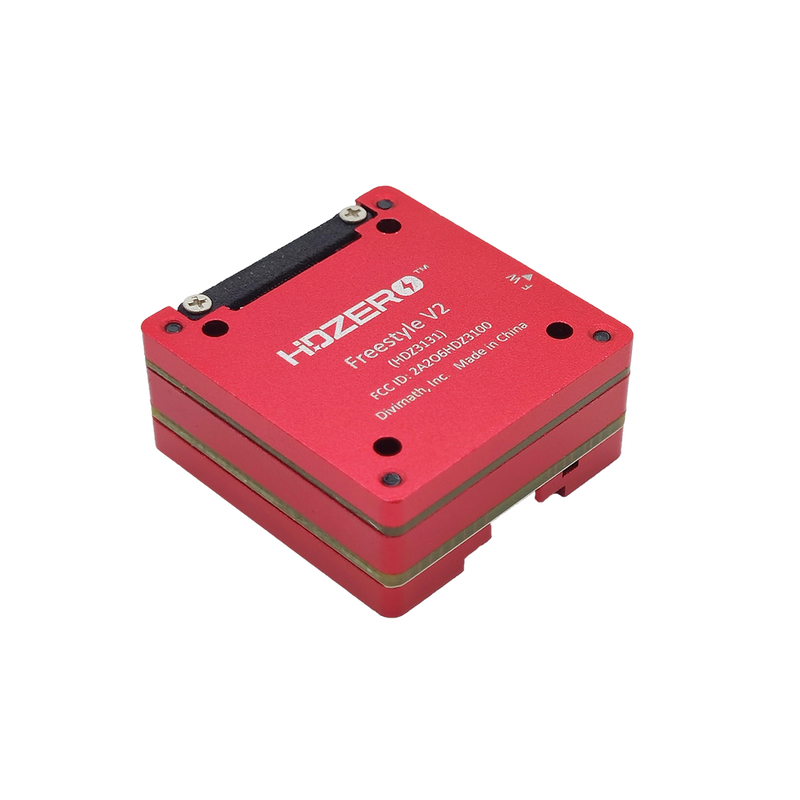

The HDZero Freestyle V2 VTX is a 2nd generation 5.8GHz digital video transmitter that can fit most of the 3.5-inch and 5-inch drones. The CNC case protects all the sockets well, providing durability, RF shielding, and improved signal integrity. A wire harness is included for solderless connection for power and MSP UART port. The included retention bar and screws secure the antenna and MIPI cable. The VTX supports 720p60,1080p30, 540p60 and 540p90 video modes, and has a maximum 1W RF output at the R1 channel if unlocked or authorized with a license or approval.
Features
- CNC case for socket protection, durability, RF shielding, and improved signal integrity
- Capable of up to 1W RF output on R1 channel with proper licensing or approval
- Included wire harness for solderless power and MSP UART port connection
- Supports multiple video modes: 720p60, 1080p30, 540p60, and 540p90
- Secured antenna and MIPI cable with retention bar and screws
- 2nd generation 5.8GHz digital video transmitter
- Compatible with 3.5-inch and 5-inch drones
Specifications
- Operating Temperature: 32˚F-104˚F (0˚C-40˚C)
- Operating Frequency: 5.725-5.850GHz
- Mounting Pattern: 20x20mm M2 holes
- Transmitter Power: 25mW, 200mW
- Model: HDZero Freestyle V2 VTX
- Antenna Interface: Secured U.FL
- Power Consumption: 6-15W
- Manufacturer: Divimath, Inc
- Dimensions: 29x30x14mm
- MSP Canvas Mode: Yes
- Video In: Secured MIPI
- Input Power: 7-25V
- SmartAudio: Yes
- Weight: 22.3 g
Includes
- 1x HDZero Freestyle V2 Video Transmitter
- 1x M1.4 x 2mm Plastic Bar for Mipi Cable with screws
- 1x M1.4 x 8mm Plastic Bar for U.FL with screws
- 1x 29 x 30 x 1mm Double Sided Tape
- 1x Power Cable
- 1x SA Cable
